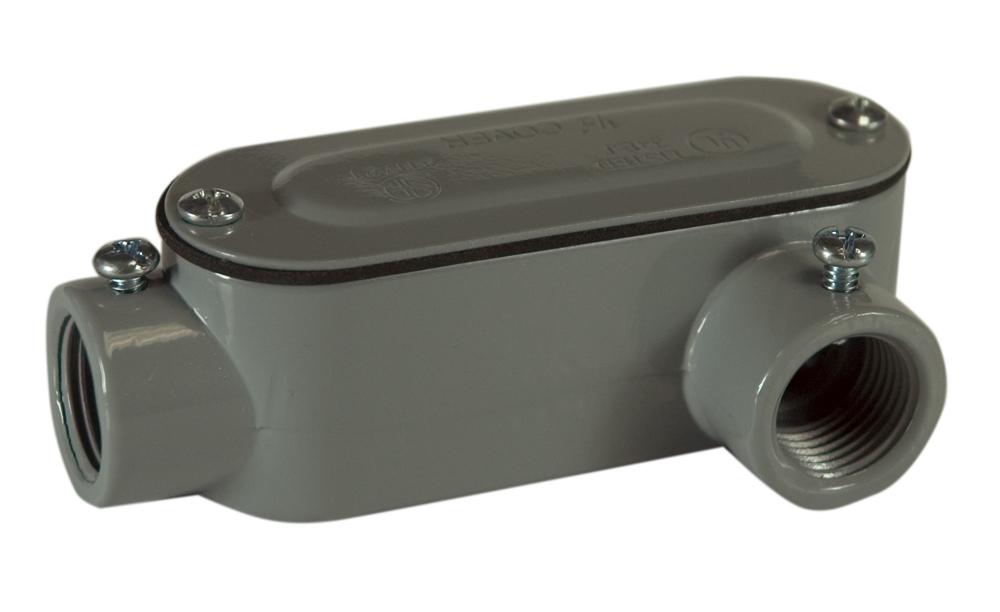

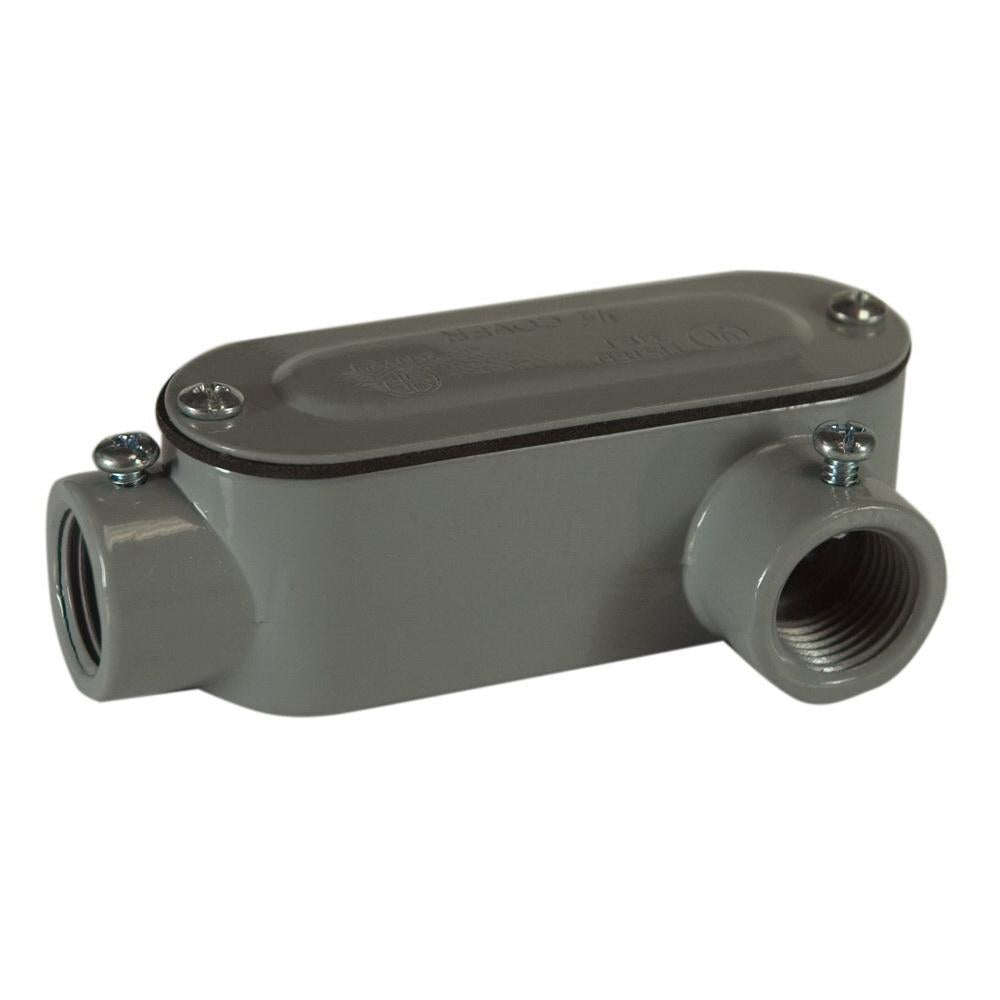

Topaz LL6SSCG LL Type Combo Conduit Body 2 inches EMT & Rigid

Product Description

The Topaz LL6SSCG LL Type Combo Conduit Body is made from corrosion-resistant aluminum. It features a hub on one end and one on the left side for easy access for splicing and changing conduit direction. The domed cover allows additional wiring space, and the watertight gasket ensures weatherproof installations. It is UL listed and available in sizes from 1/2" to 2".

• Manufactured from corrosion resistant aluminum
• Provides easy access for splicing
• Roomy interior allows for maximum wiring space

Product Highlights

The Topaz LL6SSCG is an EMT and Rigid combo LL type conduit body with cover and gasket.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: LL6SSCG

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: LL6SSCG
• Connection Type: FNPT
• Finish: Powder Coated
• Hub Size: 2 in
• Material: Aluminum
• Mounting Type: Wall
• Number of Hubs: 2
• Type: EMT and Rigid Combination Type LL
• Standard Approval: CSA Certified|cULus File No. E195124|Federal Specification No. A-A-50552|Military Specification No. W-F-406D/408D/406E/W-S-610D|NEMA/ANSI FB-1|UL 514B/File No. E170258
• Application: For use with rigid/EMT/IMC conduit, to provide access to conductors for pulling, splicing and maintece, suitable for use in concrete and wet locations
• Manufacturer: Topaz
• Manufacturer Part Number: LL6SSCG
