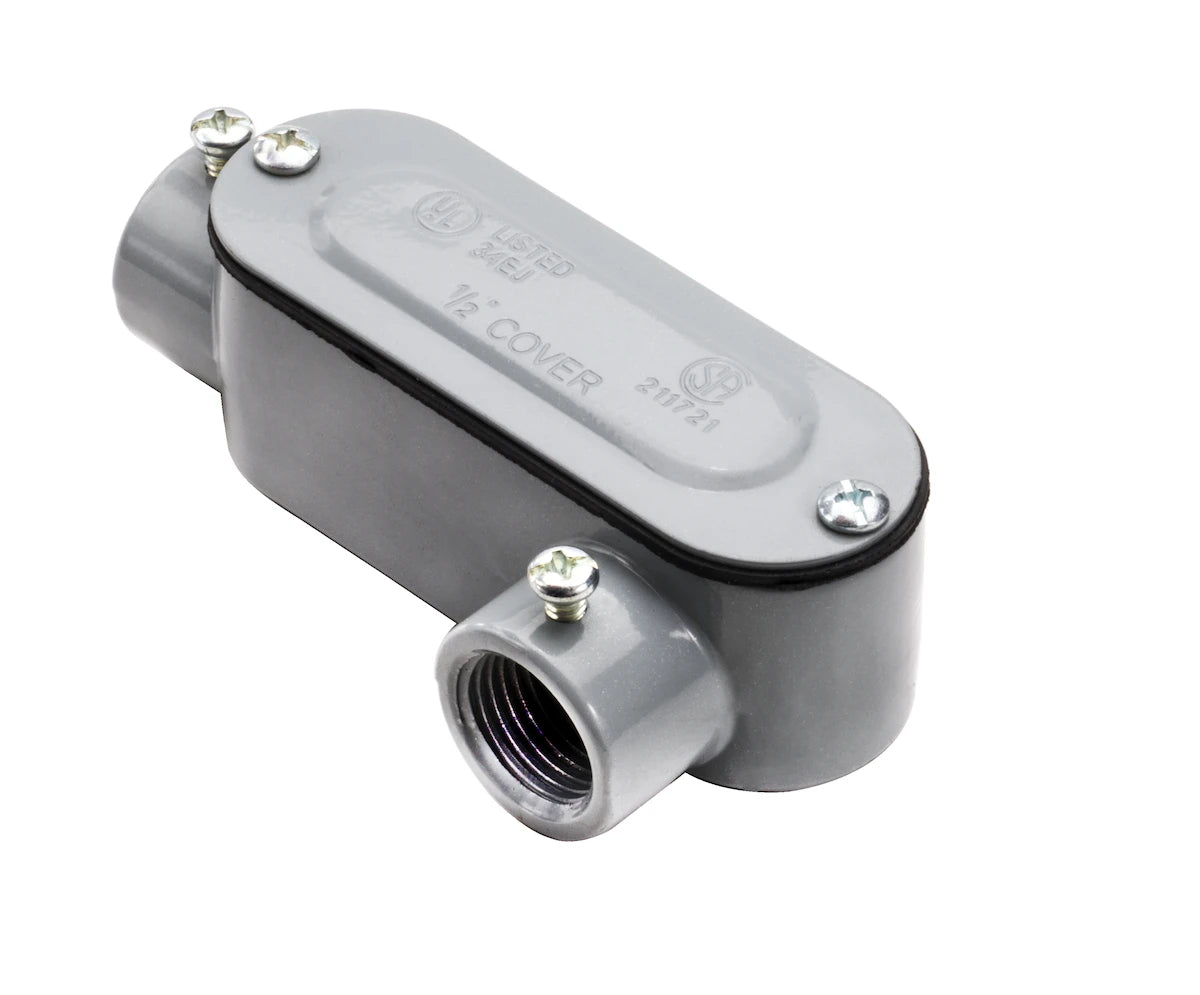

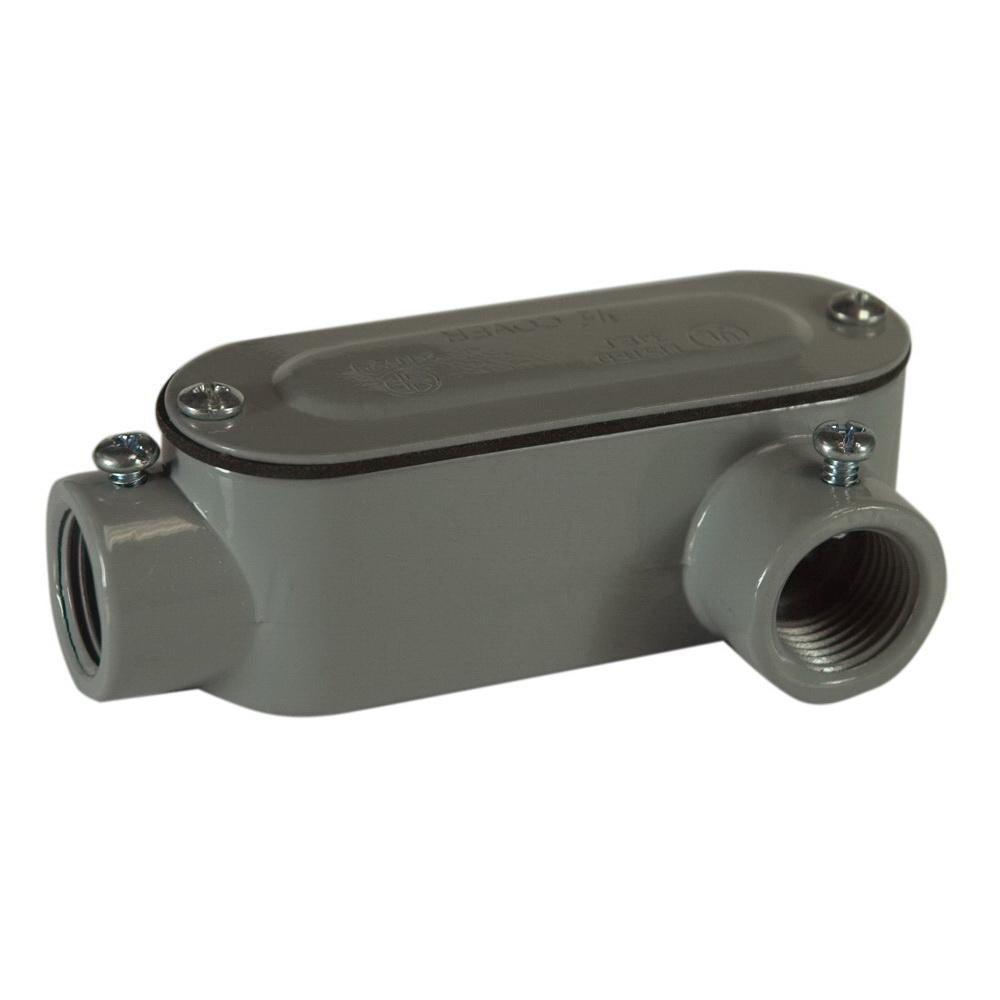

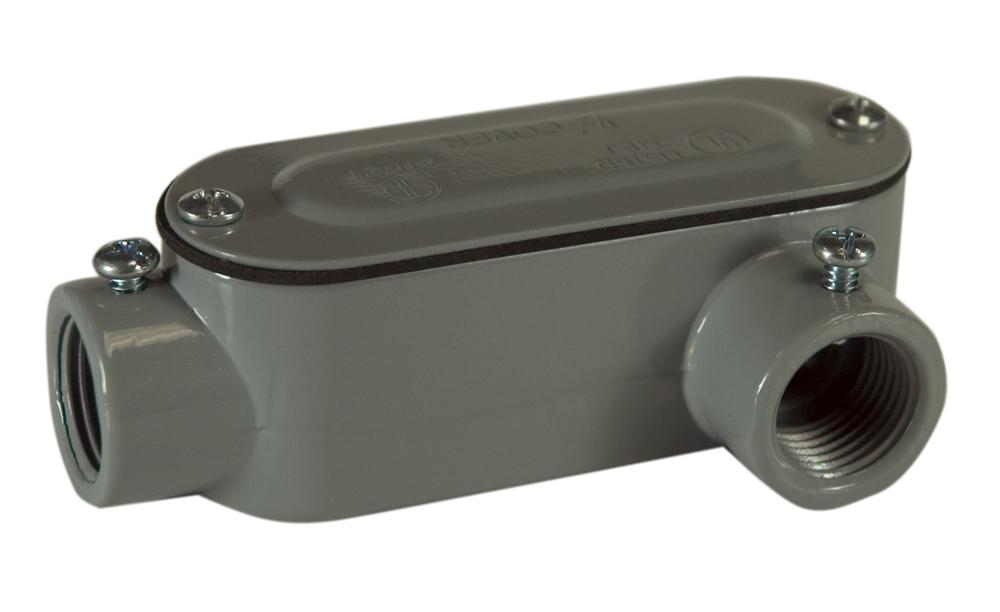

Topaz LL4SSCG LL Type Combo Conduit Body 1-1/4 inches

Product Description

The Topaz LL4SSCG LL Type Combo Conduit Body is made from die-cast aluminum with a 1-1/4" hub size. It provides easy access for splicing and can correct and change the direction of conduit runs. The domed cover allows for additional wiring space, and the watertight gasket ensures weatherproof installations.

• LL Type Combo Conduit Body
• Hub Size-1-1/4"
• Die Cast Aluminum

Product Highlights

The Topaz LL4SSCG is suitable for use with rigid/EMT/IMC conduit, to provide access to conductors for pulling, splicing and maintenance, and is suitable for use in concrete and wet locations.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: LL4SSCG
• Country of Origin: China

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: LL4SSCG
• Length: 8.22"
• Width: 3.40"
• Height: 2.50"
• Die Cast Aluminum: Die Cast Aluminum
• For Use With-Rigid/EMT/IMC Conduit: For Use With-Rigid/EMT/IMC Conduit
• Product Code: LL4SSCG
• Manufacturer Part Number: LL4SSCG
• Item UPC: 751338837775
• Manufacturer: Topaz
• Product Name: Southwire TOPAZ 1-1/4 Inch EMT And Rigid Conduit Body Threaded LL Type With Cover And Gasket (LL4SSCG)
• Brand: Southwire
• SKU: LL4SSCG
• Mfr. Part Number: LL4SSCG
• UPC Code: #751338837775
• Connection Type: FNPT
• Dimensions: 8.22 in L x 3.4 in W x 2.5 in H
• Finish: Powder Coated
• Hub Size: 1-1/4 in
• Material: Aluminum
• Mounting Type: Wall
• Number of Hubs: 2
• Type: EMT and Rigid Combination Type LL
• Standard Approval: CSA Certified|cULus File No. E195124|Federal Specification No. A-A-50552|Military Specification No. W-F-406D/408D/406E/W-S-610D|NEMA/ANSI FB-1|UL 514B/File No. E170258
• Application: For use with rigid/EMT/IMC conduit, to provide access to conductors for pulling, splicing and maintece, suitable for use in concrete and wet locations
