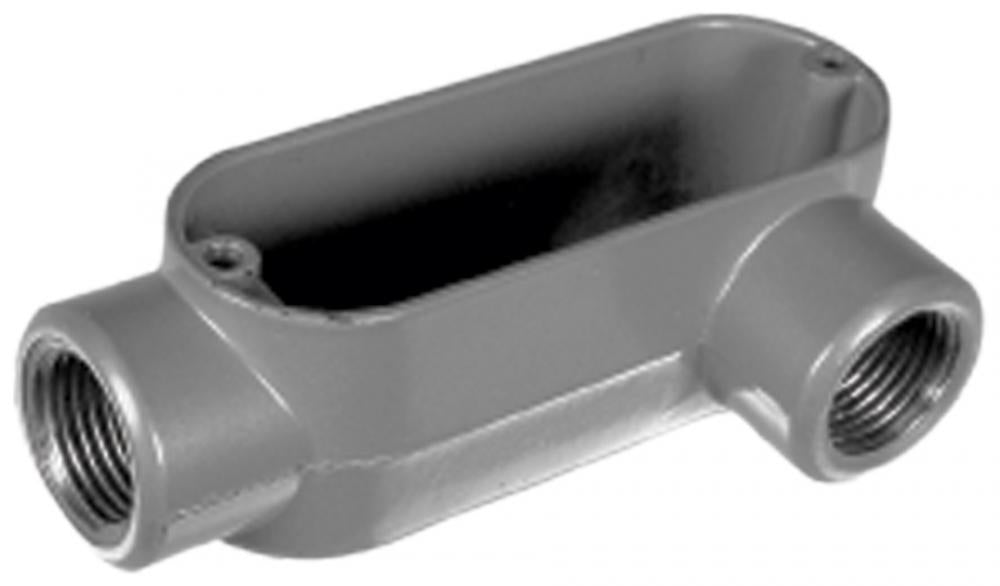

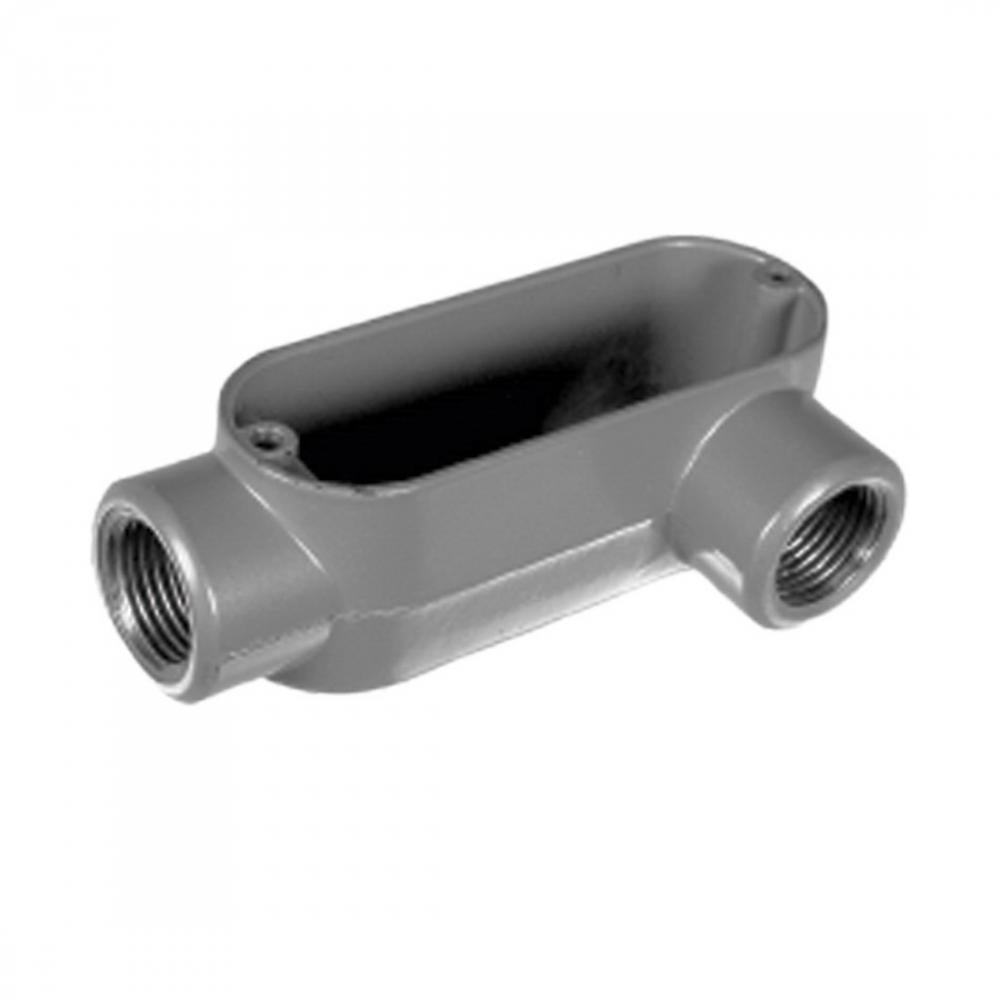

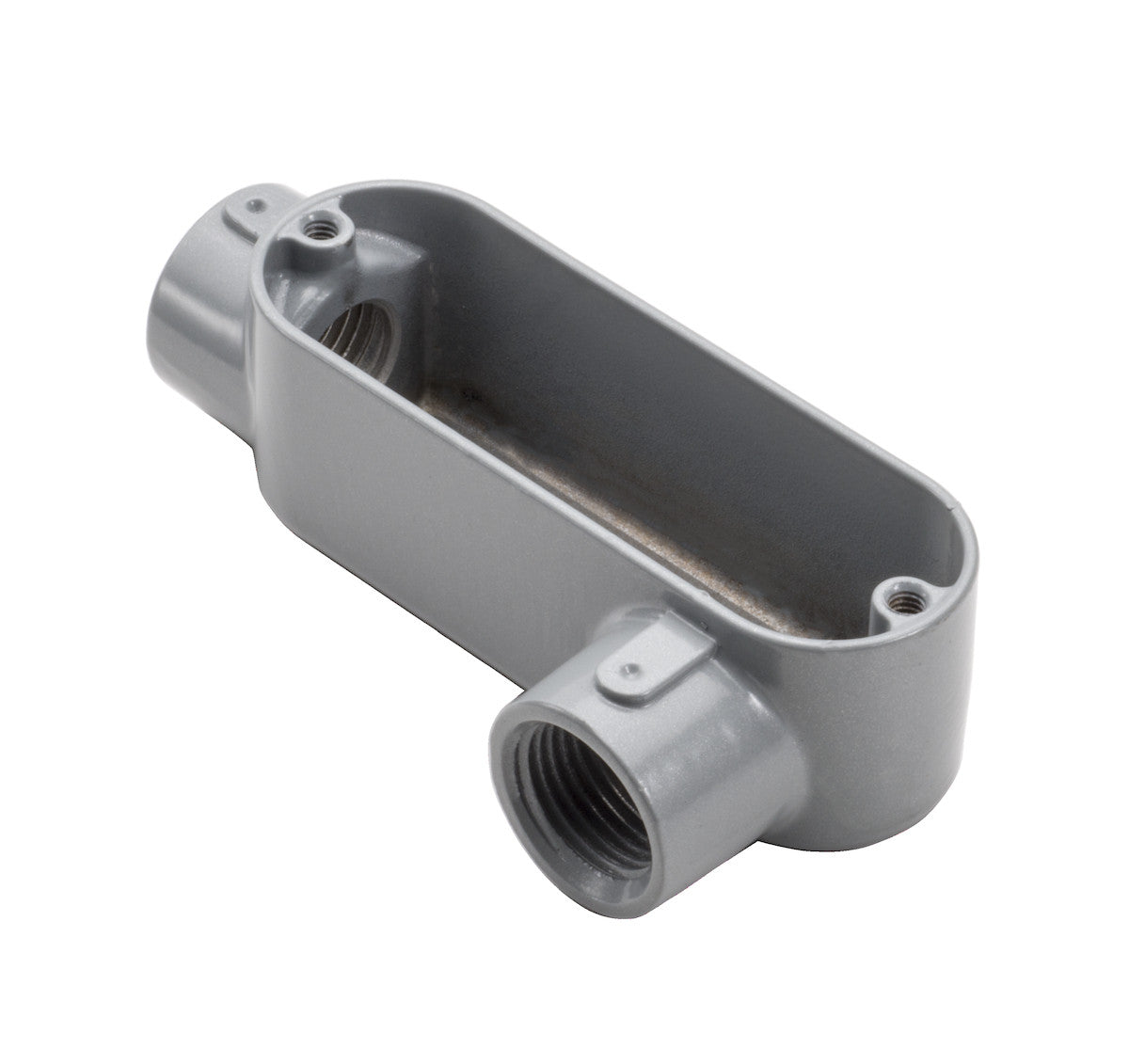

Topaz LL3 LL Type Conduit Body, Die Cast Aluminum, Wall Mount, Hub Size-1 inches

Product Description

The Topaz LL3 LL Type Conduit Body is manufactured from copper-free aluminum. It is available in sizes from 1/2" to 4". The LL type conduit bodies permit 90° left bends in conduit systems, enable splicing, and can correct and change the direction of conduit runs. It is UL listed.

• LL Type Conduit Body
• Hub Size-1"
• Die Cast Aluminum

Product Highlights

The Topaz LL3 is for use with rigid conduit, to provide access to conductors for pulling, splicing and maintenance, suitable for use in concrete, wet locations

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: LL3
• Country of Origin: USA

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: LL3
• Hub Size: 1
• Length: 6.0
• Width: 2.650"
• Height: 1.900"
• Mounting Type: Wall
• Material: Die Cast Aluminum
• Application: For use with rigid conduit, to provide access to conductors for pulling, splicing and maintenance, suitable for use in concrete, wet locations
• Connection Type: FNPT
• Country: USA
• Finish: Powder Coated
• Number of Hubs: 2
• Standard/Approvals: ARRA, Buy American Act, RoHS Compliant, UL 514B, UL File No. E170258, cULus File No. E195124, CSA Certified, Federal Specification No. A-A-50552, NEMA/ANSI FB-1, Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Type: Type LL
