Topaz LL1SSCG ll type combo conduit body 1/2 inches replacement ll1sscg

Product Description

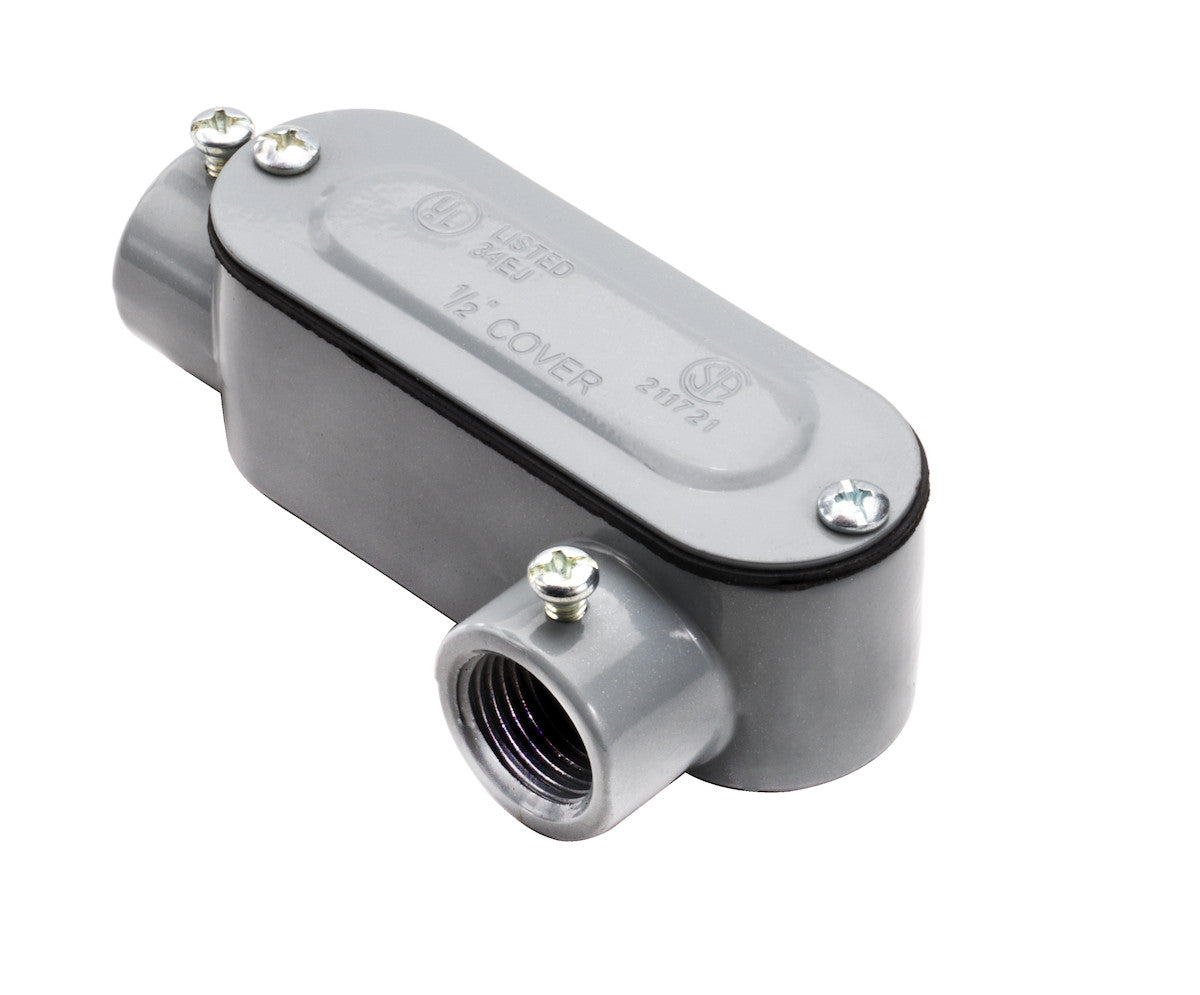

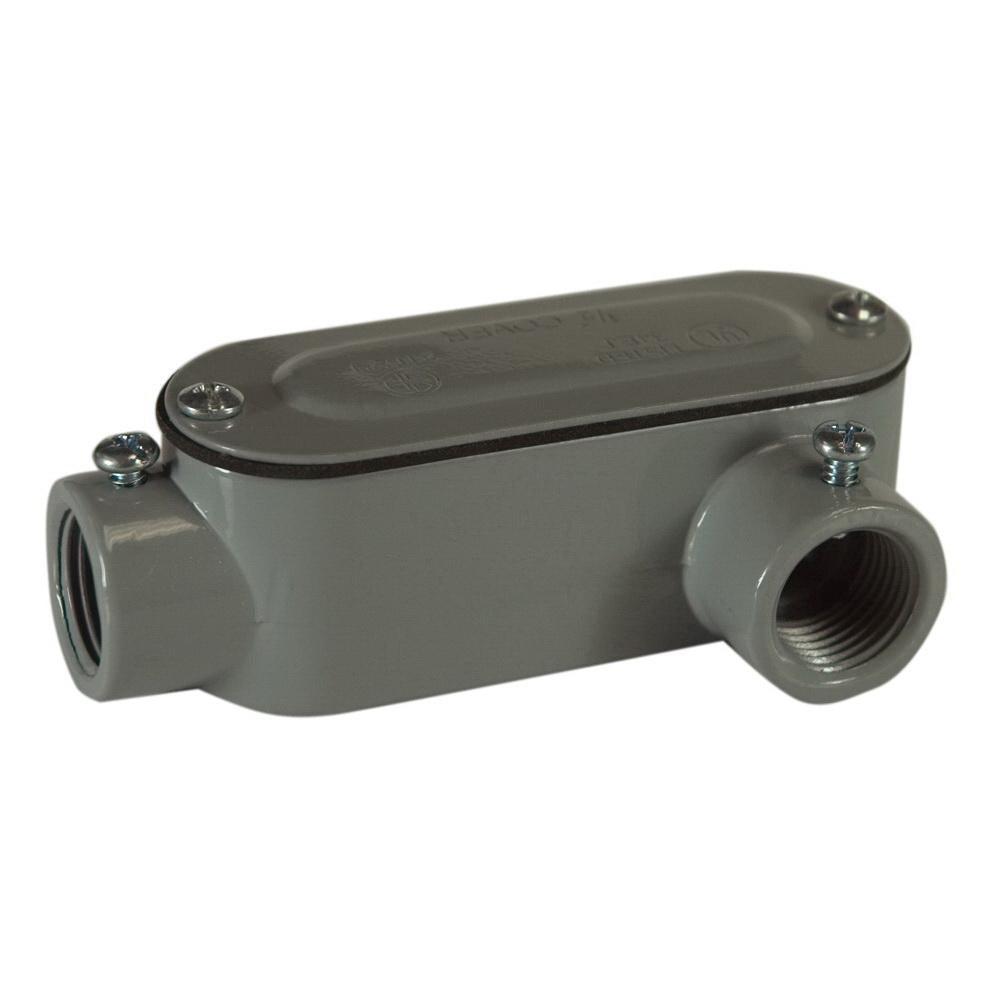

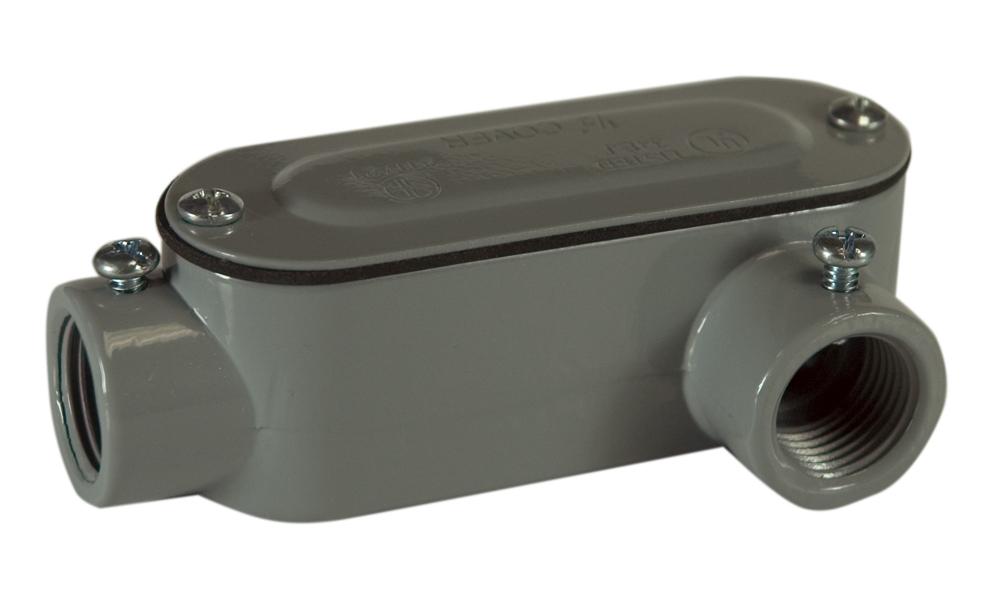

The Topaz LL1SSCG LL Type Combo Conduit Body is made from corrosion-resistant aluminum with a 1/2" hub size. This EMT and rigid combo LL type conduit body includes a cover and gasket. It provides easy access for splicing and can correct and change the direction of conduit runs. Its domed cover allows for additional wiring space.

• LL Type Combo Conduit Body, Hub Size-1/2"
• Manufactured from corrosion resistant aluminum
• For Use With-Rigid/EMT/IMC Conduit

Product Highlights

The Topaz LL1SSCG conduit body features a roomy interior for wiring space and smooth, rounded integral bushings for conductor insulation. It offers excellent ground continuity and is UL listed.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: LL1SSCG

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: LL1SSCG
• Connection Type: FNPT
• Finish: Powder Coated
• Hub Size: 1/2 in
• Material: Aluminum
• Mounting Type: Wall
• Number of Hubs: 2
• Type: EMT and Rigid Combination Type LL
• Standard Approval: CSA Certified|cULus File No. E195124|Federal Specification No. A-A-50552|Military Specification No. W-F-406D/408D/406E/W-S-610D|NEMA/ANSI FB-1|UL 514B/File No. E170258
• Application: For use with rigid/EMT/IMC conduit, to provide access to conductors for pulling, splicing and maintece, suitable for use in concrete and wet locations
• Manufacturer Part Number: LL1SSCG
• Item UPC: 751338837744
• Manufacturer: Topaz
• Our Part#: LL1SSCG-TZ
