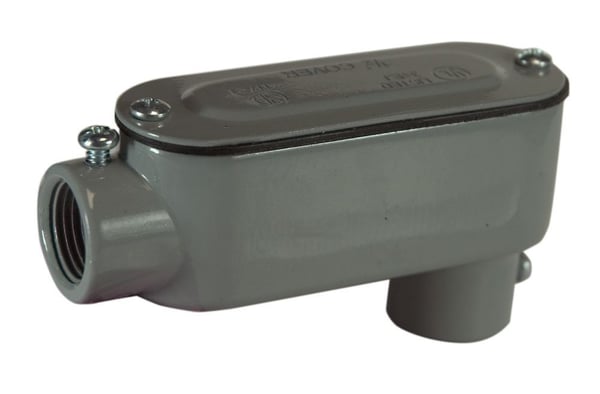

Topaz LB6SSCG lb type combo conduit body die cast aluminum 2 inches lb6sscg

Product Description

The Topaz LB6SSCG LB Type Combo Conduit Body features corrosion-resistant aluminum construction. This LB type conduit body has a hub on one end and one on the back, providing easy access for splicing and changes in conduit direction. The domed cover allows additional wiring space, and the watertight gasket ensures weatherproof installations.

• Features naturally corrosion resistant aluminum construction
• Provides easy access for splicing and can correct and change direction of conduit runs
• Roomy interior allows for maximum wiring space

Product Highlights

The Topaz LB6SSCG is UL listed and suitable for use with rigid/EMT/IMC conduit, providing access to conductors for pulling, splicing, and maintenance.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: LB6SSCG

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: LB6SSCG
• Type: EMT and Rigid Combination Type LB
• Application: For use with rigid/EMT/IMC conduit, to provide access to conductors for pulling, splicing and maintenance, suitable for use in concrete and wet locations
• Standard & Approvals: CSA Certified, Federal Specification No. A-A-50552, Military Specification No. W-F-406D/408D/406E/W-S-610D, NEMA/ANSI FB-1, UL 514B/File No. E170258
• Connection Type: FNPT
• Finish: Powder Coated
• Hub Size: 2 in
• Material: Aluminum
• Mounting Type: Wall
• Number of Hubs: 2
• Includes: Steel Screw
• Item UPC: 751338837737
• Manufacturer: Topaz
• Manufacturer Part Number: LB6SSCG
• Our Part#: LB6SSCG-TZ
• For Use With: Rigid/EMT/IMC Conduit
