Topaz LB2G7 LB Type Conduit Body 3/4 Inch

Product Description

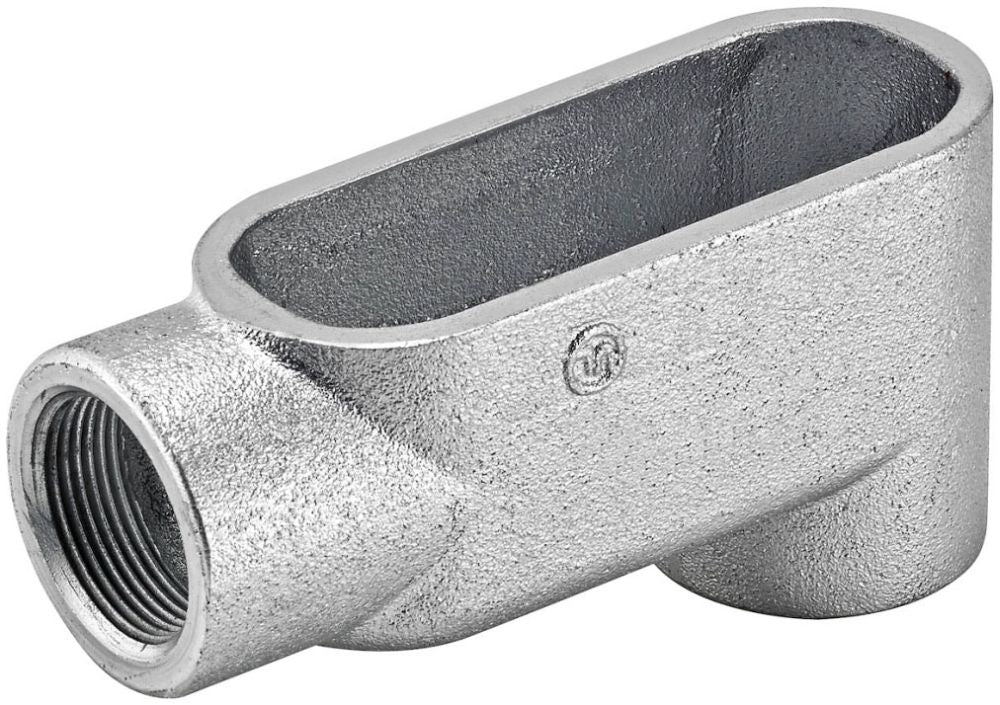

The TOPAZ LB2G7 LB Type Conduit Body features a configuration LB and 2 hubs. Constructed from zinc plated gray iron, this conduit body is suitable for rigid conduit systems. It measures 5.2 inches in length, 2.5 inches in width, and 1.7 inches in height, with a volume of 5.8 cubic inches.

• LB Type Conduit Body
• Hub Size-3/4"
• Length-5.2"
• Width-2.5"
• Height-1.7"
• Wall Mount
• Iron

Product Highlights

Durable iron construction with zinc plated finish. NPT tapered hubs offer protection for conductor insulation. UL514A and UL514B listed.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: LB2G7
• Country of Origin: CHN

Technical Specifications

• Country Of Origin: CHN
• Hub Size: 3/4 in
• Material: Iron
• Plating: Zinc Plated
• Mounting Type: Wall Mount
• Volume: 5.8 cu-in
• Configuration: LB
• Number of Hubs: 2
• Installation: Tapered Threaded
• Form Type: Form 7
• Approval: UL (Canada and US), UL 514A/514B
• Used On: Rigid Conduit
• Applicable Standard: Federal Specification A-A-50563, ASTM B117
