Topaz L4T8B/65K/14F/DE-39 T8 Lamp 14W (4 ft) L4T8B/65K/14F/DE-39

Product Description

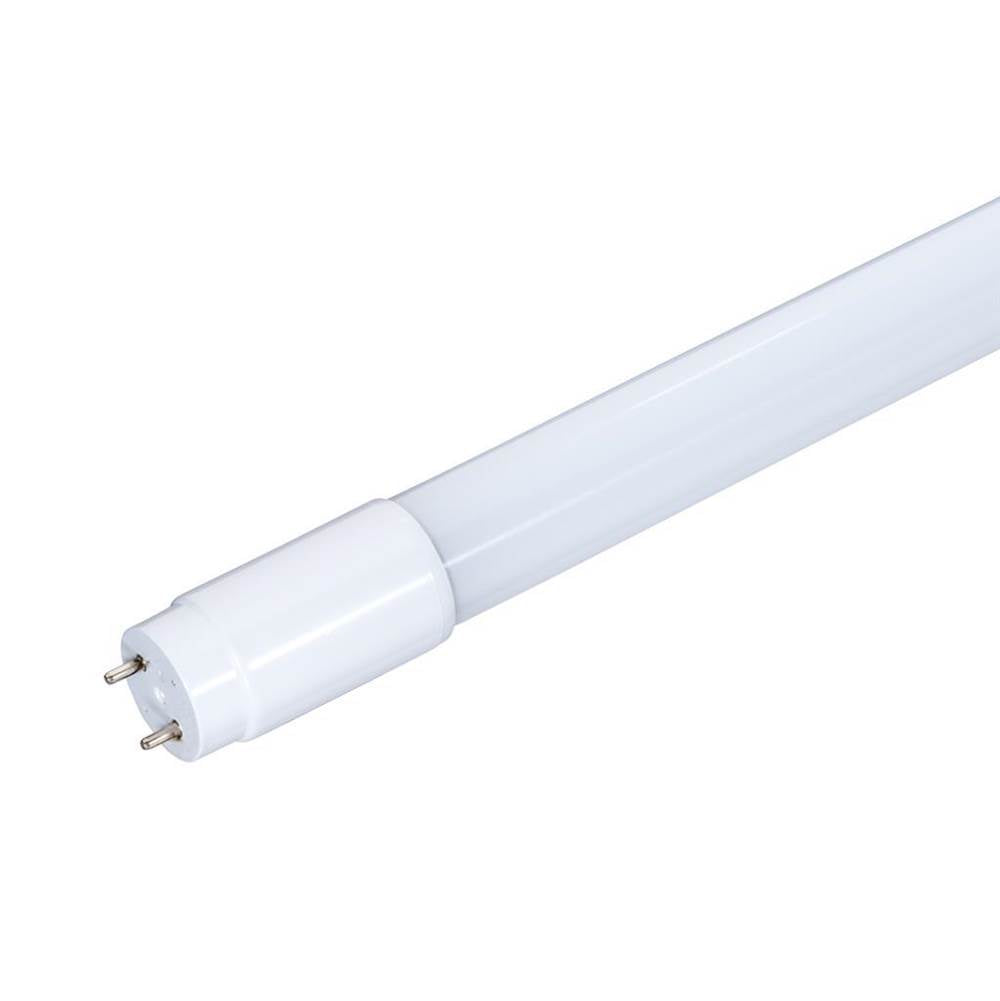

Topaz L4T8B/65K/14F/DE-39 is a 14W T8 LED lamp designed for ballast-bypass dual-end installations. It provides 1,800 lumens at 6500K from a 4 ft (47.8 in) G13-based tube and is non-dimmable with a rated life of 50,000 hours (L70). The lamp operates at 120-277V, offers power factor >0.90 and THD <20%, has a frosted glass PET coating, and is suitable for enclosed fixtures and damp locations.

• Ballast-bypass dual-end wiring with G13 base for direct-wire installations
• 14W output producing 1,800 lumens at 6500K, non-dimmable, rated life 50,000 hours (L70)
• Operates on 120-277V at 50/60Hz with power factor >0.90, THD <20%, frosted glass PET coating
• Suitable for enclosed fixtures and damp locations; G13 base (4 ft / 47.8 in nominal length)

Product Highlights

14W dual-end ballast-bypass T8 LED, 1,800 lm at 6500K, 4 ft (47.8 in), G13 base, 50,000-hour L70, suitable for enclosed and damp locations

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: L4T8B/65K/14F/DE-39

Technical Specifications

• Brand: Topaz
• MPN: L4T8B/65K/14F/DE-39
• Power: 14 W
• Lamp Type: Linear T8
• Shape: T8
• Base Type: G13
• Connection Type: Dual-end ballast bypass (direct wire)
• Length: 47.8 inches (4 ft)
• Diameter: 1 in
• Lumen Output: 1,800 lm
• Color Temperature: 6500 K
• CRI: 80
• Rated life (L70): 50,000 hours
• Beam Angle: 210 degrees
• Input Voltage: 120-277V
• Frequency: 50/60Hz
• Power Factor: >0.90
• Total Harmonic Distortion: <20%
• Lamp Input Amperage: 0.125 A
• Operating Temperature Range: -4 to 104 F
• Weight: 0.44 lbs
• Material: Frosted glass with PET coating; steel end caps
• Enclosed Fixture Rating: Suitable for enclosed fixtures
• Location Rating: Damp
• Dimmable: No
• Compliance: RoHS Compliant; DLC Qualified; NSF Approved (vendor claim)
• UPC: 75133803533
