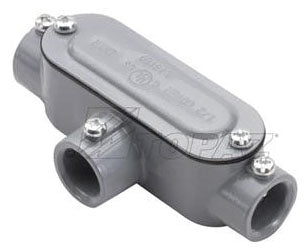

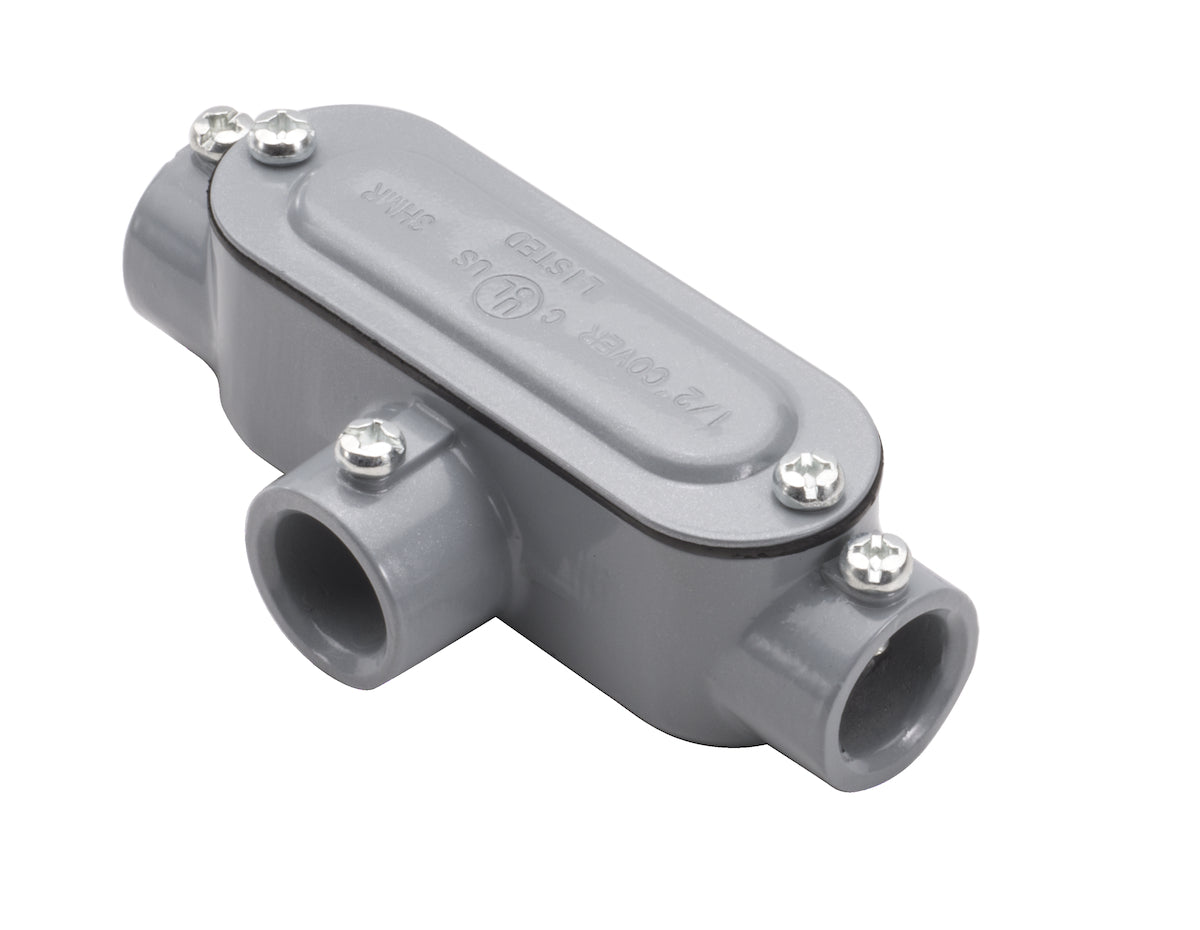

Topaz ET1CG 1/2 Aluminum EMTT Conduit Body

Product Description

Topaz ET1CG is a 1/2 inch aluminum EMTT conduit body designed for use in electrical wiring systems. This product is made from powder coated die-cast copper-free aluminum, ensuring durability and resistance to corrosion. The conduit body measures four point seventy-two inches in length, two point zero three inches in width, and one point thirty-seven inches in height. It is suitable for applications including pulling and splicing in concrete environments.

• UL and CSA approved for safety and reliability
• Includes a cover and gasket for complete installation
• Configured as a T type for effective wiring management

Product Highlights

This conduit body supports one conductor of six AWG size. It uses a screw installation method and has three hubs. The design is optimized for EMT conduit, making it a dependable choice for electricians.

Product Information

Standard Information

• Brand: Topaz Electric Corp.
• Manufacturer: SOUTHWIRE COMPANY, LLC

Technical Specifications

• Width: 2.03 inches
• Height: 1.37 inches
• Length: 4.72 inches
• Hub Size: 0.5 inches
• Material: Die-Cast Aluminum
• Connection: Female Threaded
• Includes: Cover, Gasket
• Wire Size: 6 AWG
