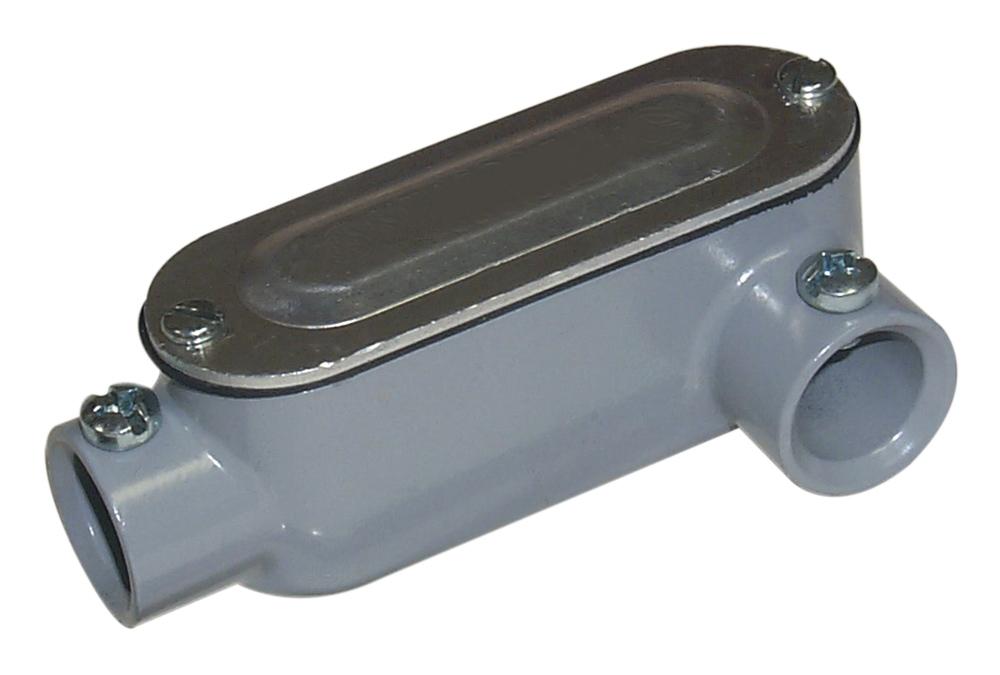

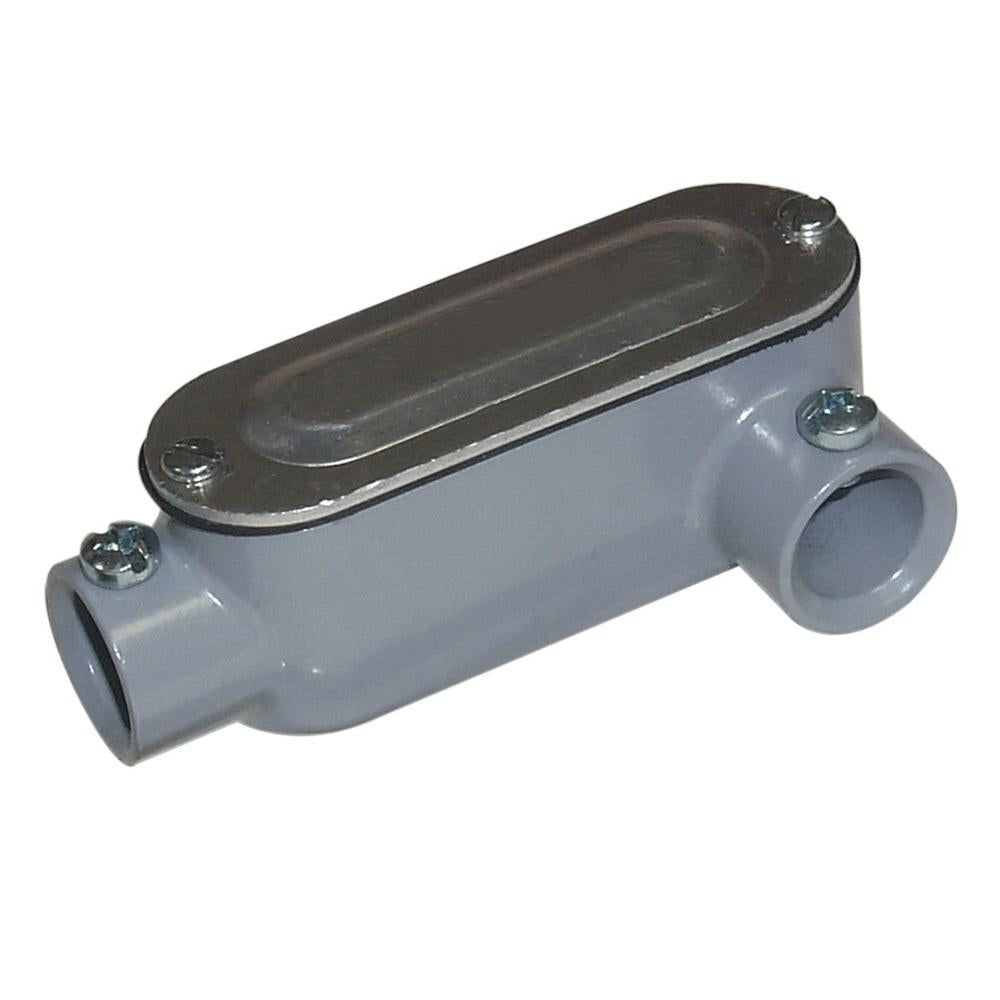

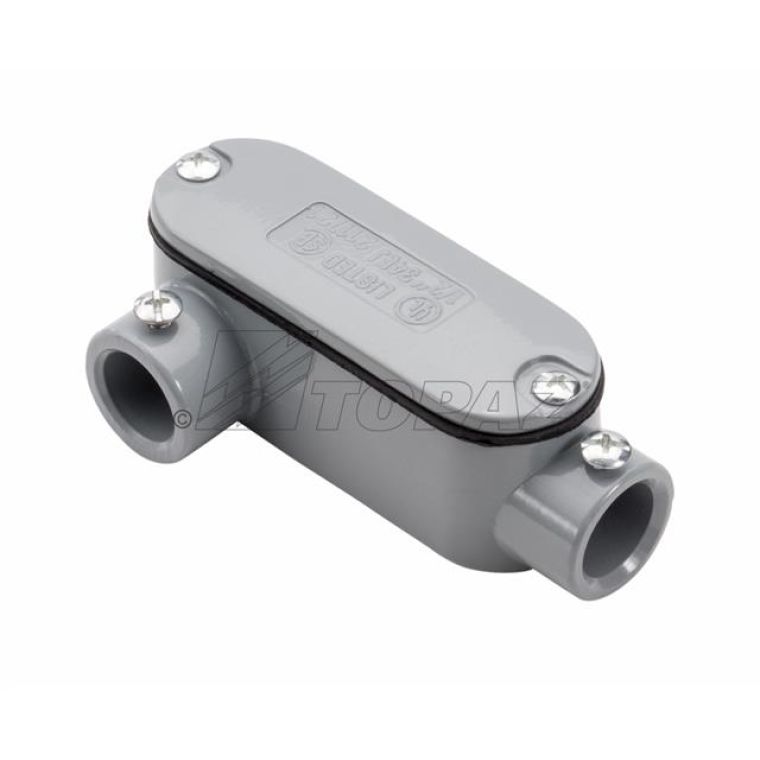

Topaz ELR5CG 1-1/2 inches Aluminum EMT "LR" Conduit Body

Product Description

The Topaz ELR5CG is a 1-1/2" Aluminum EMT "LR" Conduit Body. Topaz’s EMT set screw LR type conduit bodies permit 90° right bends in conduit systems, provide easy access for splicing and can correct and change direction of conduit runs. Roomy interior allows for maximum wiring space.

• Manufactured from copper free aluminum
• Excellent ground continuity and corrosion resistance
• UL listed

Product Highlights

This conduit body provides access to conductors for pulling, splicing, and maintenance, and is suitable for use in concrete.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: ELR5CG
• Country of Origin: USA

Technical Specifications

• Manufacturer: Topaz
• Manufacturer Part Number: ELR5CG
• Hub Size: 1-1/2"
• Type: LR Type Conduit Body
• Material: Die Cast Aluminum
• Length: 7.894"
• Width: 3.385"
• Height: 2.770"
• For Use With: EMT Conduit
• Finish: Powder Coated
• Mounting Type: Wall
• Number of Hubs: 2
• Standard/Approvals: ARRA, Buy American Act, RoHS Compliant, UL 514A and UL 514B, UL File No. E170258, cULus File No. E195124, CSA Certified, Federal Specification No. A-A-50563, NEMA/ANSI FB-1, Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Connection Type: FNPT
• Application: For use with EMT conduit, to provide access to conductors for pulling, splicing and maintenance, suitable for use in concrete
