Topaz ELL6 2 inches emt set screw ll type aluminum conduit body

Product Description

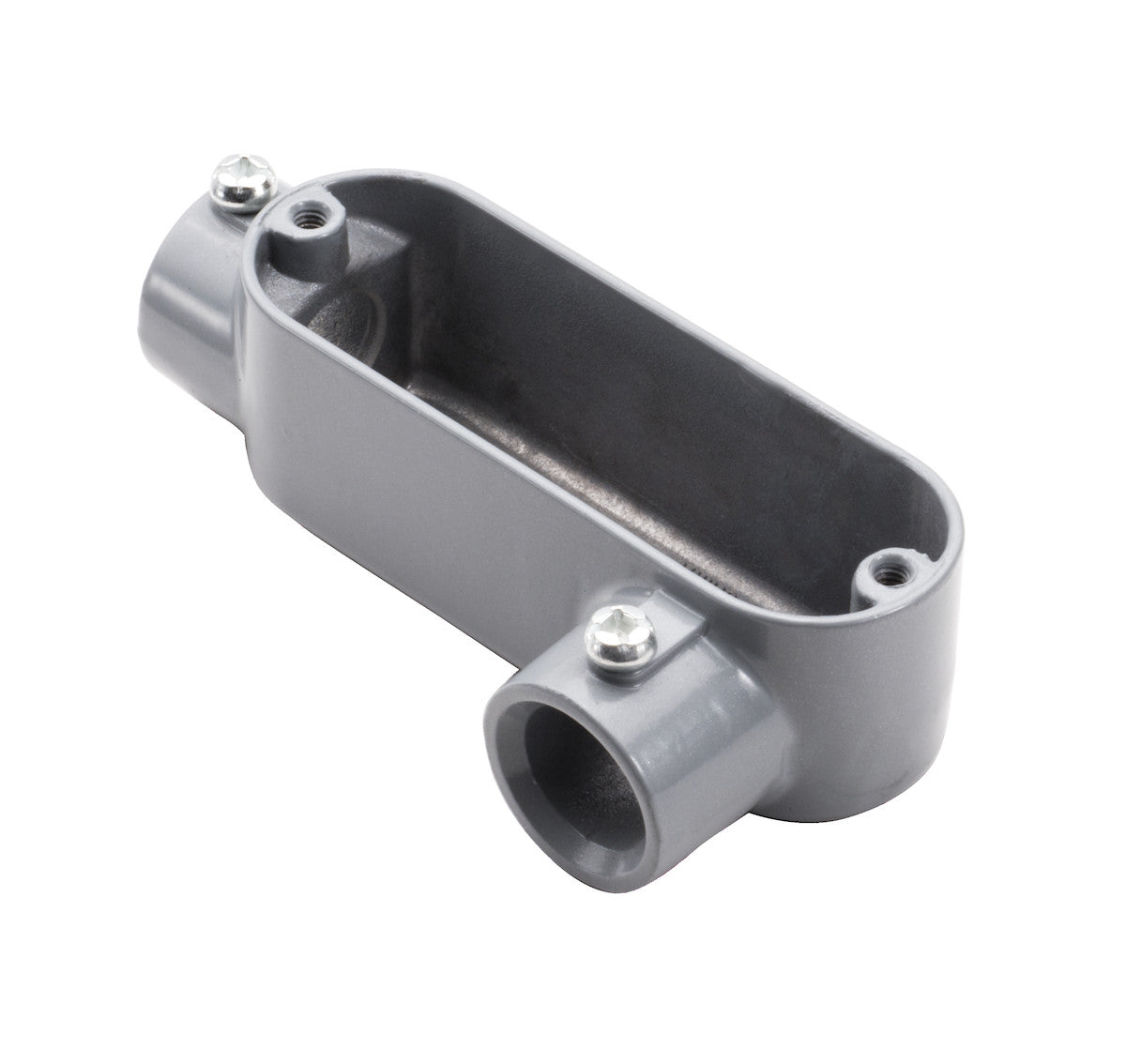

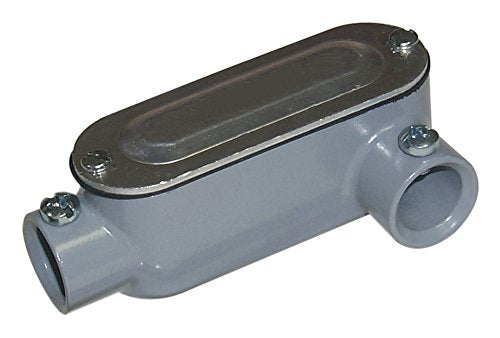

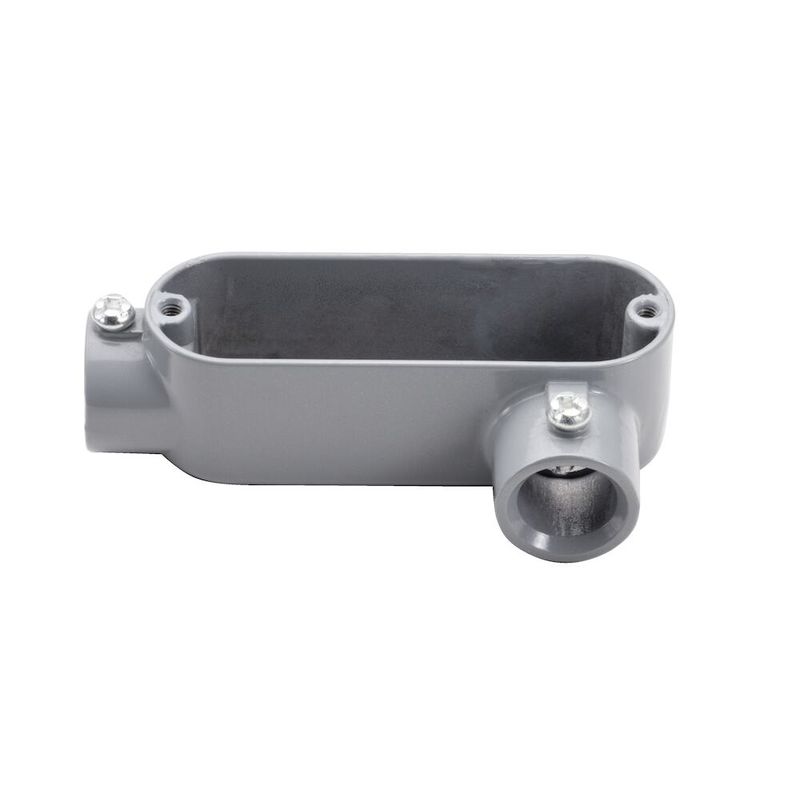

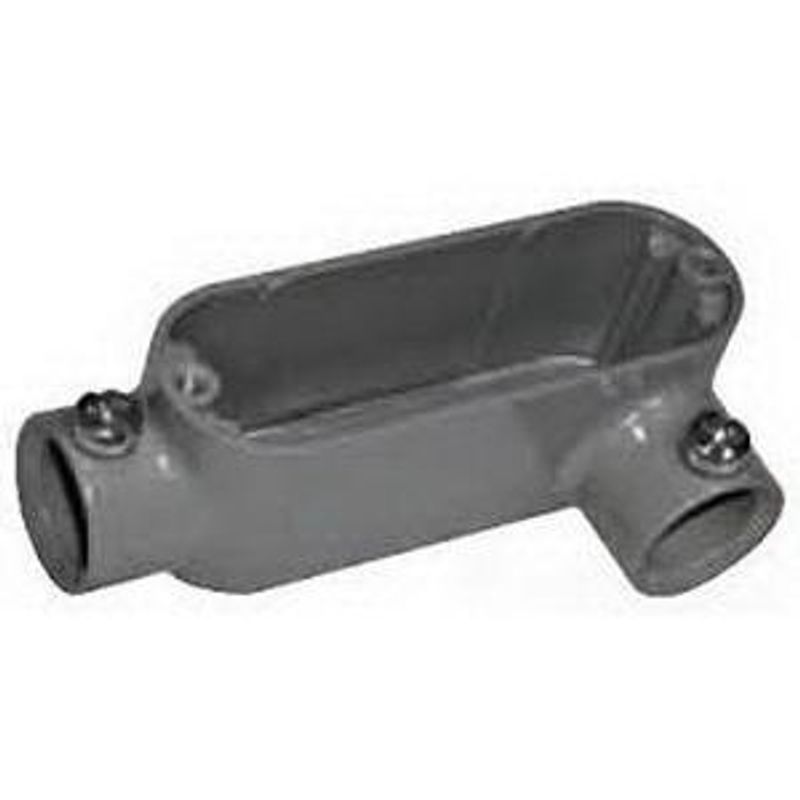

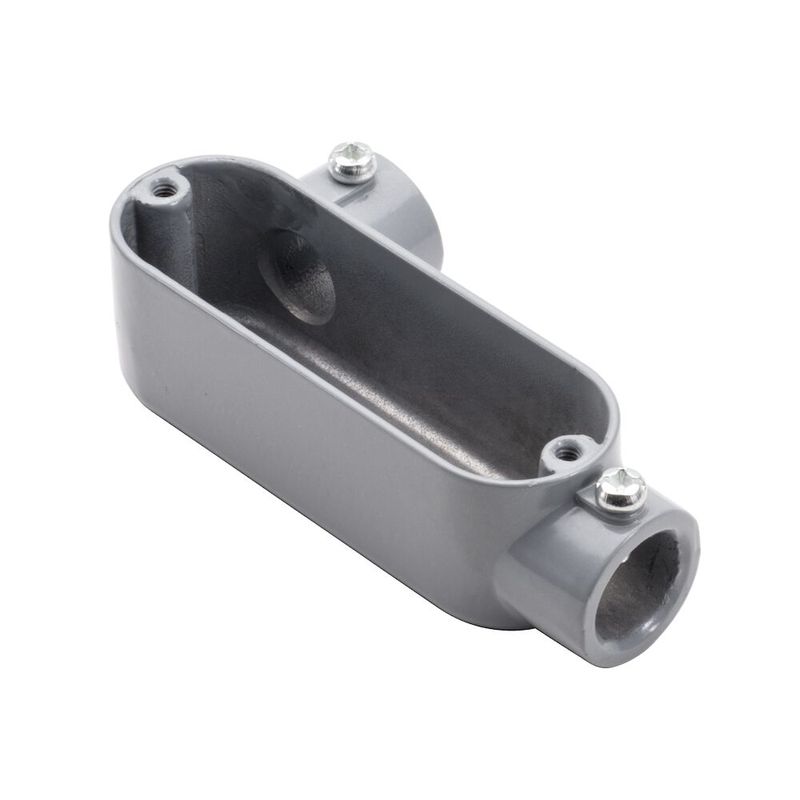

The Topaz ELL6 is a 2" EMT set screw LL type aluminum conduit body. It permits 90° left turns in conduit systems and enables easy access for splicing. The roomy interior allows for maximum wiring space. It is suitable for use in concrete and provides access to conductors for pulling, slicing, and maintenance.

• LL Type Conduit Body
• Hub Size-2"
• Die Cast Aluminum

Product Highlights

This EMT set screw LL type aluminum conduit body is manufactured from copper-free aluminum with a flat back design for easy mounting.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: ELL6
• Country of Origin: India

Technical Specifications

• Brand: Topaz
• Manufacturer: Buffalo Electric Supply
• Model / MPN: ELL6
• Brand Part Number: ELL6
• Trade Size: 2 inch
• Form: LL
• Cover Type: Screw-On
• Hub Size: 2
• Connection Type: Set Screw
• For Use With: EMT Conduit
• Material Quality: Die Cast Aluminum
• Mounting: Wall Mount
• Application: To Provide Access to Conductors for Pulling, Slicing and Maintenance, Suitable for use in Concrete
• Type: LL Type Conduit Body
• Sub Brand: Topaz
• Standard: UL E170258, CSA Certified, UL 514B, Federal Specification A-A-50563, NEMA/ANSI FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Material: Die-Cast Aluminum
• Finish: Powder Coated
• Manufacturer Part Number: ELL6
