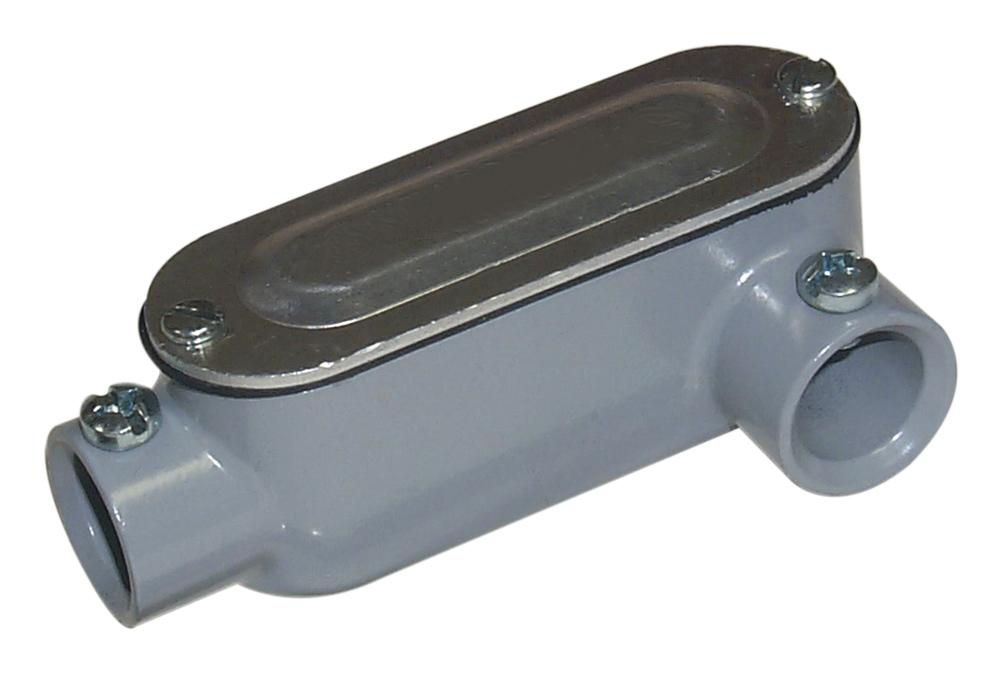

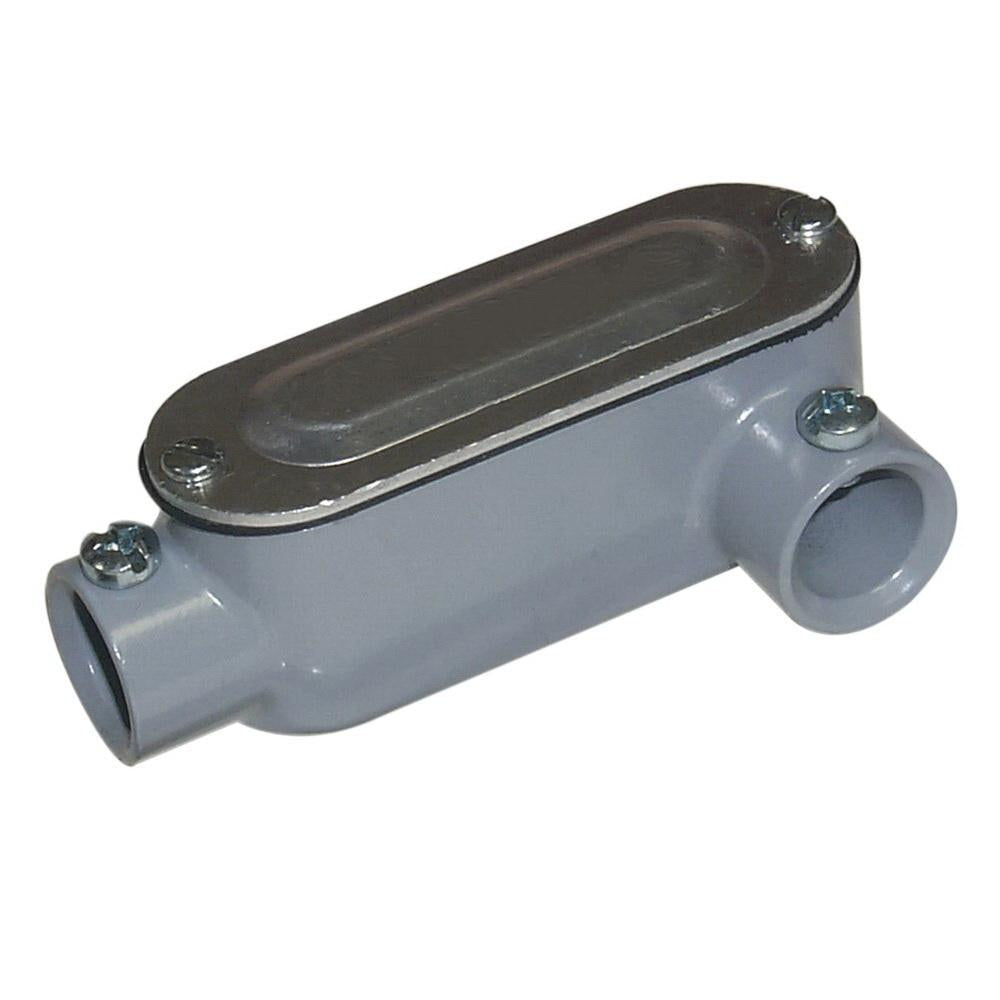

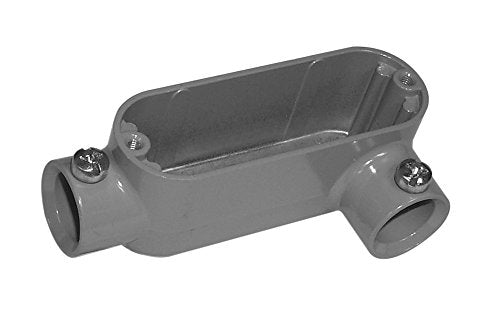

Topaz ELL2CG 3/4 inches EMT LL W/Cover & Gasket

Product Description

The Topaz ELL2CG is a 3/4" EMT LL with cover and gasket. This conduit body is for use with EMT conduit, to provide access to conductors for pulling, splicing and maintenance, suitable for use in concrete. Manufactured from die cast aluminum with powder coating.

• For use with EMT conduit, to provide access to conductors for pulling, splicing and maintenance, suitable for use in concrete
• Powder Coated
• Die Cast Aluminum

Product Highlights

The Topaz EMT set screw LL type Conduit Body, with Cover and Gasket is manufactured from copper free aluminum.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: ELL2CG
• Country of Origin: USA

Technical Specifications

• Category Level 1: Conduit & Conduit Fittings
• Category Level 2: Conduit Bodies
• Category Level 3: Conduit Bodies - Type LL
• Application: For use with EMT conduit, to provide access to conductors for pulling, splicing and maintenance, suitable for use in concrete
• Category Name: Conduit Bodies - Type LL
• Connection Type: FNPT
• Country: USA
• Finish: Powder Coated
• Hub Size: 3/4
• Material: Die Cast Aluminum
• Mounting Type: Wall
• Number of Hubs: 2
• Standard/Approvals: ARRA, Buy American Act, RoHS Compliant, UL 514B, UL File No. E170258, cULus File No. E195124, CSA Certified, Federal Specification No. A-A-50563, NEMA/ANSI FB-1, Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Type: Type LL Set Screw
• Unspsc: 39131708
