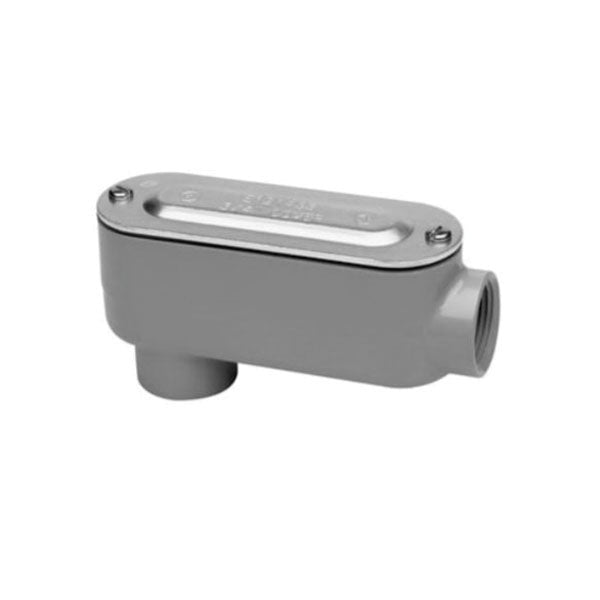

Topaz Electric LB1 Die Cast Copper Free Aluminum Type LB Conduit Body 1/2 Inch

Product Description

The Topaz Electric LB1 is a die-cast conduit body designed for use with 1/2 inch conduits. It offers access to conductors for tasks such as pulling and maintenance. This conduit body accommodates one conductor of size 6 AWG. Made from copper-free aluminum, it provides durability and is resistant to corrosion due to its powder-coated finish.

• Type LB conduit body with back access
• Features two 90-degree hubs and screw-on cover
• Meets UL and CSA standards

Product Highlights

Constructed for reliability, this conduit body is ideal for both indoor and outdoor applications.

Product Information

Standard Information

• Brand: Topaz Electric
• Manufacturer: Topaz Electric Corporation

Technical Specifications

• Trade Size: 1/2 Inch
• Conduit Body Style: Type LB
• Number of Hubs: 2
• Cover Type: Screw-On
• Access: Back Side
• Conductor Capacity: 1 - 6 AWG
• Connection Type: Threaded
• Material: Copper-Free Die Cast Aluminum
• Dimensions: 4.295 Inch Length x 1.33 Inch Width x 2.15 Inch Height
• Finish: Powder Coated
• For Use With: Rigid Conduit
• Hub Placement: 90 Degree
• Standards: UL E170258, E195124 Listed, CSA Certified, NEMA FB1
• Country of Origin: Multiple Countries
