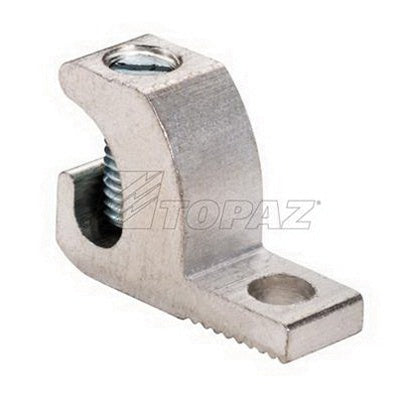

Topaz Electric 810 Solderless Lay-In Lug 14-4 AWG Copper/Aluminum

Product Description

Topaz Electric presents the 810 Aluminum Dual Rated Solderless Lay-In Lug, designed for use with 14 to 4 AWG copper or aluminum conductors. This lug is manufactured from durable aluminum, allowing for efficient conductivity. It offers a compact design, suitable for various wiring applications.

• Temperature rated for up to ninety degrees Celsius.
• Single hole assembly for straightforward installation.
• UL listed, ensuring compliance with safety standards.

Product Highlights

The 810 Lug provides reliable grounding points in load centers and other metal enclosures.

Product Information

Standard Information

• Brand: Topaz Electric
• Manufacturer Part Number: 810

Technical Specifications

• Material: Aluminum
• Size: 1.0981 inches x 0.3906 inches x 0.75 inches
• Number of Holes: 1
• Stud Size: 1/4 inch
• Conductor Size: 14-4 AWG Copper/Aluminum
• Installation Torque: 35 lb-Inch
• Temperature Rating: 90 degrees Celsius
• Standards: UL E195122
