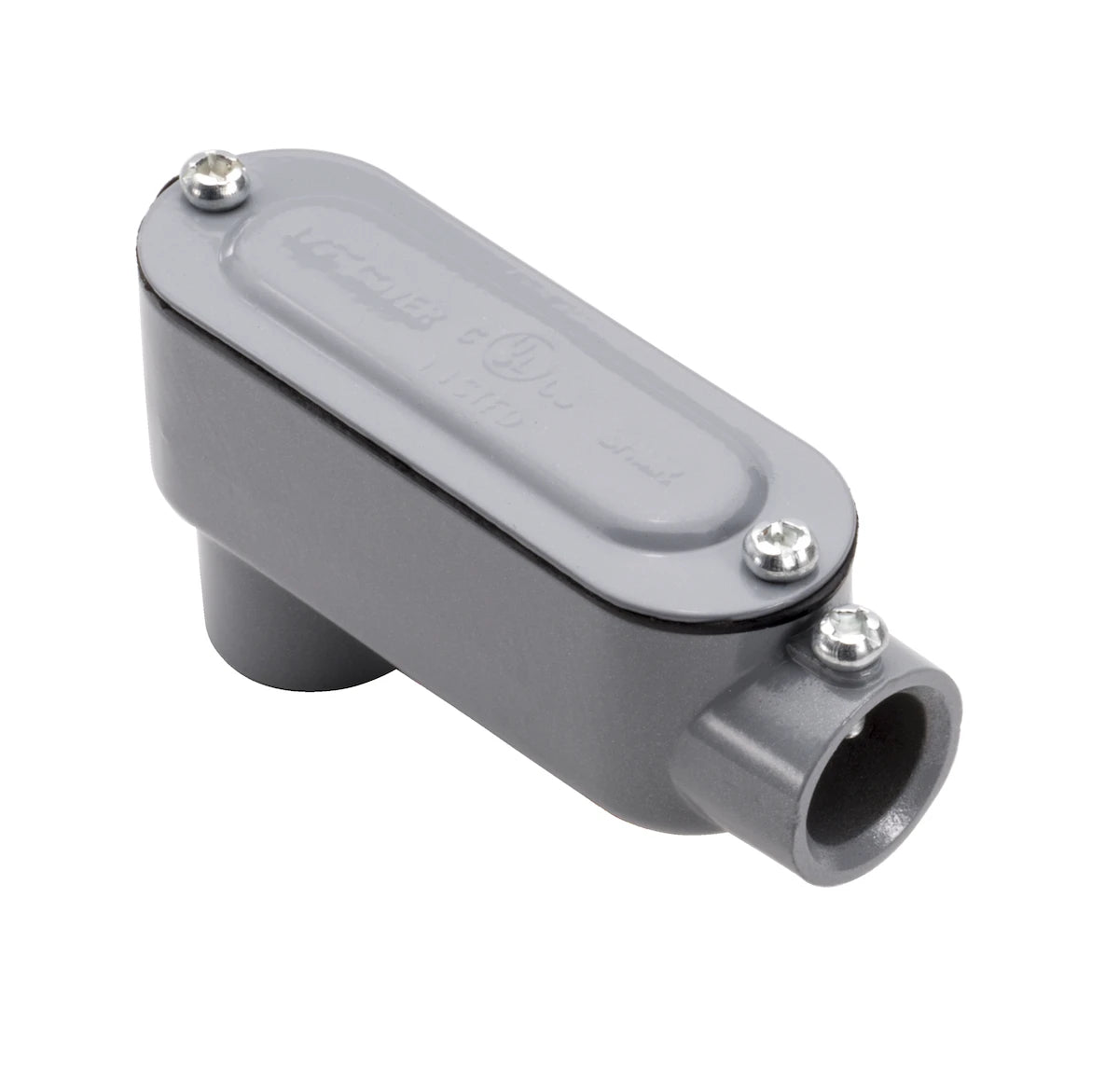

Topaz ELB5CG 1-1/2 inches Aluminum EMT "LB" Conduit Body (2 Pack)

Product Description

The Topaz ELB5CG 1-1/2" Aluminum EMT "LB" Conduit Body, with cover and gasket, is manufactured from copper free aluminum. The C type conduit bodies are engineered with a straight through configuration and enable the easiest access for pulling and splicing. Domed covers provides extra wiring space.

• Manufactured from copper free aluminum
• Straight through configuration
• Easiest access for pulling and splicing
• Domed covers provides extra wiring space

Product Highlights

Roomy interior allows for maximum wiring space. Smooth, rounded integral bushings in hubs offers protection for conductor insulation. Excellent ground continuity and corrosion resistance. UL and CSA listed.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: ELB5CG

Technical Specifications

• Manufacturer: Topaz Lighting
• Manufacturer Part Number: ELB5CG
• UPC: 751338205116
• Access Opening: Back
• Cover Type: Stamped Steel
• Installation: Set Screw
• Hub Size: 1-1/2 Inch
• Hub Location: 90 Degree
• Approval: UL, CSA
• Configuration: LB
• Size: 7.894 Inch L x 2.49 Inch W x 3.665 Inch H
• Used On: EMT Conduit
• Material: Die-Cast Copper Free Aluminum Body, Steel Screw, Neoprene Rubber Gasket
• Number of Hubs: 2
• Additional Info: Conductor Size (3) 2 AWG; Includes Cover and Gasket
