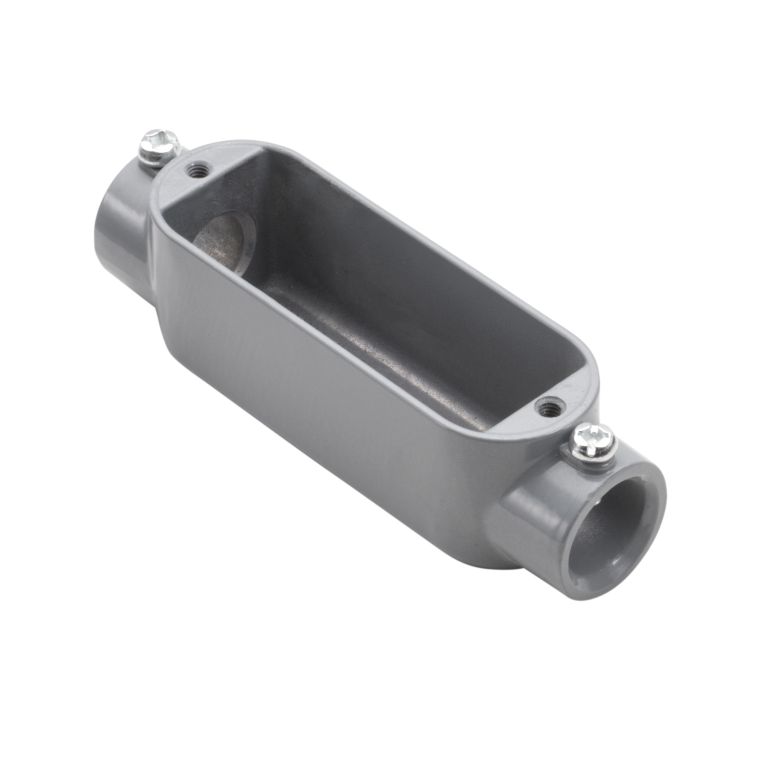

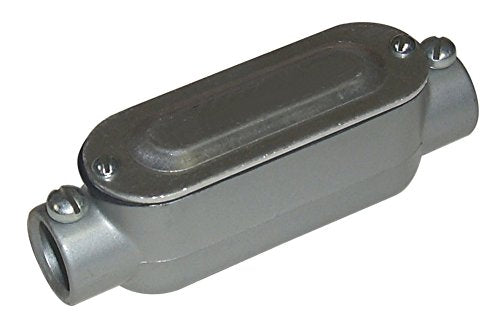

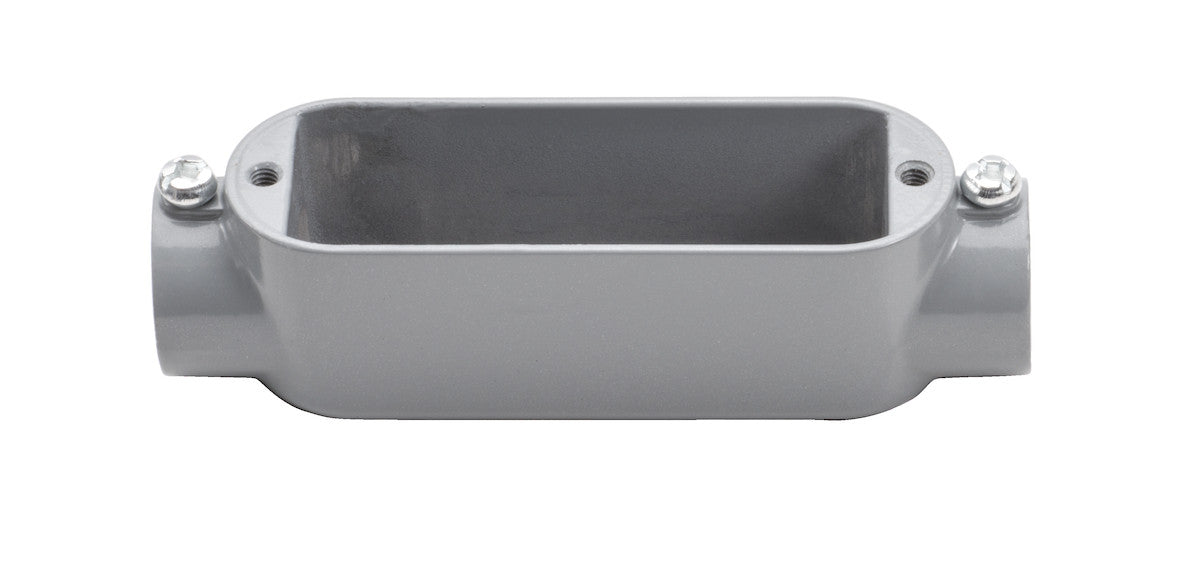

Topaz EC5 1-1/2 inches EMT SS C Conduit Body

Product Description

The Topaz EC5 1-1/2" EMT SS C Conduit Body is manufactured from copper-free aluminum. C type conduit bodies are engineered with a straight-through configuration for easy access for pulling and splicing. Its roomy interior allows for maximum wiring space. It features smooth, rounded integral bushings in hubs for conductor insulation protection.

• C Type Conduit Body
• Hub Size-1-1/2"
• Die Cast Aluminum

Product Highlights

This EMT set screw C type conduit body offers excellent ground continuity and corrosion resistance with a flat back design for easy mounting.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: EC5
• Country of Origin: United States

Technical Specifications

• Model / MPN: EC5
• Product Type: Conduit Body
• Number of Items: 1.0
• Brand Name: Topaz
• Brand Part Number: EC5
• Length: 8.528"
• Width: 2.490"
• Height: 2.770"
• For Use With: EMT Conduit
• Item UPC: 751338204508
• Manufacturer Part Number: EC5
• Product Code: EC5
• Product Name: Southwire TOPAZ 1-1/2 EMT Conduit Body Set Screw C Type (EC5)
• Brand: Southwire
• SKU: SOUTHWIRE-EC5
• UPC Code: #751338204508
• Standards: California Proposition 65
• Hub Size: 1-1/2"
