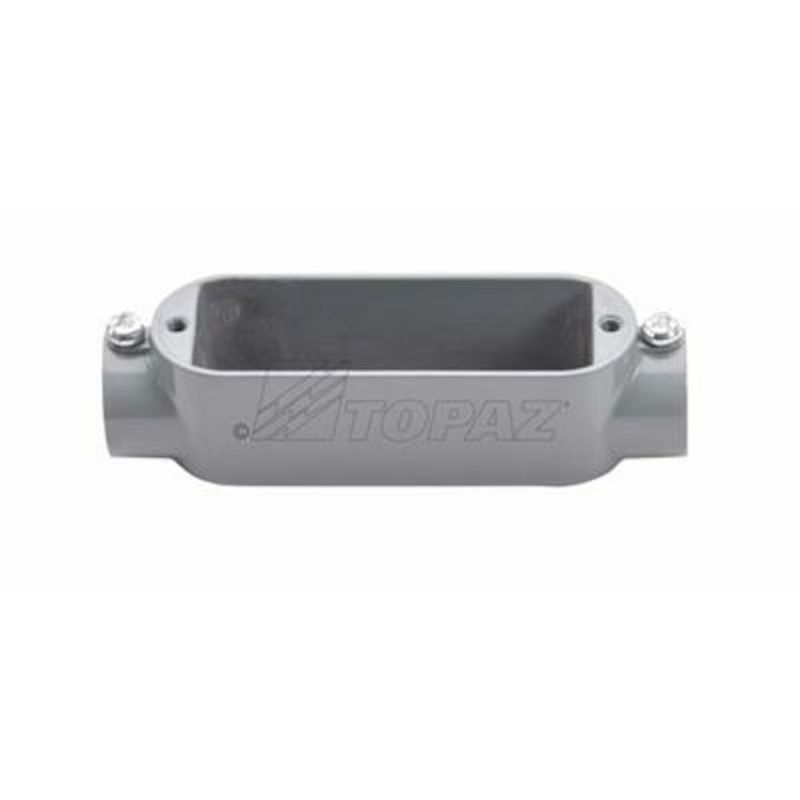

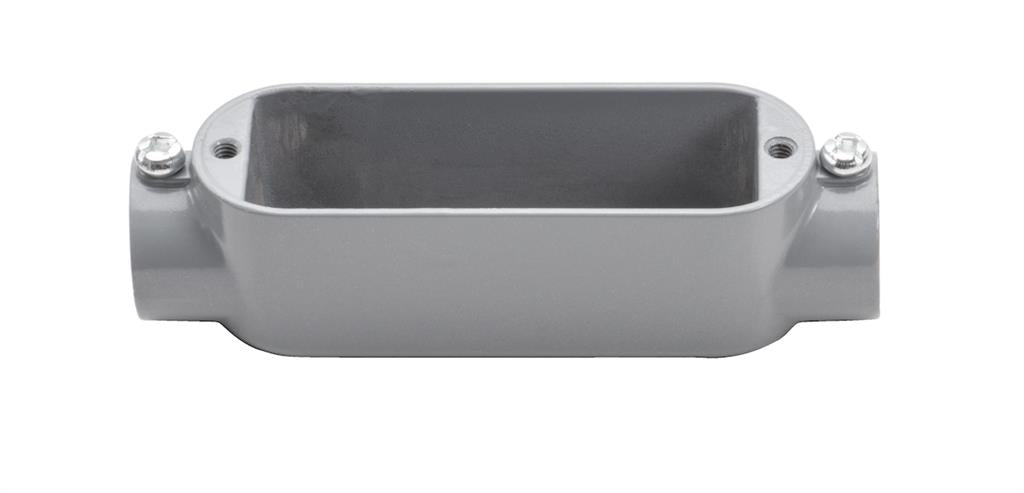

Topaz EC3 1 inches Aluminum EMT "C" Conduit Body

Product Description

The Topaz EC3 1" Aluminum EMT "C" Conduit Body provides access to conductors for pulling, slicing, and maintenance. Constructed from die-cast aluminum, this C type conduit body features a straight-through configuration for easy access. It is suitable for use in concrete and offers excellent ground continuity and corrosion resistance.

• C Type Conduit Body
• Hub Size-1"
• Die Cast Aluminum

Product Highlights

Provides easy access for pulling and splicing with maximum wiring space. UL listed for safety.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: EC3
• Country of Origin: India

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: EC3
• For Use With: EMT Conduit
• Material: Die-Cast Aluminum
• Trade Size: 1 inch
• Form: C
• Cover Type: Screw-On
• Hub Size: 1
• Connection Type: Set Screw
• Mounting: Wall Mount
• Application: To Provide Access to Conductors for Pulling, Slicing and Maintenance, Suitable for use in Concrete
• Height: 1.9 inch
• Width: 1.74 inch
• Connection: Female Threaded
• Type: C Type Conduit Body
• Length: 6.46 inch
• Sub Brand: Topaz
• Standard: UL E170258, CSA Certified, UL 514B, Federal Specification A-A-50563, NEMA/ANSI FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Finish: Powder Coated
