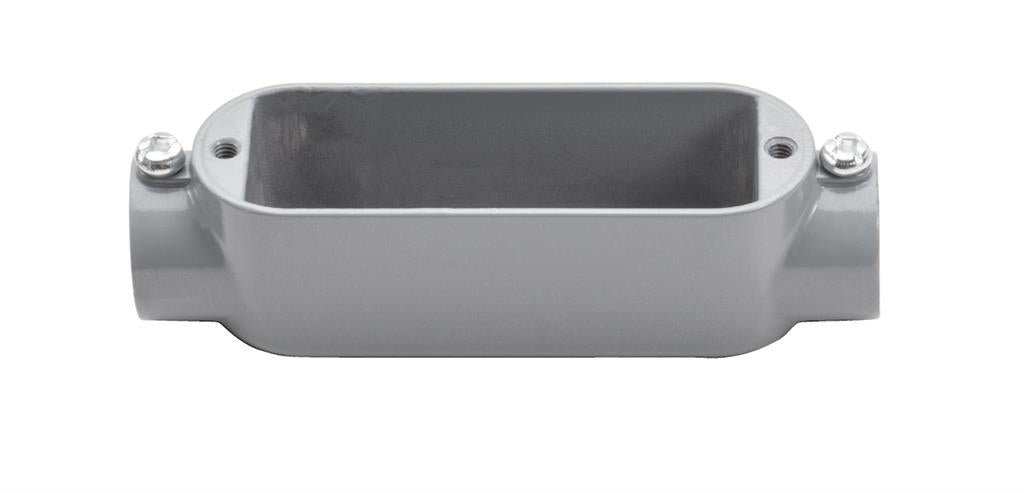

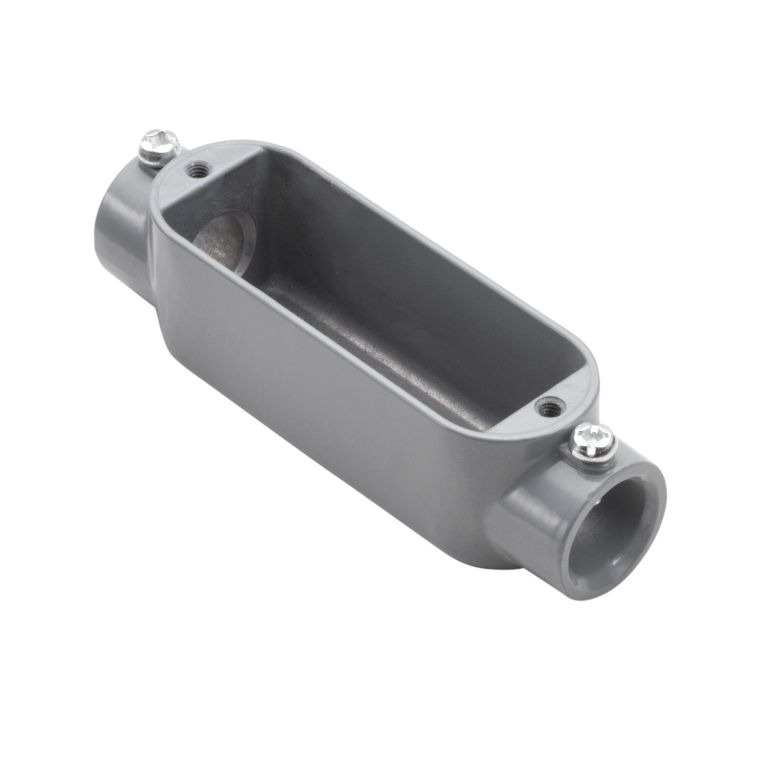

Topaz EC10 C Type Conduit Body 4 inches (1 Pack)

Product Description

The TOPAZ EC10 is a C Type Conduit Body with EMT set screw, manufactured from copper free aluminum. The C-type conduit body is engineered with a straight through configuration and enables access for pulling and splicing. It is suitable for use in concrete and has a roomy interior that allows for maximum wiring space.

• EMT Set Screw Type
• Provides access to conductors for pulling, slicing, and maintenance
• Manufactured from copper free aluminum

Product Highlights

This C Type Conduit Body features a straight through configuration for easy access, a roomy interior for wiring, and is constructed from corrosion-resistant, lightweight aluminum.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: EC10

Technical Specifications

• Type: EMT Set Screw
• Suitable for: Use in Concrete
• Certifications: UL E170258, CSA Certified, UL 514B, Federal Specification A-A-50563, NEMA/ANSI FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Brand Name: Topaz
• Brand Part Number: EC10
• Length: 15.50"
• Width: 6.171"
• Height: 5.452"
• For Use With: EMT Conduit
• Item UPC: 751338204645
• Manufacturer: Topaz
• Manufacturer Part Number: EC10
