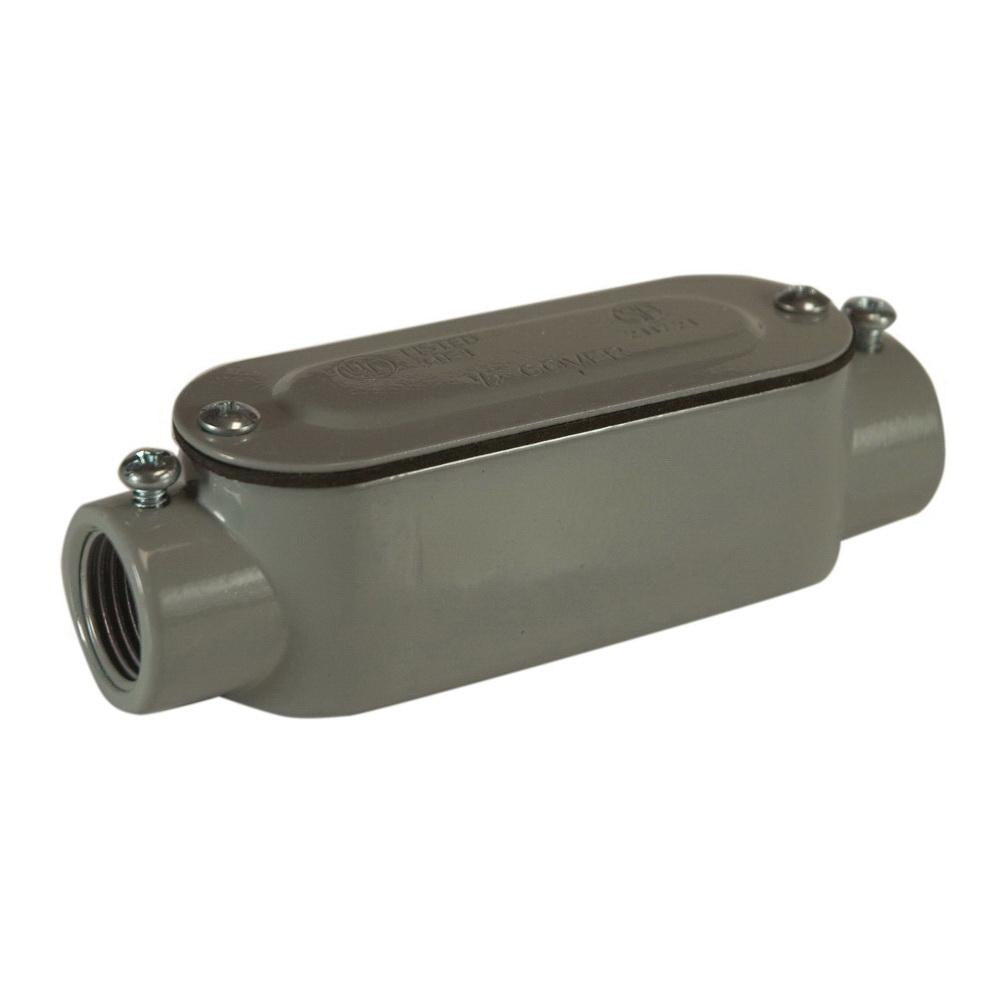

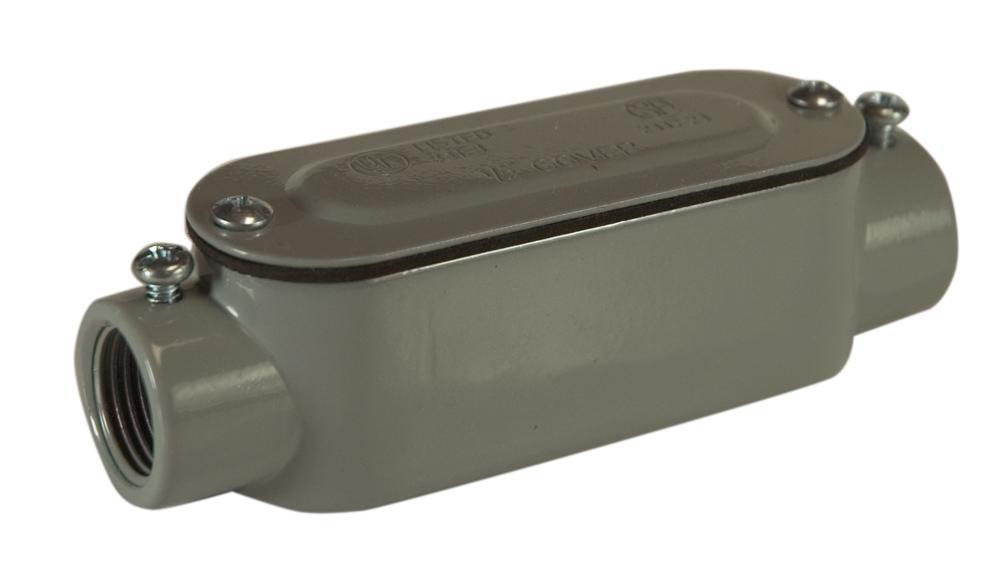

Topaz C3SSCG C Type Combo Conduit Body 1 inches EMT & Rigid

Product Description

The Topaz C3SSCG C Type Combo Conduit Body is made from die-cast aluminum with a hub size of 1". This EMT and rigid combo C type aluminum conduit body includes a cover and gasket and is naturally corrosion resistant. The C type conduit bodies are engineered with a straight-through configuration for easy access for pulling and splicing.

• C Type Combo Conduit Body
• Hub Size-1"
• For Use With-Rigid/EMT/IMC Conduit

Product Highlights

Ensures weatherproof installations. Smooth, rounded integral bushings in hubs offers protection for conductor insulation. UL listed.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: C3SSCG
• Country of Origin: USA

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: C3SSCG
• Application: For use with rigid/EMT/IMC conduit, to provide access to conductors for pulling, splicing and maintenance, suitable for use in concrete, wet locations
• Connection Type: FNPT
• Country: USA
• Finish: Powder Coated
• Hub Size: 1
• Length: 7.0
• Material: Die Cast Aluminum
• Mounting Type: Wall
• Number of Hubs: 2
• Standard/Approvals: ARRA, Buy American Act, RoHS Compliant, UL 514B, UL File No. E170258, cULus File No. E170258, CSA Certified, Federal Specification No. A-A-50552, NEMA/ANSI FB-1, Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Type: Type C Combination
• Diameter: 1 in
• Standards: California Proposition 65
• Manufacturer: Topaz
• Manufacturer Part Number: C3SSCG
