Topaz C1SSCG c type combo conduit body 1/2 inches replacement MPN

Product Description

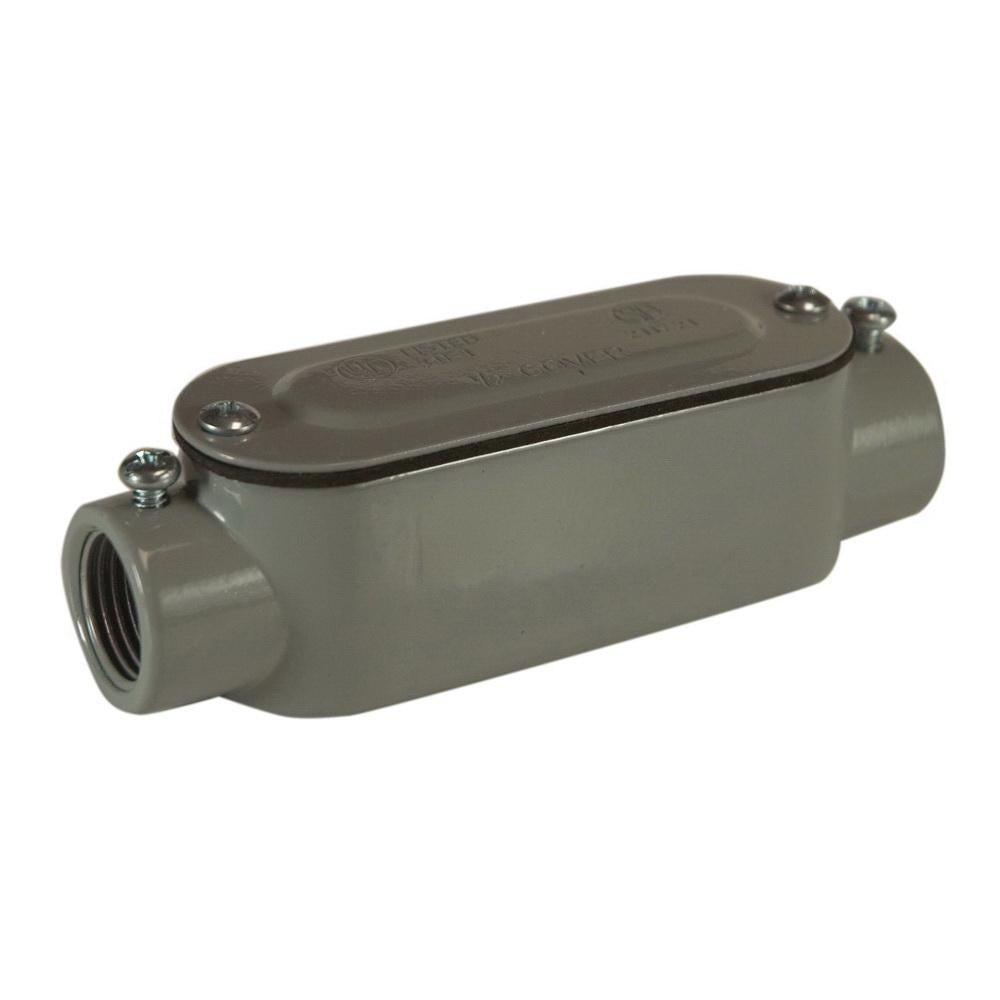

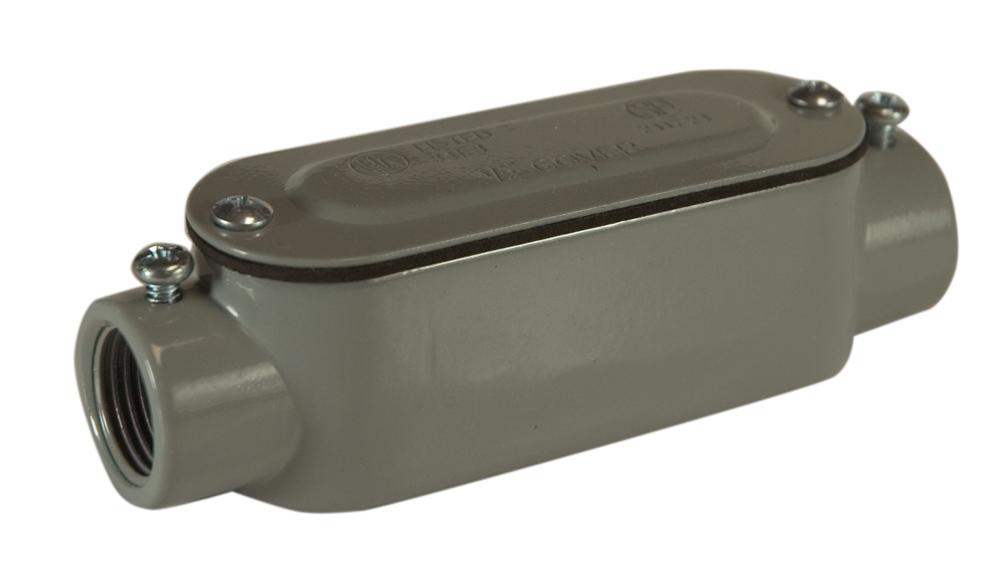

The Topaz C1SSCG C Type Combo Conduit Body is made from die-cast aluminum with a 1/2" hub size. These C type conduit bodies feature a straight-through configuration for easy access during pulling and splicing. The domed cover offers extra wiring space, while the watertight gasket ensures weatherproof installations.

• C Type Combo Conduit Body
• Hub Size-1/2"
• Die Cast Aluminum

Product Highlights

This conduit body is suitable for use with rigid/EMT/IMC conduit, providing access to conductors for pulling, splicing, and maintenance.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: C1SSCG
• Country of Origin: USA

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: C1SSCG
• Length: 5.35 in
• Width: 1.31 in
• Height: 1.31 in
• Mounting Type: Wall
• Material: Die Cast Aluminum
• For Use With: Rigid/EMT/IMC Conduit
• Application: For use with rigid/EMT/IMC conduit, to provide access to conductors for pulling, splicing and maintenance, suitable for use in concrete, wet locations
• Connection Type: FNPT
• Country: USA
• Finish: Powder Coated
• Hub Size: 1/2
• Number of Hubs: 2
• Standard/Approvals: ARRA, Buy American Act, RoHS Compliant, UL 514B, UL File No. E170258, cULus File No. E170258, CSA Certified, Federal Specification No. A-A-50552, NEMA/ANSI FB-1, Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Type: Type C Combination
