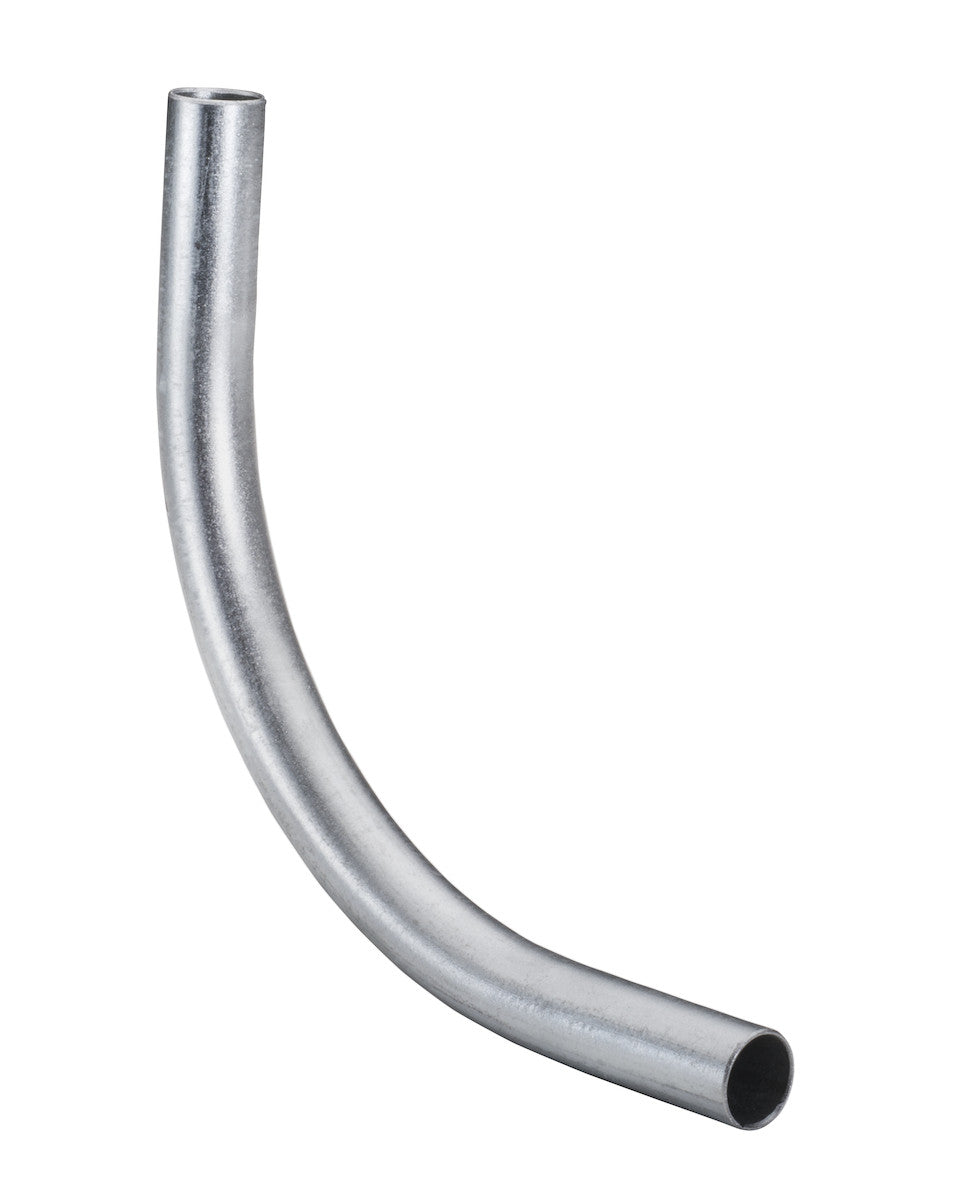

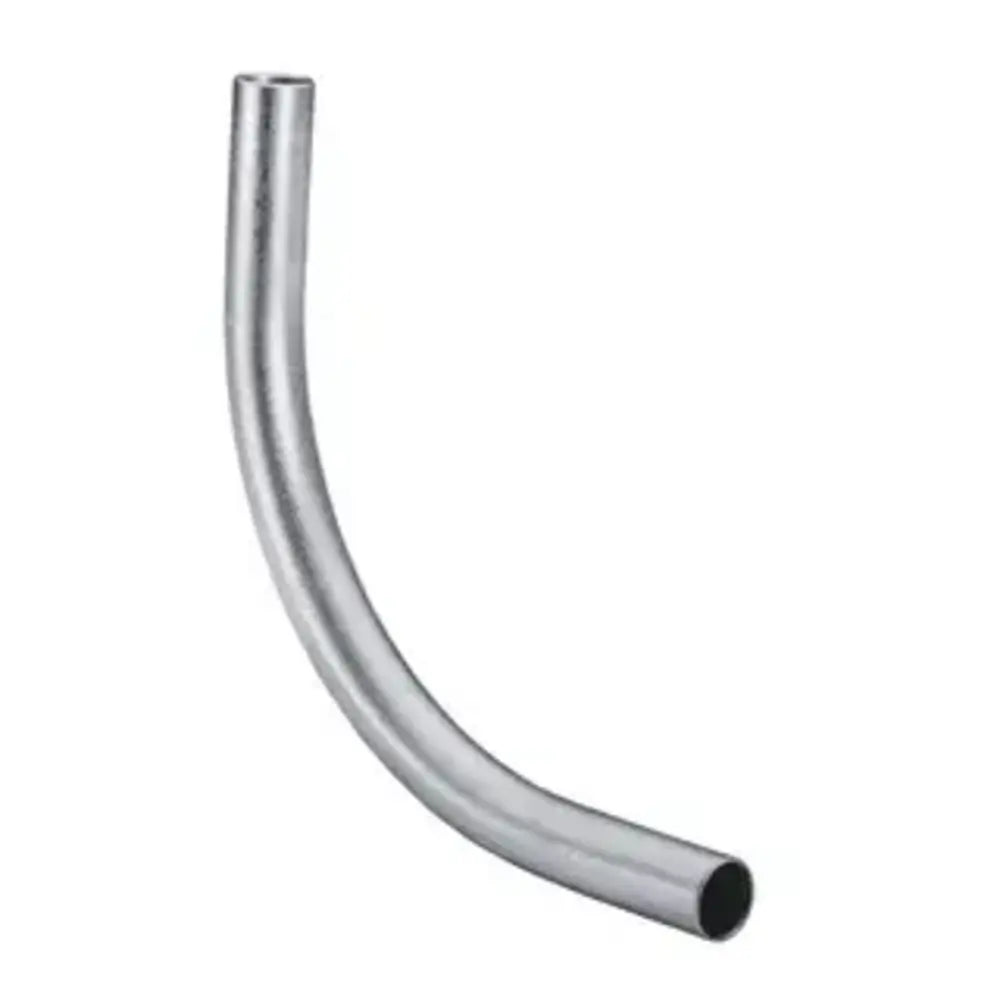

Topaz 88 3 inches emt elbow, 90°

Product Description

The Topaz 88 is a 3" EMT elbow with a 90° angle, designed for a secure connection to EMT conduit, enabling directional changes. It is manufactured from galvanized steel for corrosion resistance. All surfaces are free from defects to ensure a secure connection and preserve integrity.

• Ensures a secure connection to EMT conduit.
• Fabricated from galvanized steel for low conductivity and high corrosion resistance.
• All surfaces, both interior and exterior are free from defects.

Product Highlights

The Topaz 88 EMT elbow provides a reliable and durable solution for creating bends in EMT conduit runs, ensuring a secure and long-lasting electrical raceway.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 88
• Country of Origin: UKN

Technical Specifications

• Type: EMT Conduit Elbows
• Degree: 90 deg
• Finish: Galvanized
• Radius: 13 in
• Material: Steel
• Insulated: No
• Connection: Plain End
• Brand: Topaz
• Model / MPN: 88
• Size: 3 Inch
• Suitable For Use With: EMT Conduit
• Trade Size: 3 in
• Standard Approval: UL 514B|UL 797|cULus E197604 Listed|US Federal Spec Number A-A-50552|NEMA/ANSI FB-1|Military Specification:W-F-406D|W-F-406E|W-F-408D|W-S-610D|ANSI C80.3|Federal Spec WW-C-563
• Application: For a secure connection to EMT conduit, bend enables directional changes in conduit
