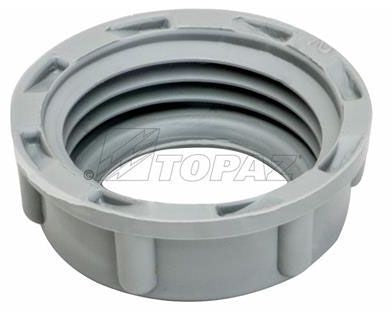

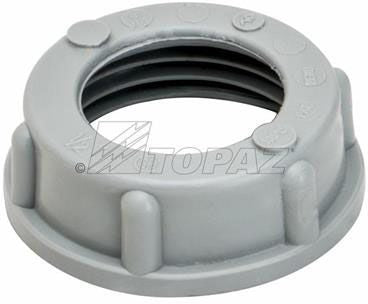

Topaz 835TZ TOP 835 1-1/2 Plastic Bushing

Product Description

The Topaz 835TZ is a plastic insulating bushing designed for use with IMC and rigid conduits. This product has a trade size of one and one-half inches. It is suitable for both indoor and outdoor applications. The bushing maintains a temperature rating of one hundred five degrees Celsius and provides insulation to protect against electrical shock.

• Type: Threaded Female with 2.18 inches Height
• Material: Thermoplastic Construction
• Approval: UL Listed for both Canada and the US

Product Highlights

This bushing is used for protecting wiring in conduit systems. It helps in smooth transitions and changes in direction of conduit runs.

Product Information

Standard Information

• Manufacturer: Topaz
• UPC: 75133818490

Technical Specifications

• Diameter: 1.5 inches
• Height: 2.18 inches
• Material: Thermoplastic
• Temperature Rating: 105 Deg C
• Weight: 0.02 lbs
• Approval: UL (Canada and US)
• Application: Indoor, Outdoor
• Standard Package: 250
