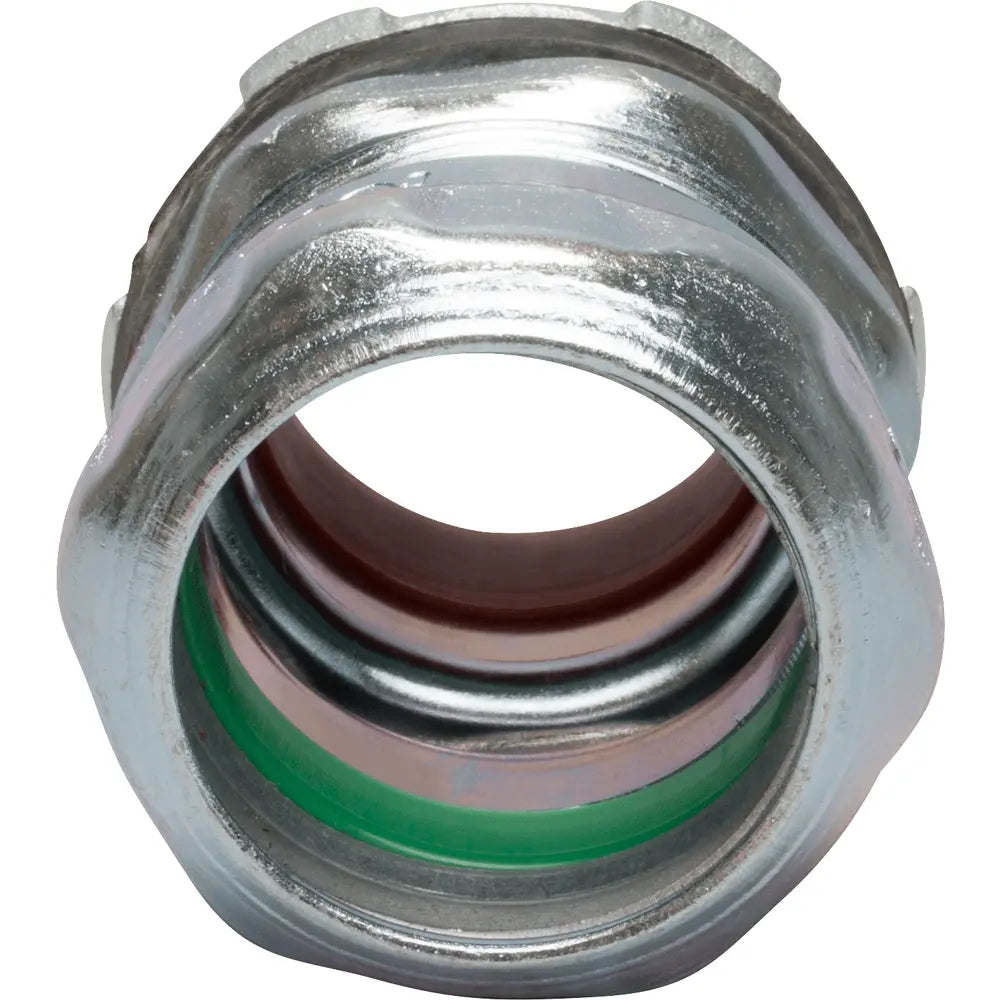

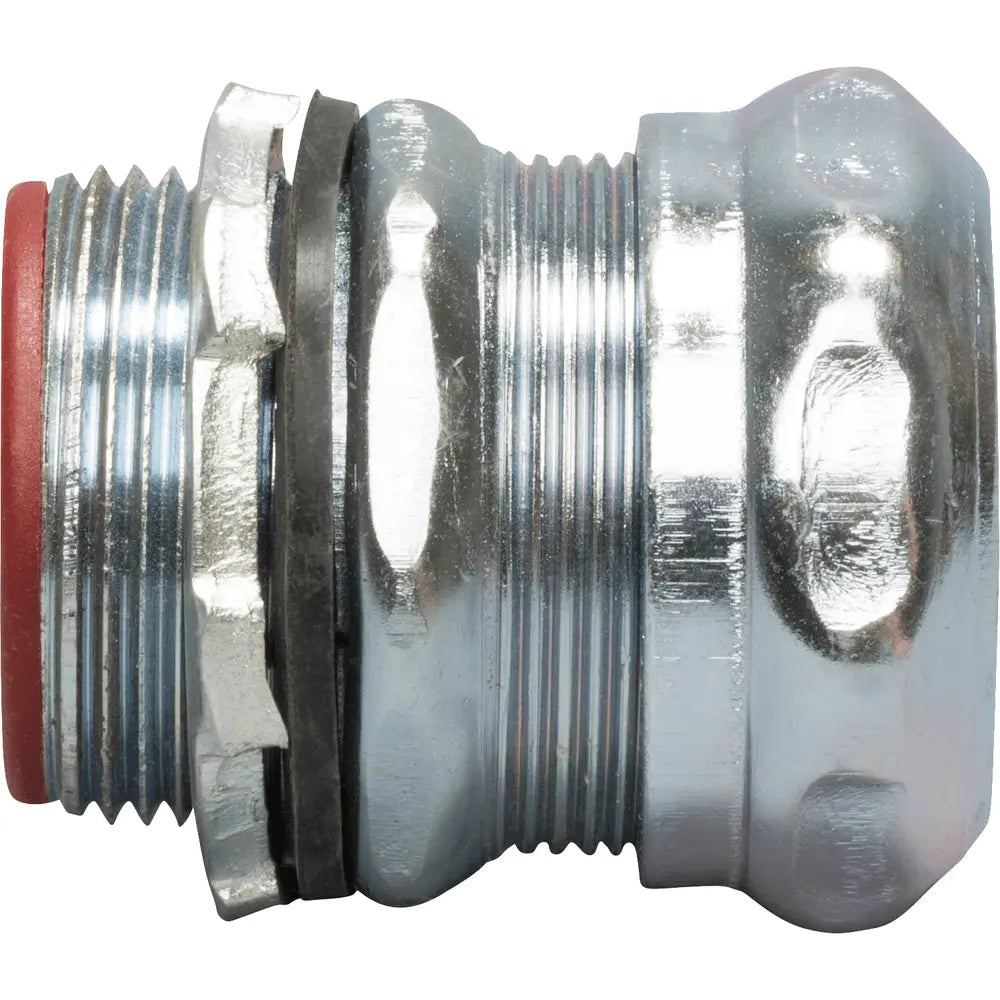

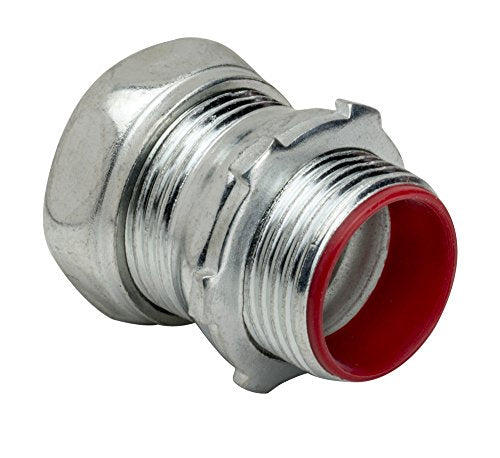

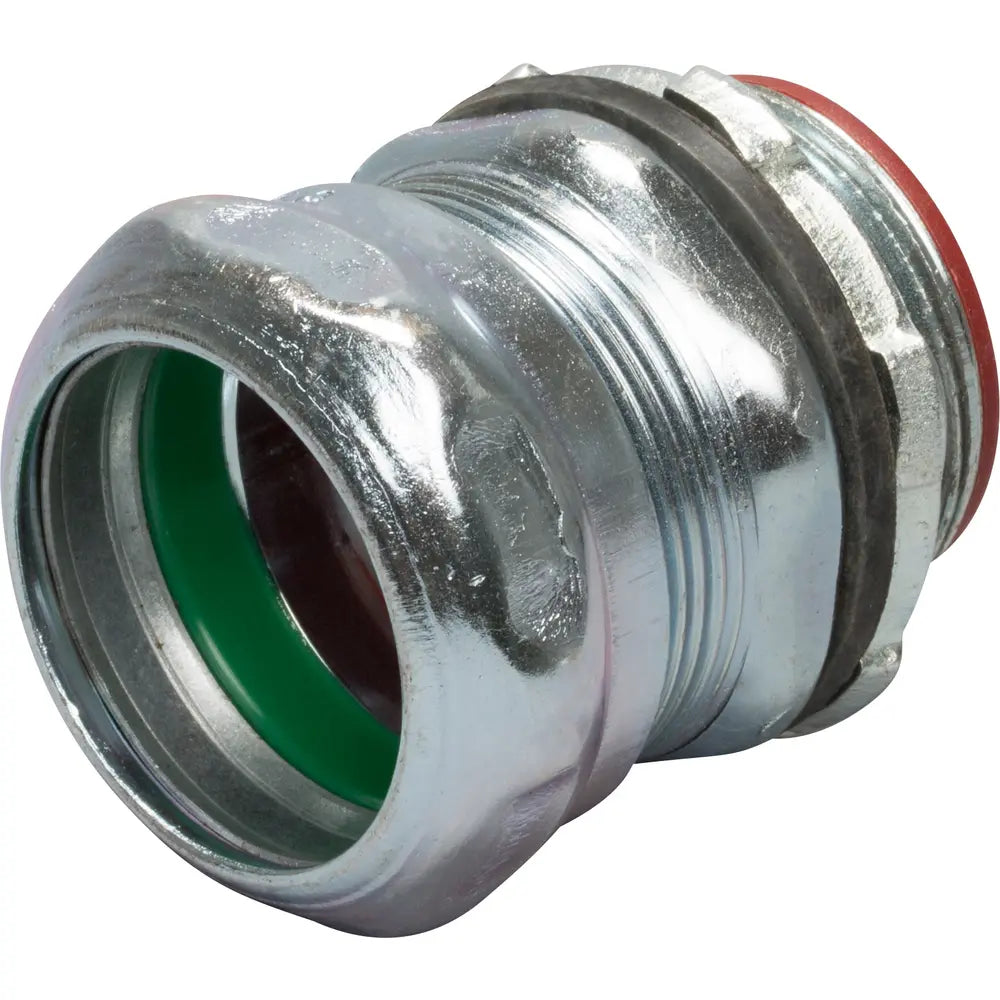

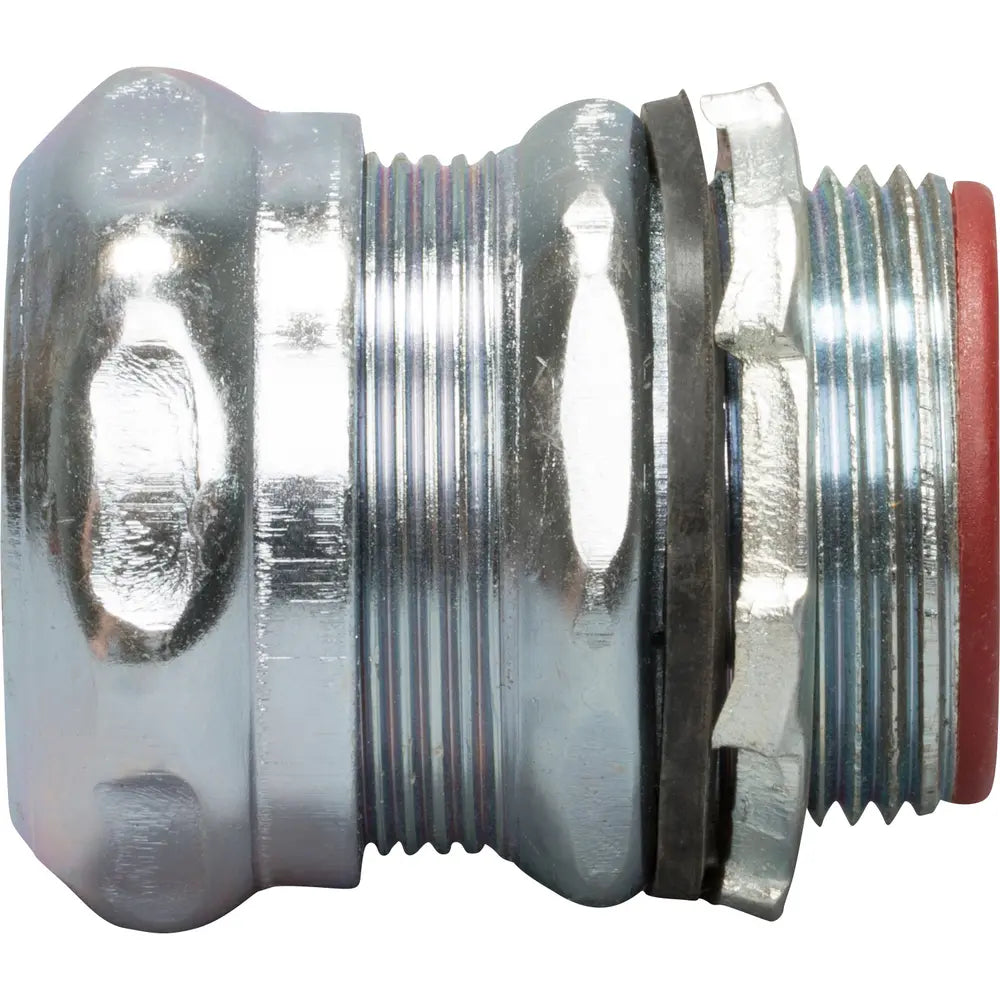

Topaz 654SIRT 1-1/4 inches Steel Raintight Compression Type Connector with Insulated Throat

Product Description

The Topaz 654SIRT EMT connector features a compression type assembly, providing a raintight and concrete-tight connection. Its rugged steel construction with a zinc-plated finish ensures durability. This connector securely bonds EMT thin wall conduits to electrical boxes or enclosures, with insulated throat models offering additional protection against abrasion. Pack of 1 Unit.

• Compression type connectors
• Concrete tight and raintight
• Assembled with a steel locknut & gasket

Product Highlights

Steel EMT connector with compression assembly ensures a secure, raintight connection for thin wall conduits.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 654SIRT
• Country of Origin: UKN

Technical Specifications

• Type: Compression - EMT Connectors
• Color: Gray
• Finish: Zinc Plated
• Length: 1.69 Inches
• Diameter: 1.01 Inches
• Material: Steel
• Mounting: Threaded
• Standard: cULus
• Connection: Compression
• Insulation: Insulated
• Trade Size: 1-1/4 in.
• MPN: 654SIRT
• Brand: TOPAZ
