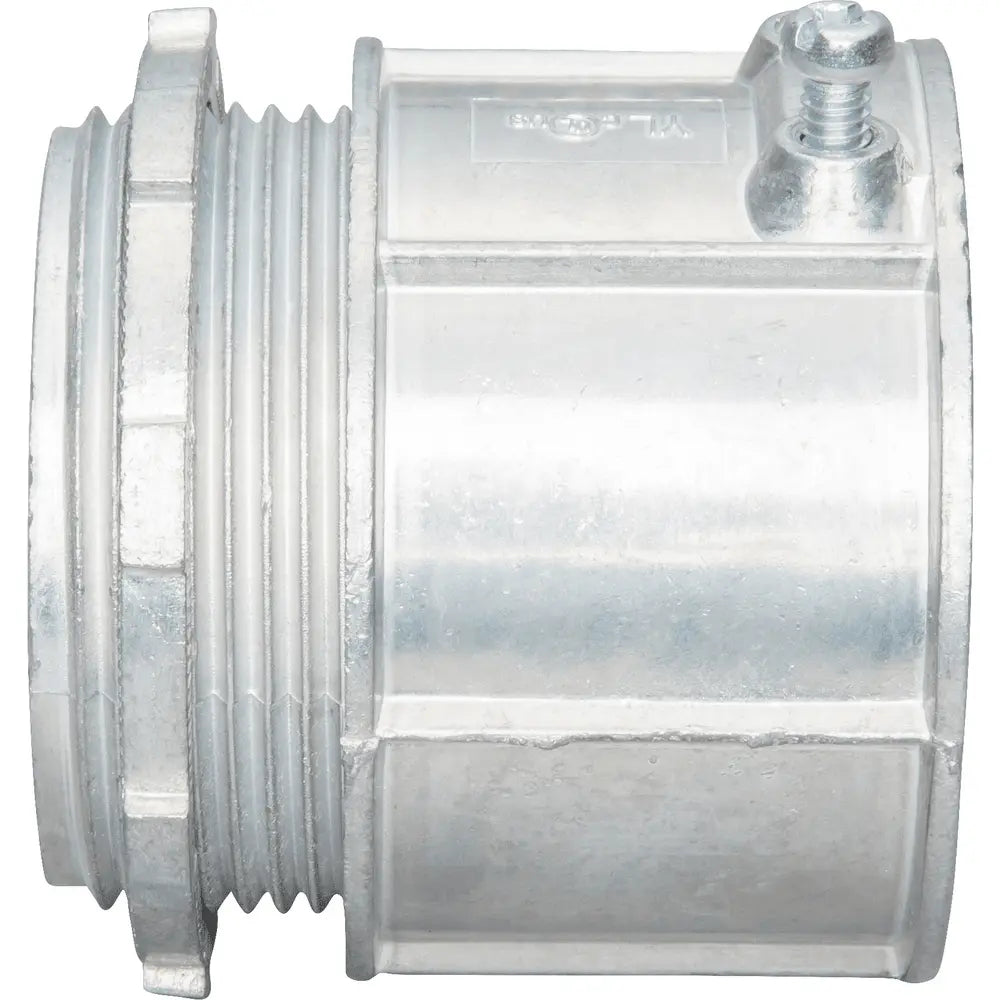

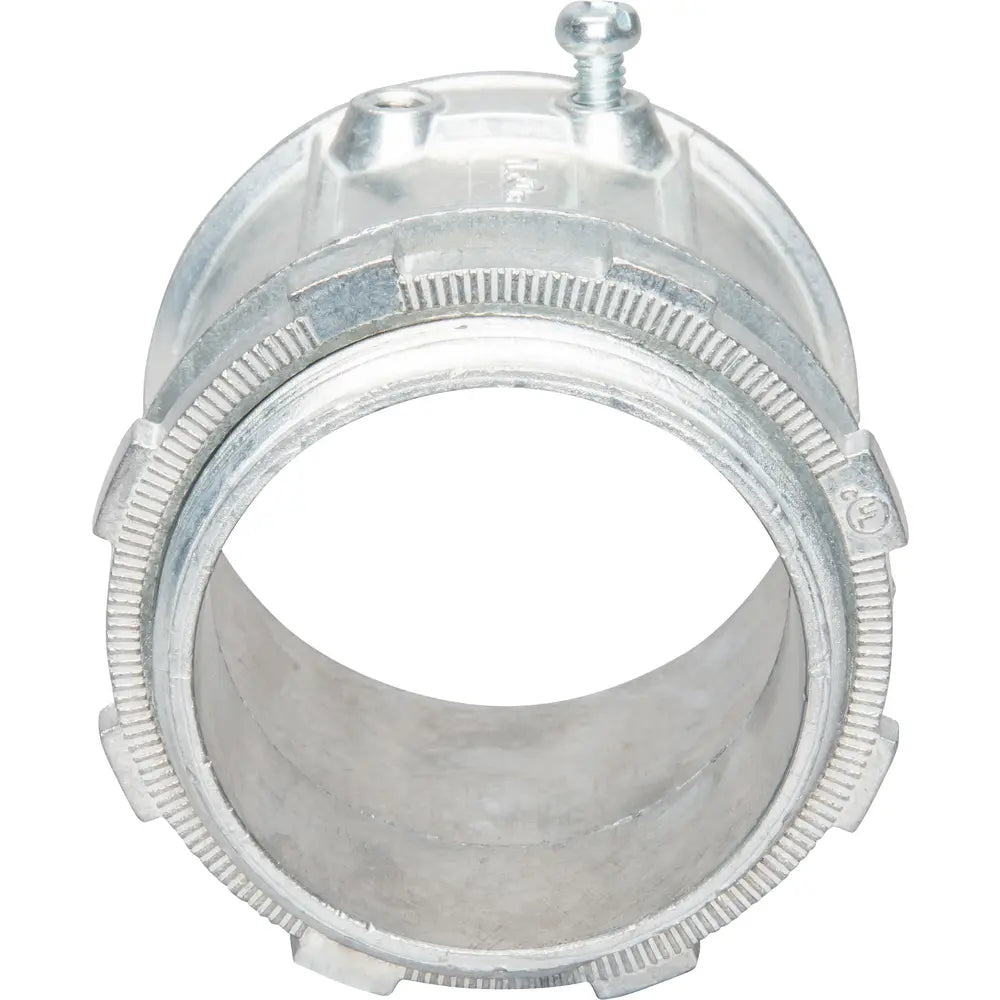

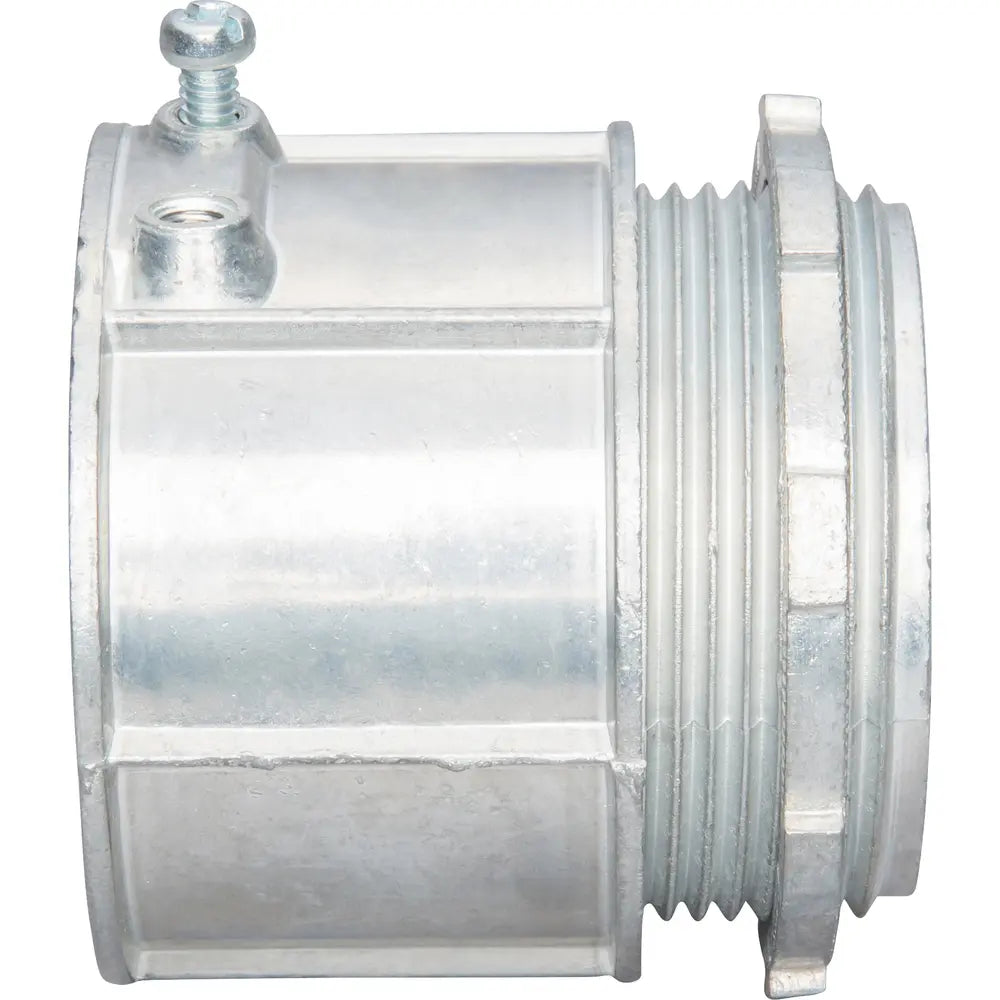

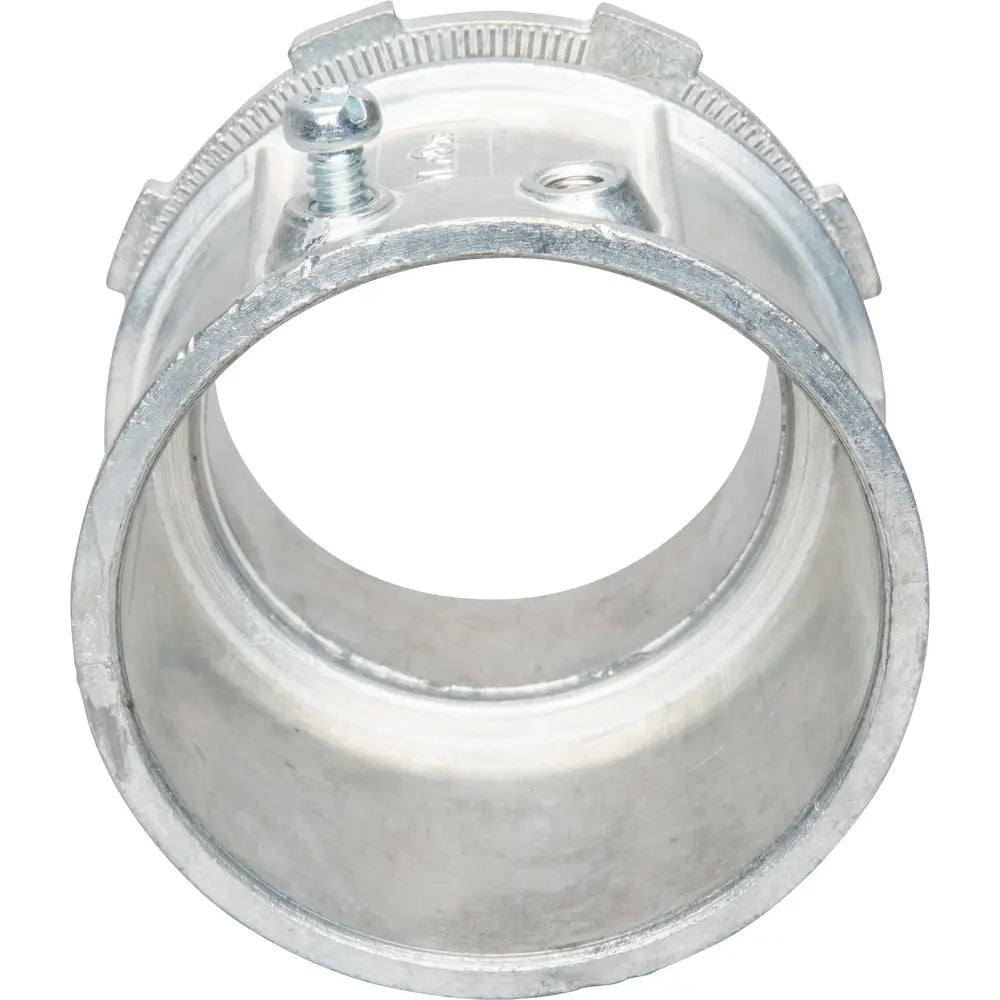

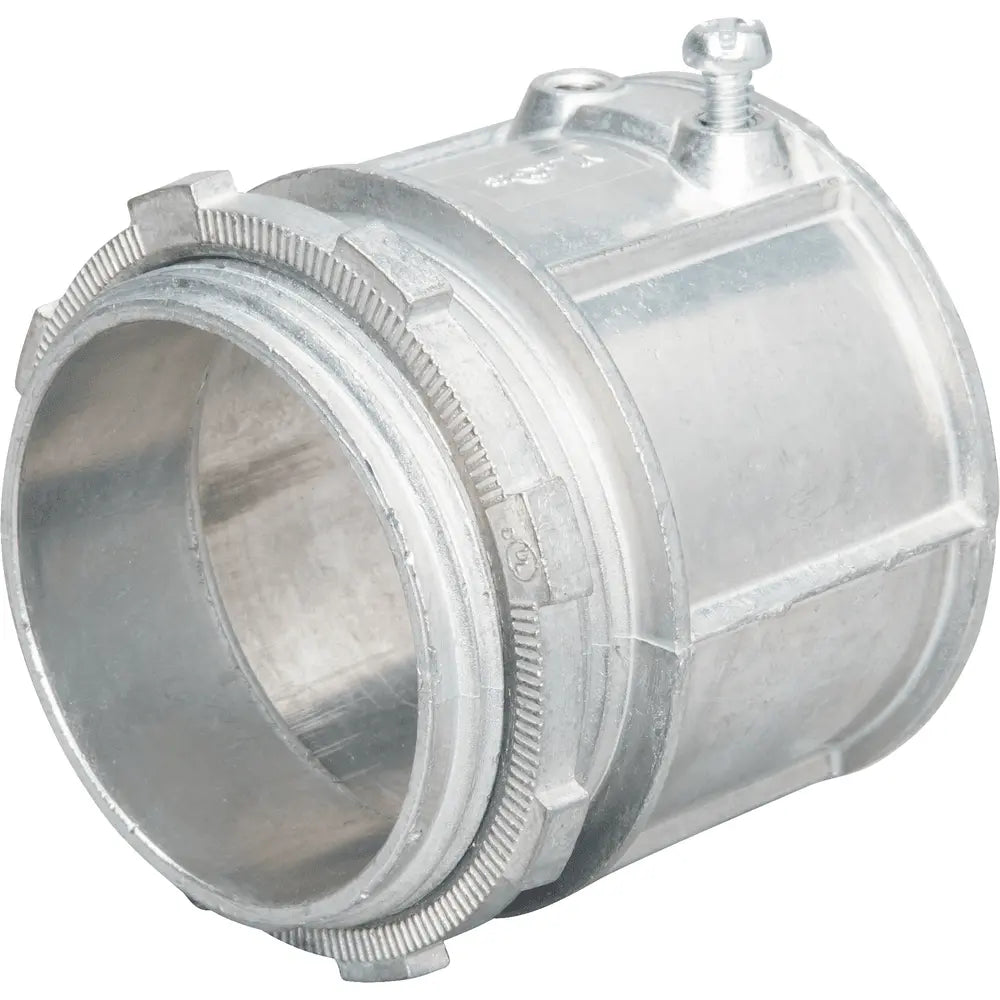

Topaz 639 3-1/2 inches Zinc Die Cast Set Screw Type Connector

Product Description

The Topaz 639 is a 3-1/2" Zinc Die Cast Set Screw Type Connector. These EMT connectors with set screw type assembly provide secure concrete tight protection when taped. They are suitable for use in dry locations to bond EMT thin wall conduits to electrical boxes or enclosures and offer superior corrosion resistance.

• Secure concrete tight protection when taped
• Superior corrosion resistance
• Assembled with a die cast locknut
• Available with insulated throat

Product Highlights

Zinc die cast set screw type connector for EMT conduits. Provides secure, corrosion-resistant connections in dry locations.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 639
• Country of Origin: UKN

Technical Specifications

• Type: Set-Screw - EMT Connectors
• Color: Gray
• Finish: Die-Cast
• Length: 3.46 Inches
• Diameter: 4.46 Inches
• Material: Zinc
• Mounting: Threaded
• Standard: cULus, UL, CSA
• Connection: Set Screw
• Insulation: Non-Insulated
• Trade Size: 3-1/2 in.
• Environmental Conditions: Dry Location
• Application: Use in dry locations to bond EMT thin wall conduits to electrical boxes or enclosures
• Brand Name: Topaz
• Brand Part Number: 639
• Item UPC: 751338163706
• Manufacturer: Topaz
• Manufacturer Part Number: 639
