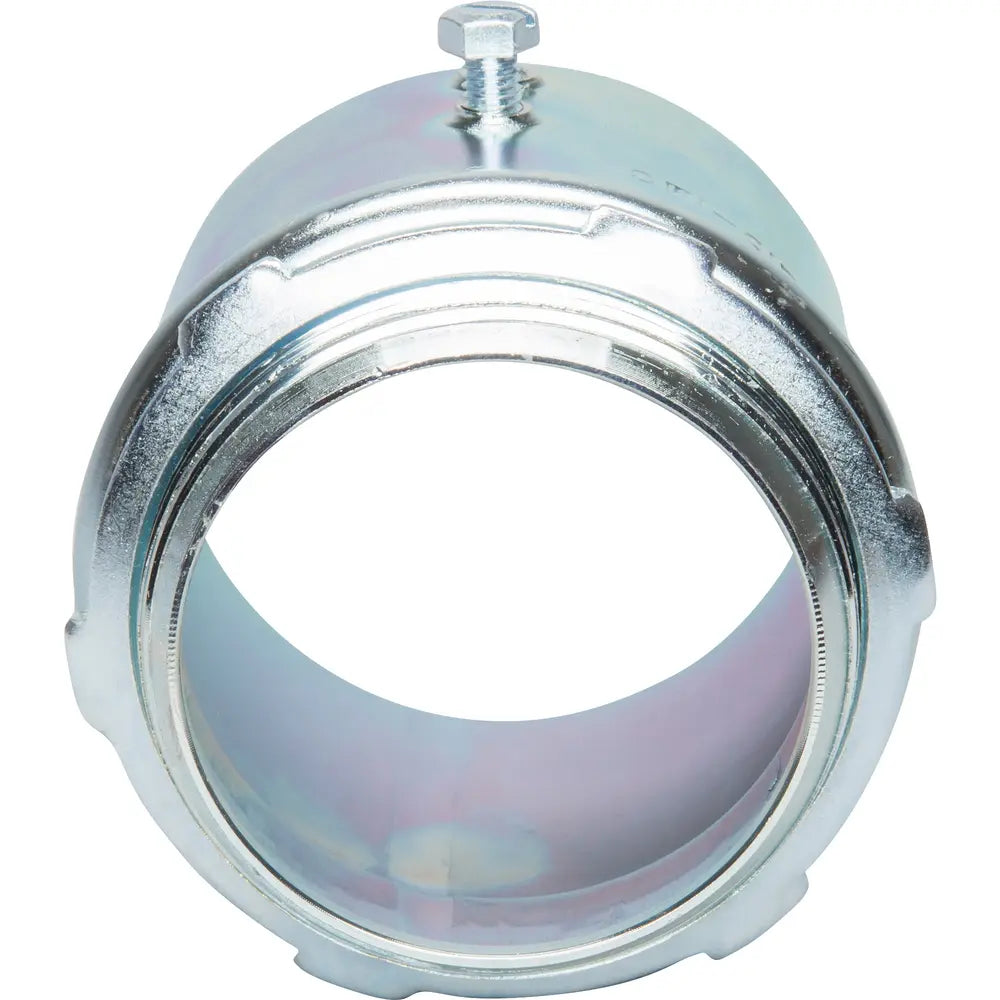

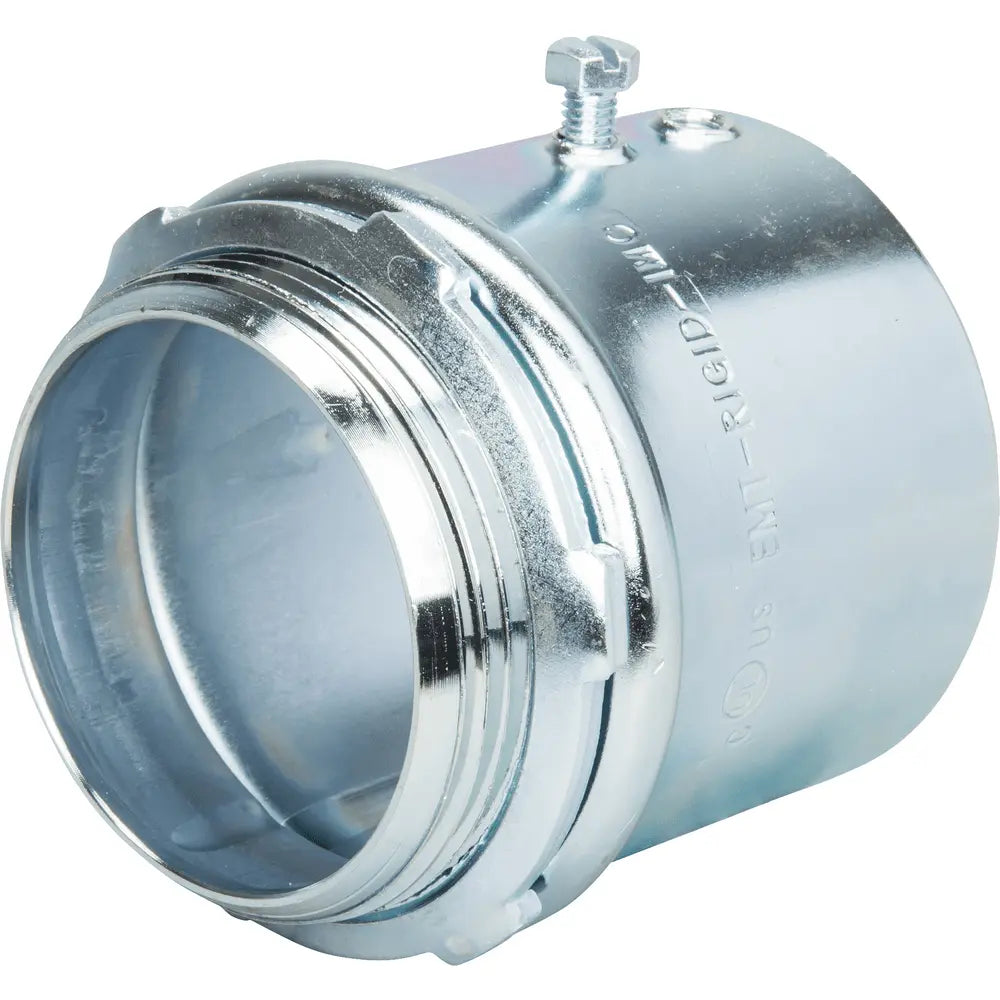

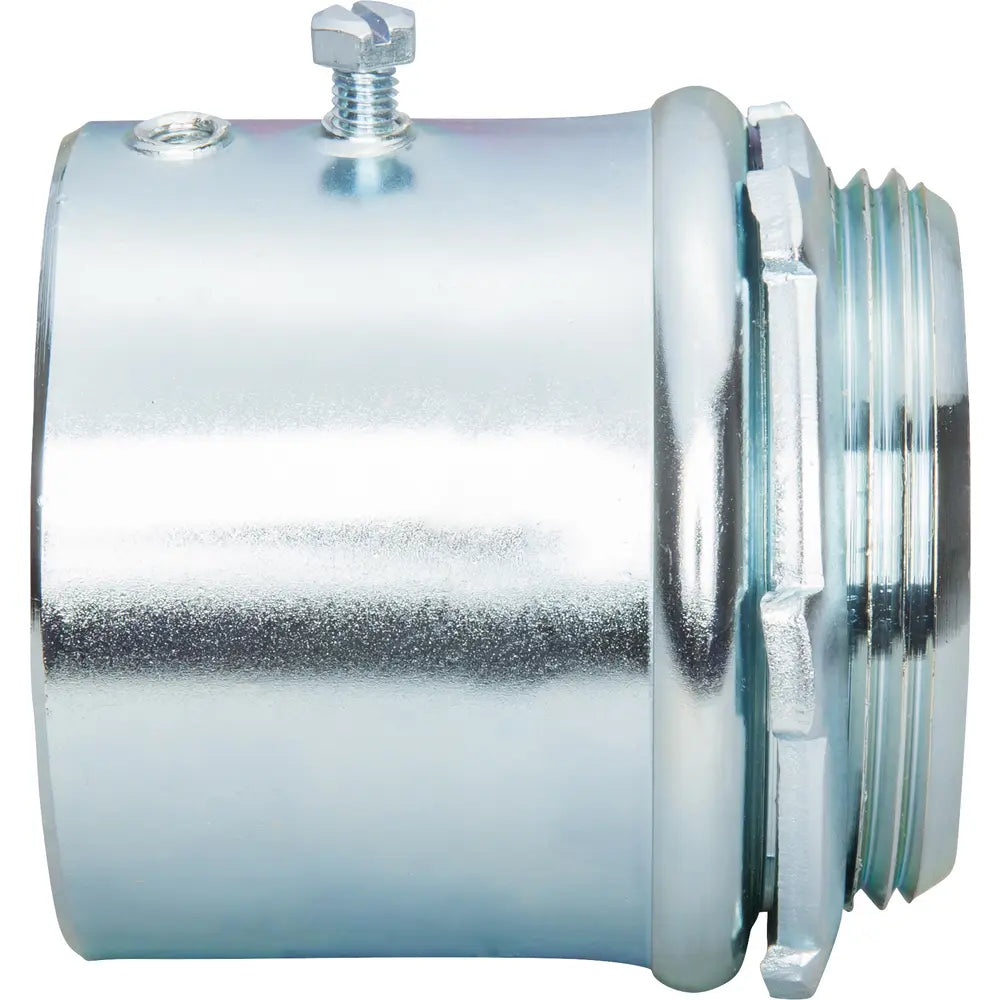

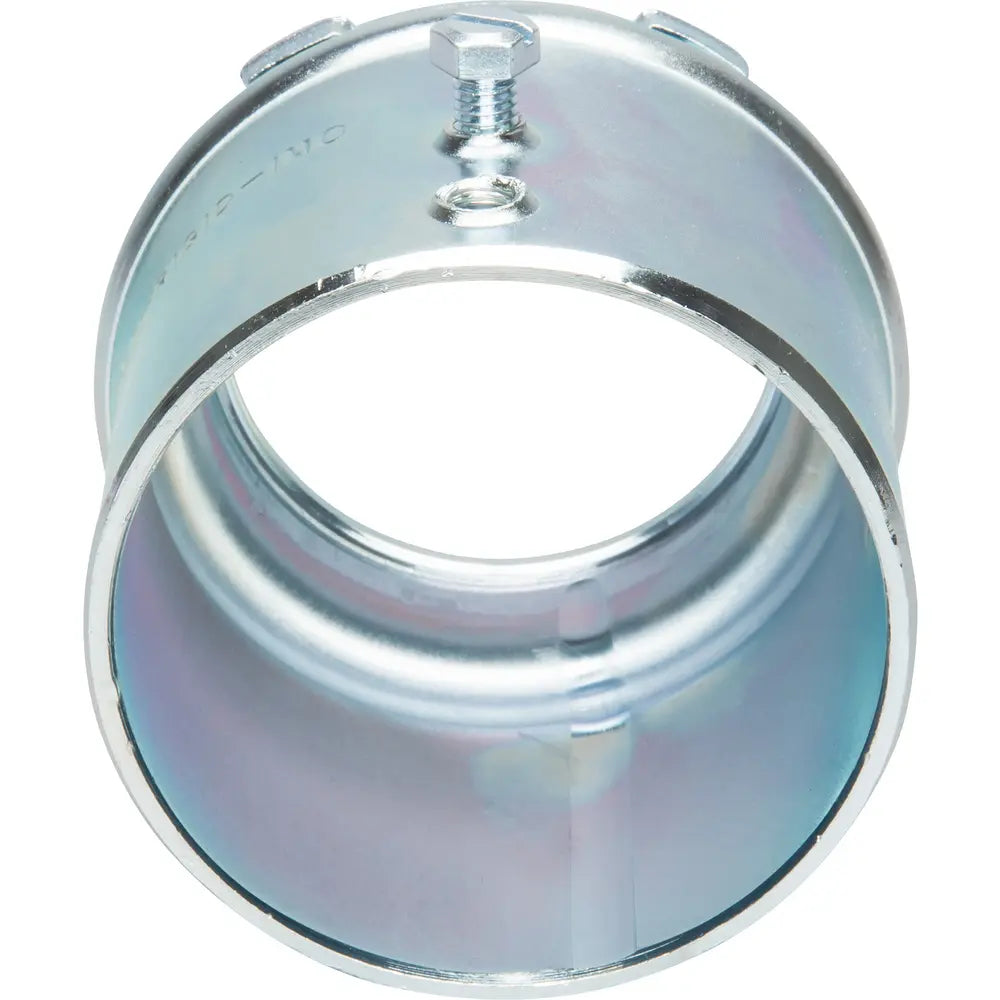

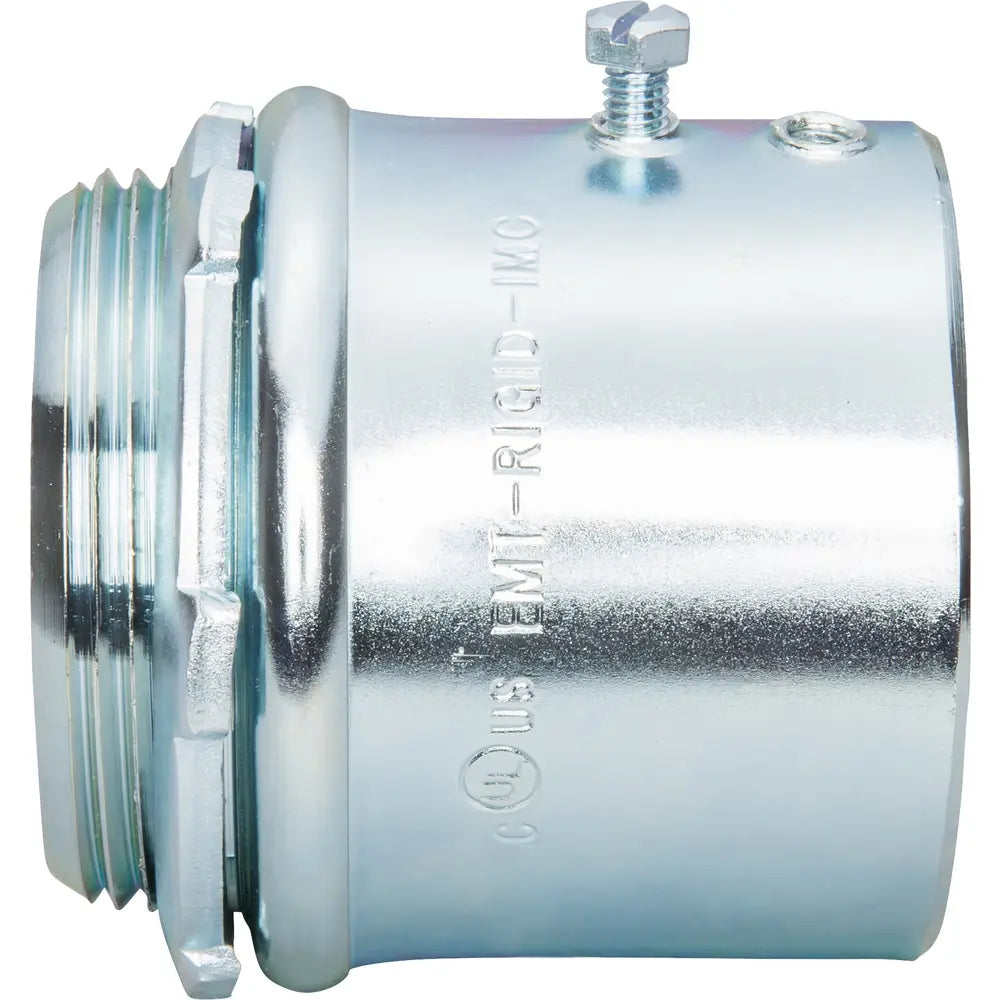

Topaz 637S 2-1/2 inches Steel Set Screw Connector

Product Description

The Topaz 637S 2-1/2" Steel Set Screw Connector joins EMT to a box or enclosure. It features a set-screw connection and bare insulation. Constructed from steel with a zinc-plated finish, this connector meets cULus standards and is suitable for use with EMT/Rigid conduit.

• Threaded x set-screw connection
• Bare insulation
• Steel construction with zinc-plated finish

Product Highlights

Connects EMT to boxes or enclosures with a secure set-screw mechanism. Steel build ensures durability.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 637S
• Country of Origin: UKN

Technical Specifications

• Type: Set-Screw - EMT Connectors
• Finish: Zinc Plated
• Material: Steel
• Standard: cULus
• Connection: Set Screw
• Insulation: Non-Insulated
• Trade Size: 2-1/2 in.
• Suitable For Use With: EMT/Rigid Conduit
• Application: For joining EMT to box or enclosure
• Standard & Approvals: UL 514B/E148716, CSA Certified, US Federal Specification A-A-50553, NEMA/ANSI FB-1, Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D
• Model / MPN: 637S
