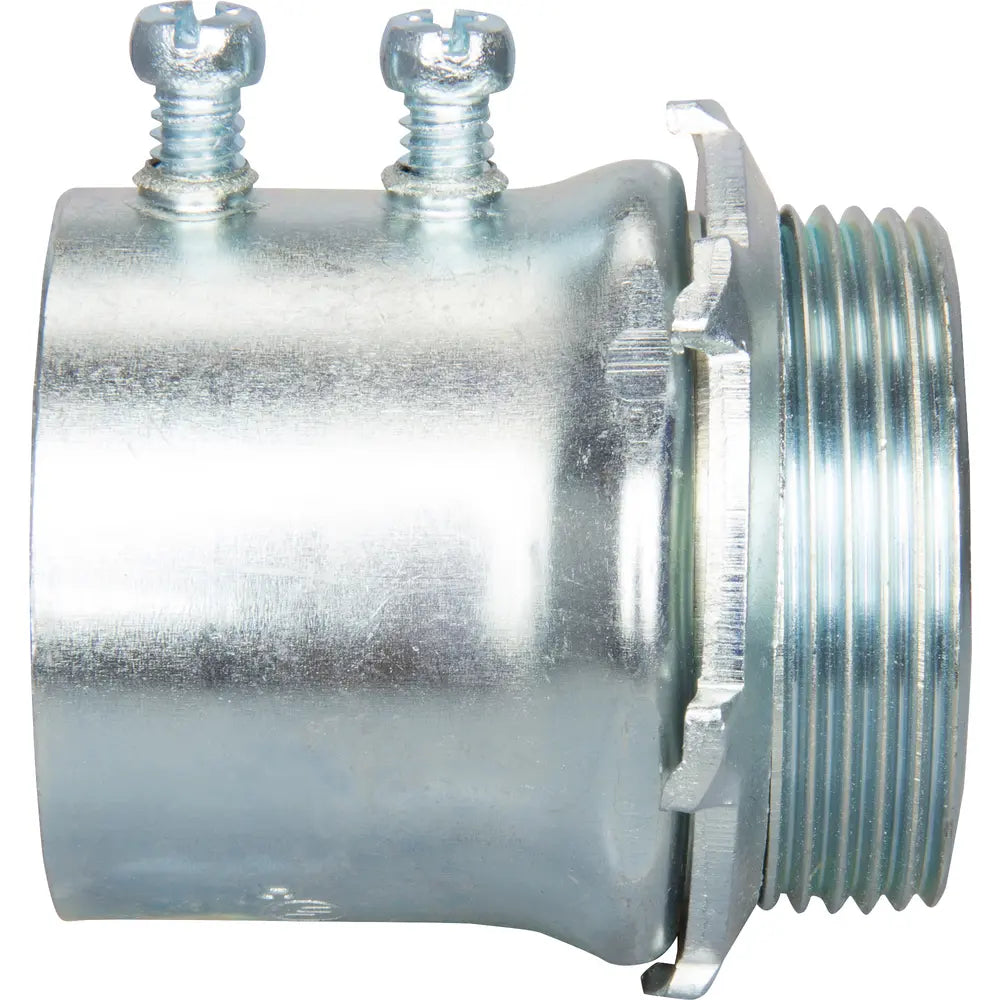

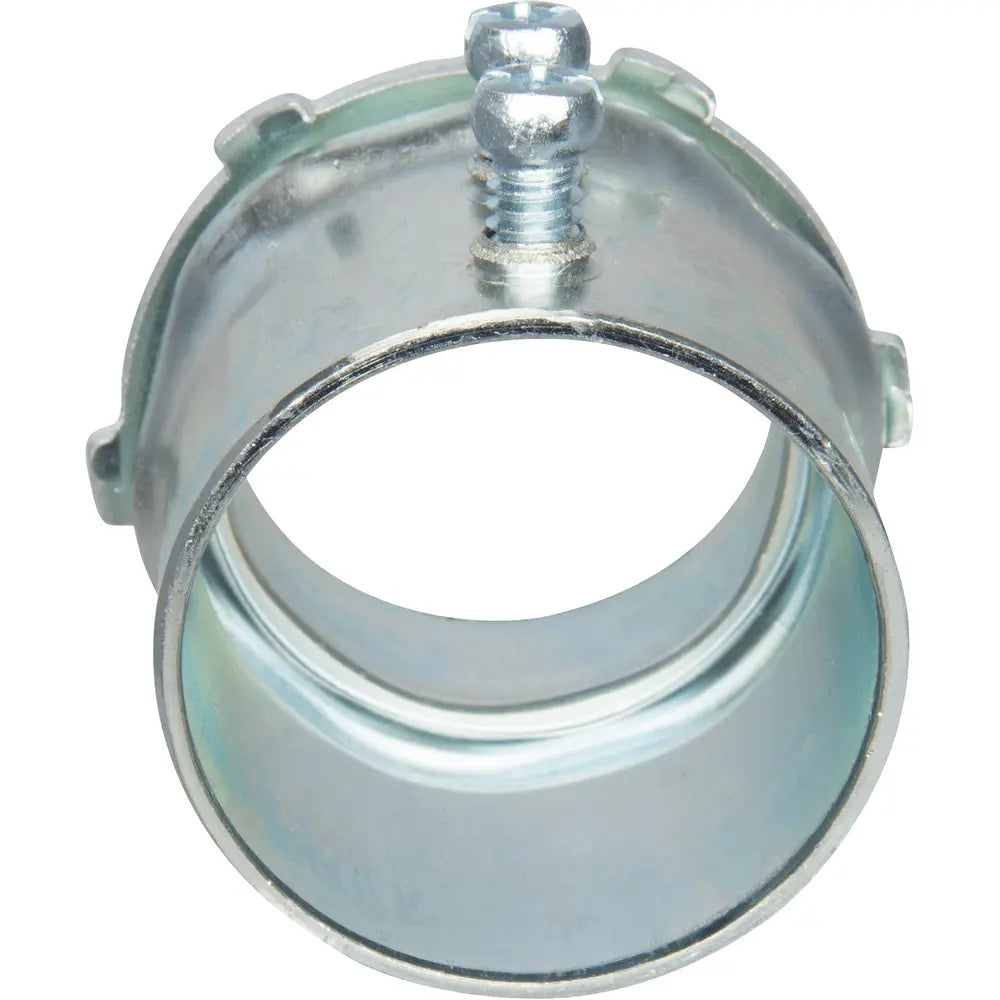

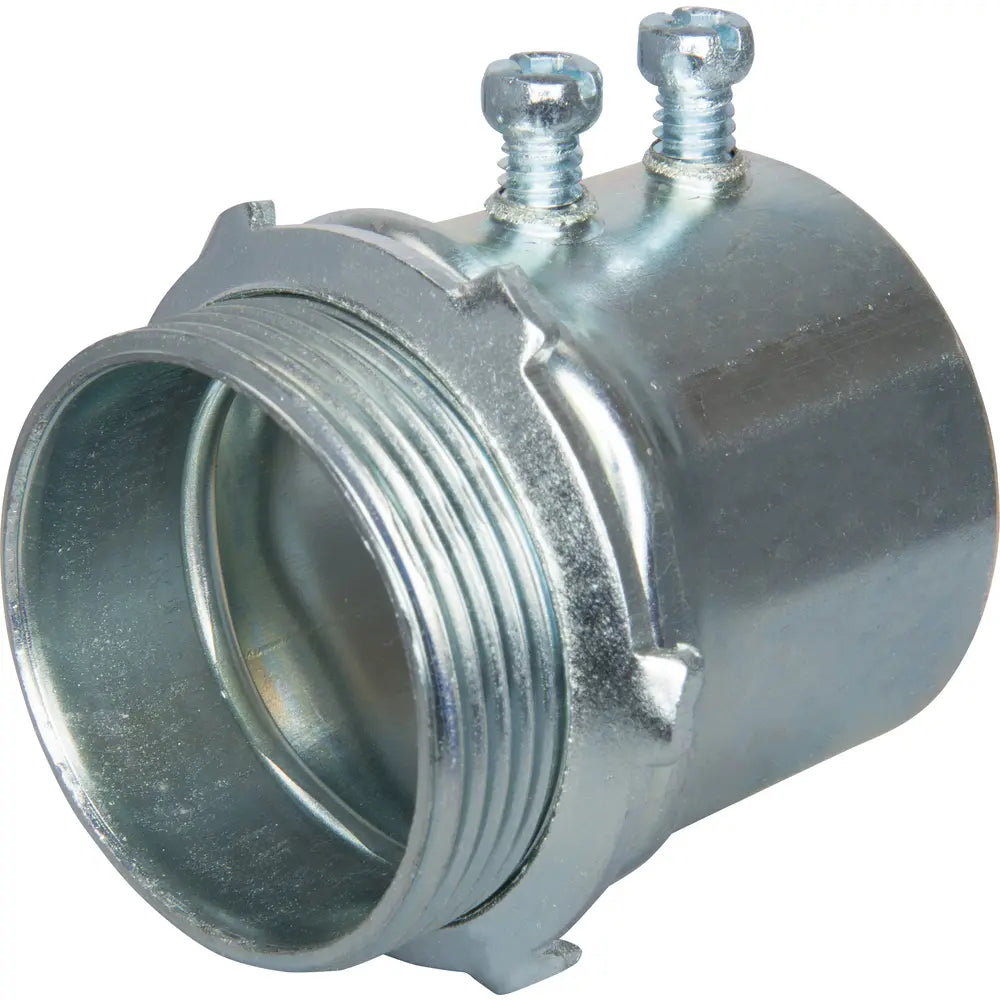

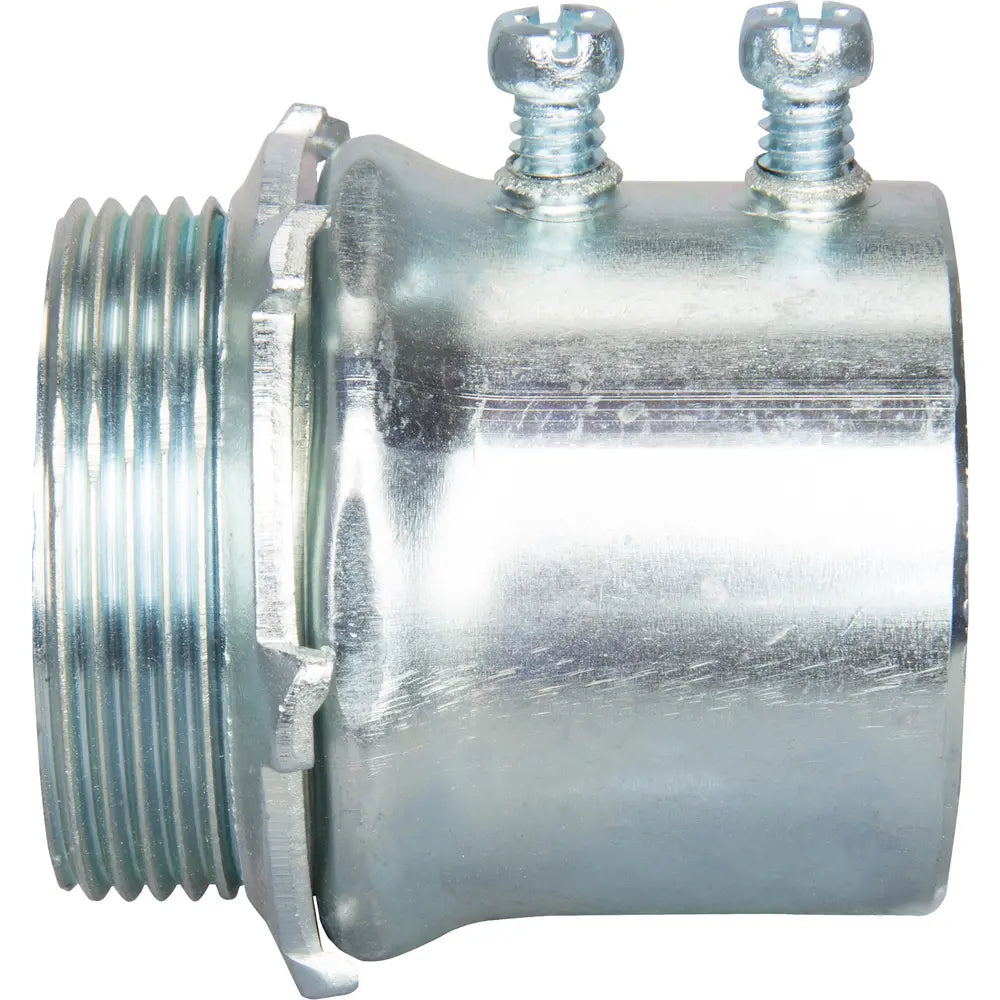

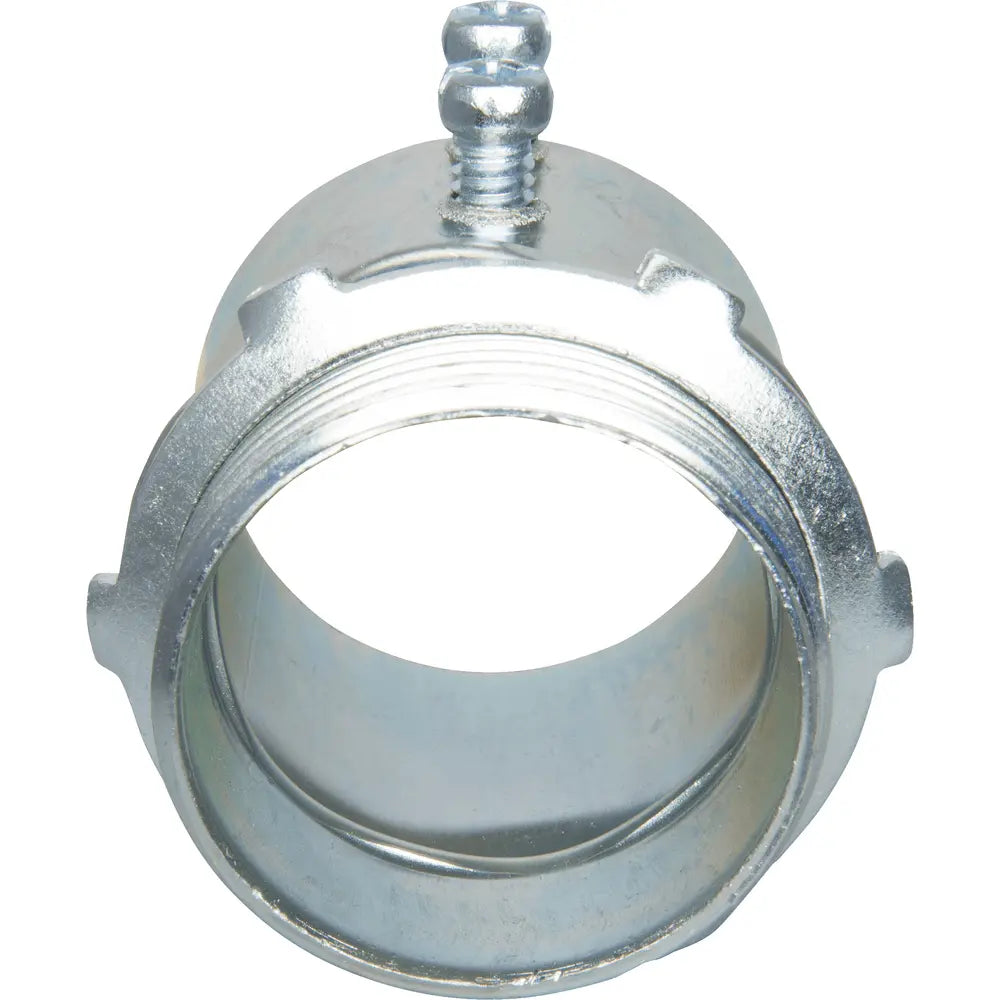

Topaz 635S 1-1/2 inches Steel Set Screw Connector

Product Description

The Topaz 635S 1-1/2" Steel Set Screw Connector joins EMT to a box or enclosure. It provides secure concrete tight protection when taped. This set screw type connector is assembled with a steel locknut. It is constructed of strong and long lasting steel with a zinc plated finish.

• Set screw type connector
• Concrete tight when taped
• Assembled with a steel locknut

Product Highlights

The Topaz 635S is for use in dry locations to bond EMT thin wall conduits to electrical boxes or enclosures.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 635S
• Country of Origin: UKN

Technical Specifications

• Type: Set-Screw - EMT Connectors
• Finish: Zinc Plated
• Material: Steel
• Standard: cULus
• Connection: Set Screw
• Insulation: Non-Insulated
• Trade Size: 1-1/2 in.
• Brand: Topaz
• Manufacturer: Buffalo Electric Supply
• Model / MPN: 635S
• Suitable For Use With: EMT Conduit
• Application: For joining EMT to box or enclosure
• Standard & Approvals: UL 514B/E148720, CSA Certified, US Federal Specification A-A-50553, NEMA/ANSI FB-1, Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D
• Model: 635S
• Country of Origin: United States
• Category: Business & Industrial
• Subcategory: Electrical Equipment & Supplies
• Manufacturer Part Number: 635S
