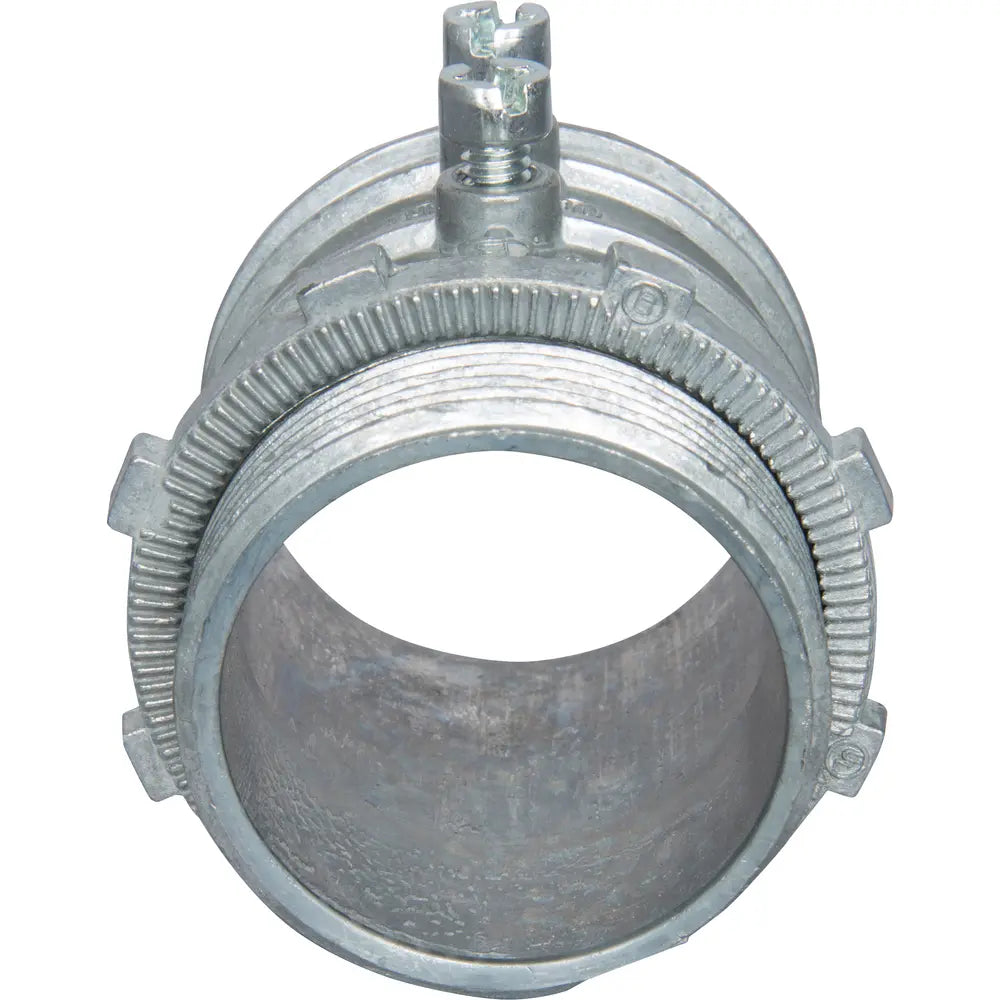

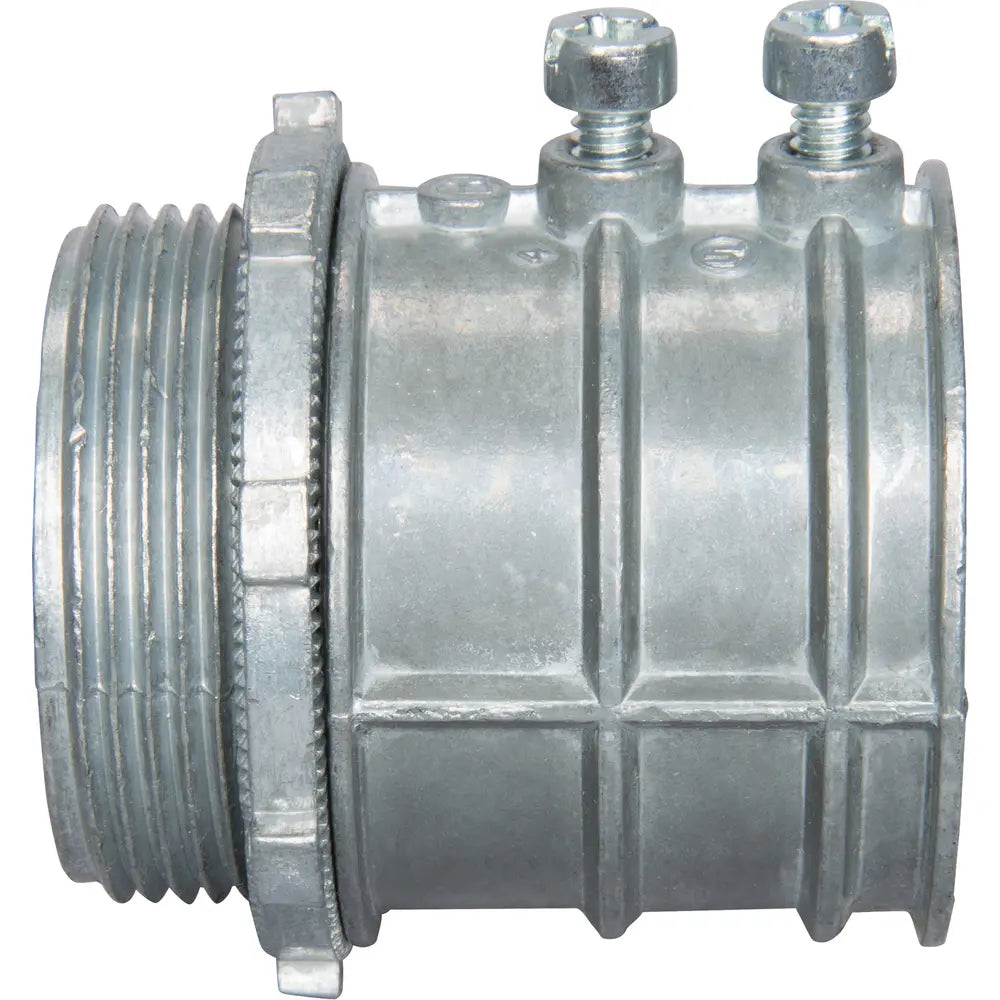

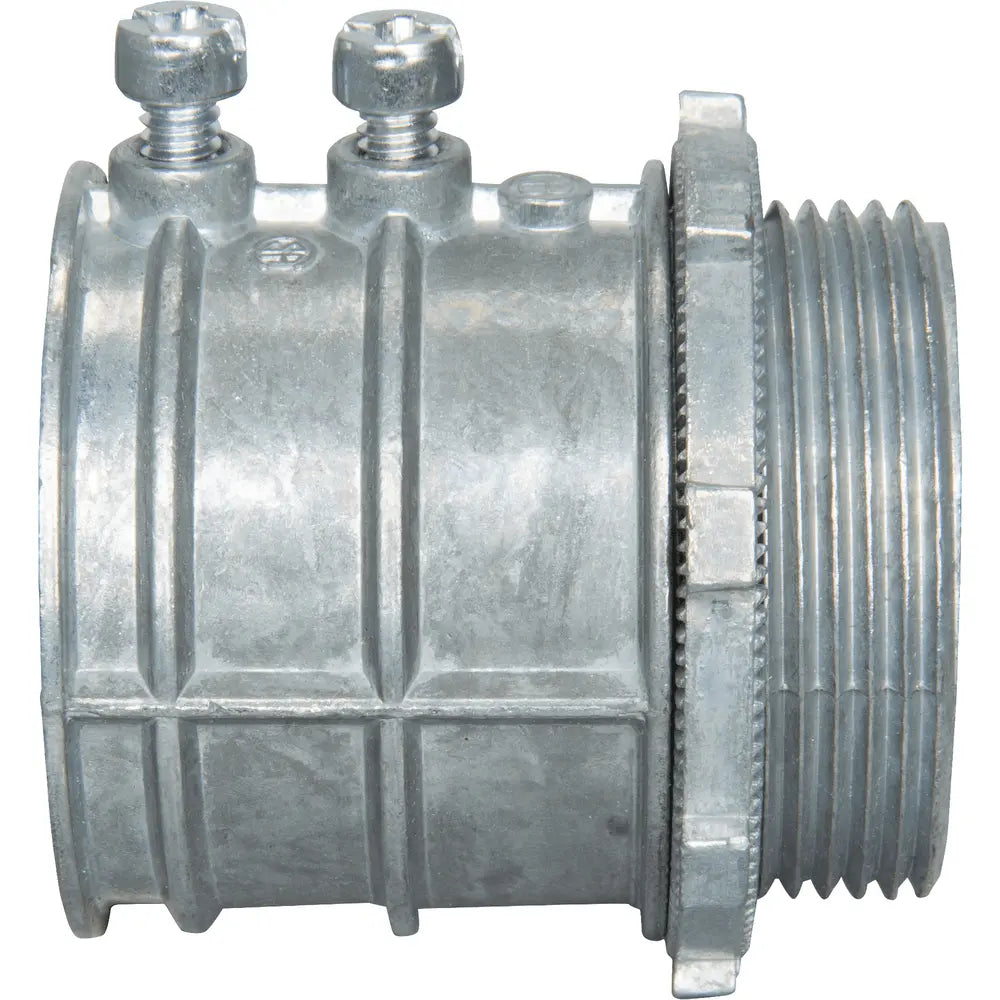

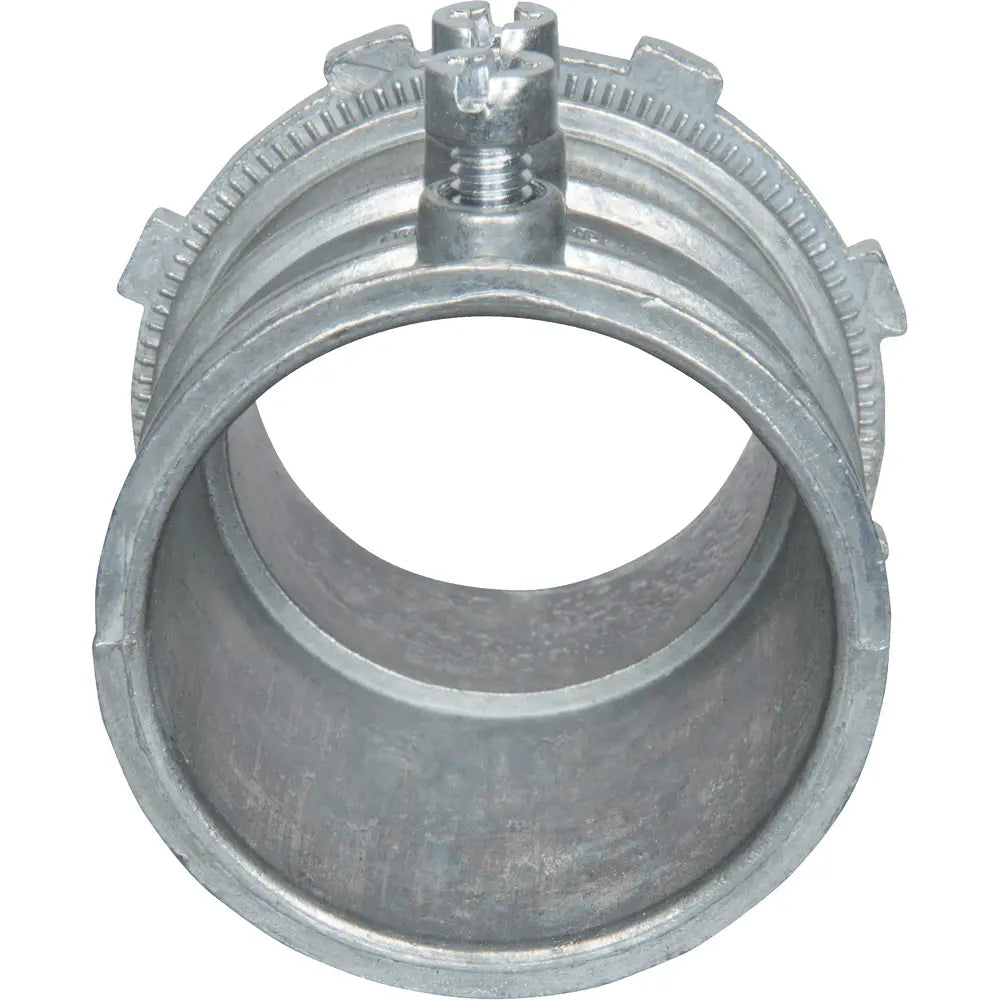

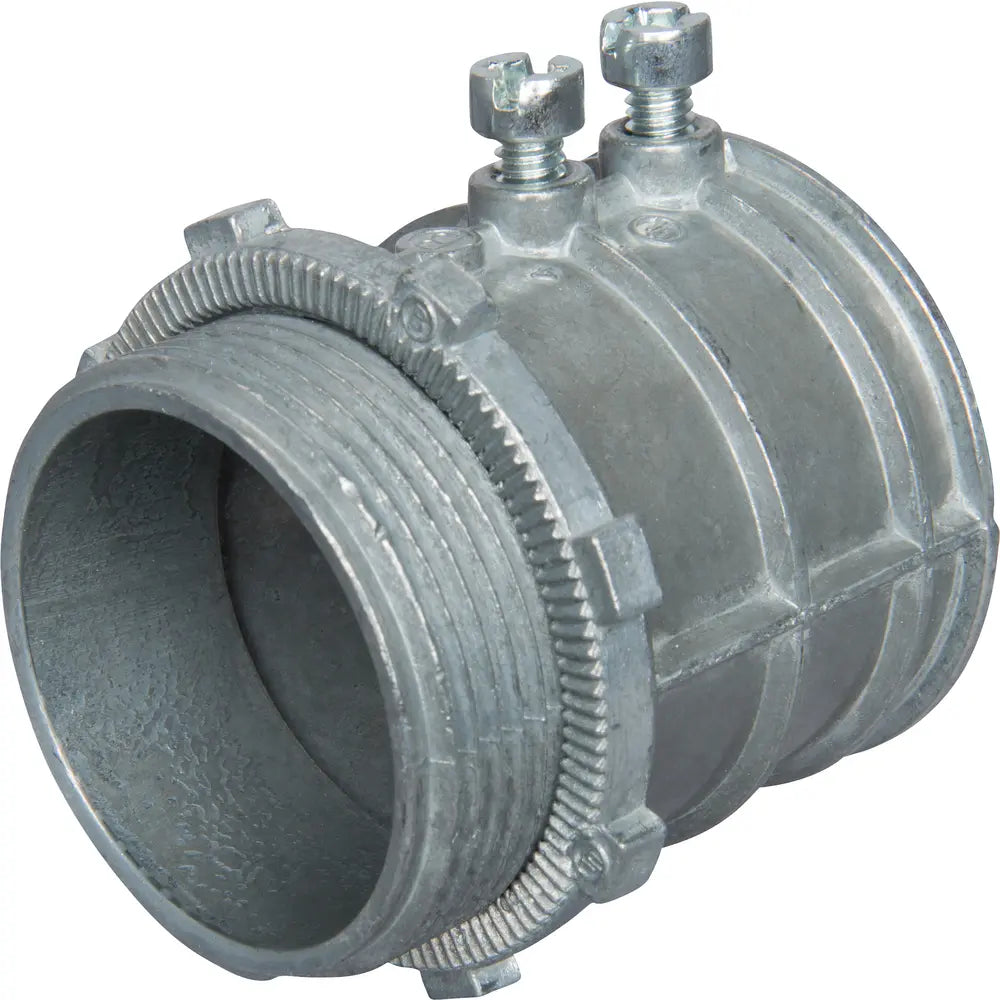

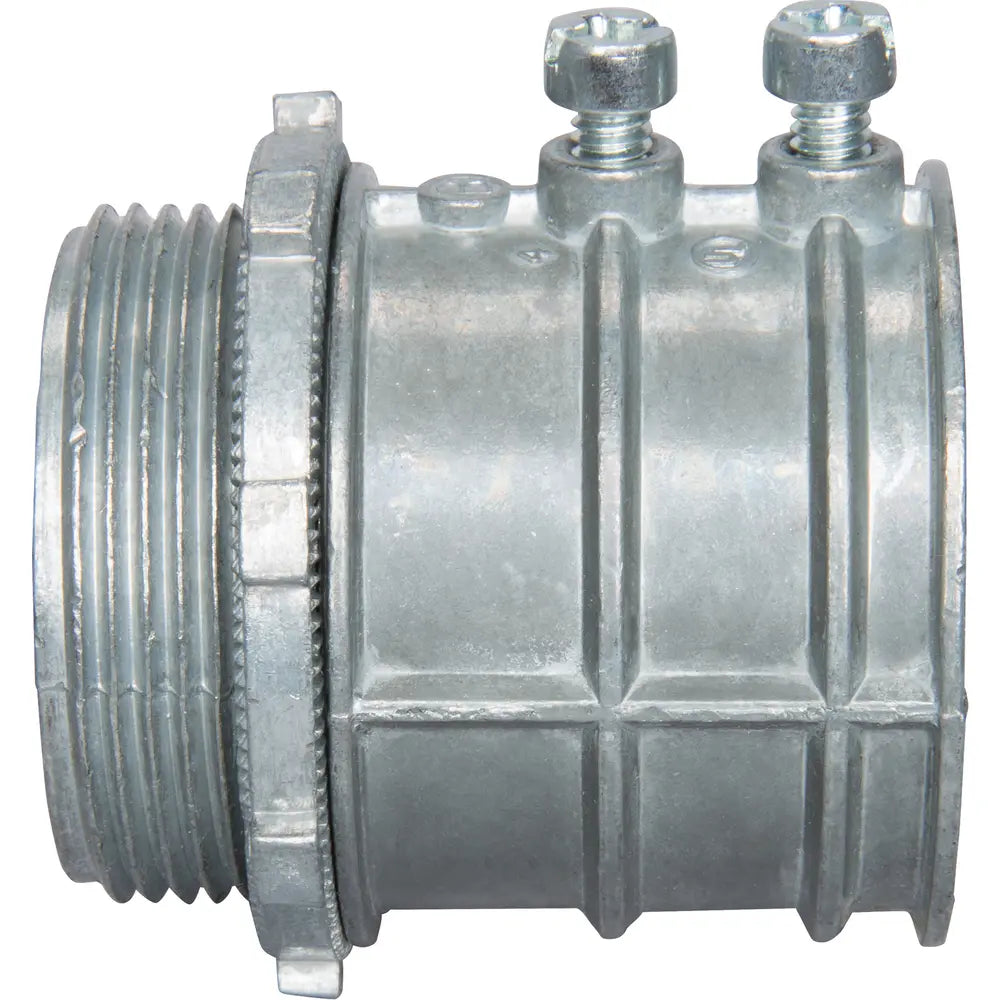

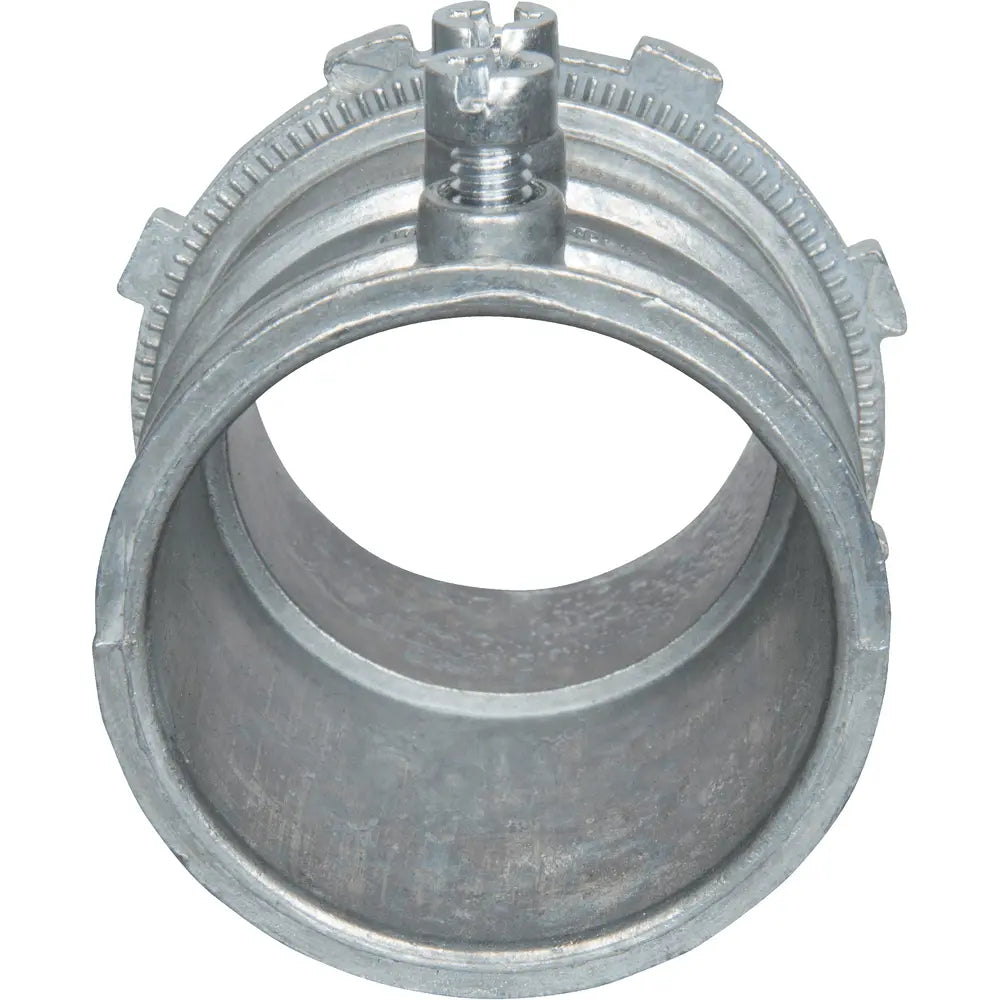

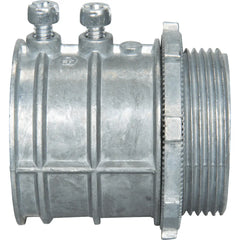

Topaz 635 1-1/2 inches Zinc Die Cast Set Screw Type Connector

Product Description

The Topaz 635 EMT connector with set screw type assembly provides secure concrete tight protection when taped and is available in trade sizes from 1/2" to 4". It is suitable for use in dry locations to bond EMT thin wall conduits to electrical boxes or enclosures. These set screw connectors offer superior corrosion resistance.

• Concrete tight when taped
• Assembled with a die cast locknut
• Superior corrosion resistance

Product Highlights

The Topaz 635 EMT connector is constructed of durable zinc die cast, is UL listed, and NEMA/ANSI FB-1 compliant.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 635
• Country of Origin: UKN

Technical Specifications

• Type: Set-Screw - EMT Connectors
• Finish: Die-Cast
• Length: 2.28 Inches
• Diameter: 1.18 inches
• Material: Zinc
• Mounting: Threaded
• Standard: cULus, UL, CSA
• Connection: Set Screw
• Insulation: Non-Insulated
• Trade Size: 1-1/2 in.
• Environmental Conditions: Dry Location
• Model / MPN: 635
• Brand Name: Topaz
• Brand Part Number: 635
