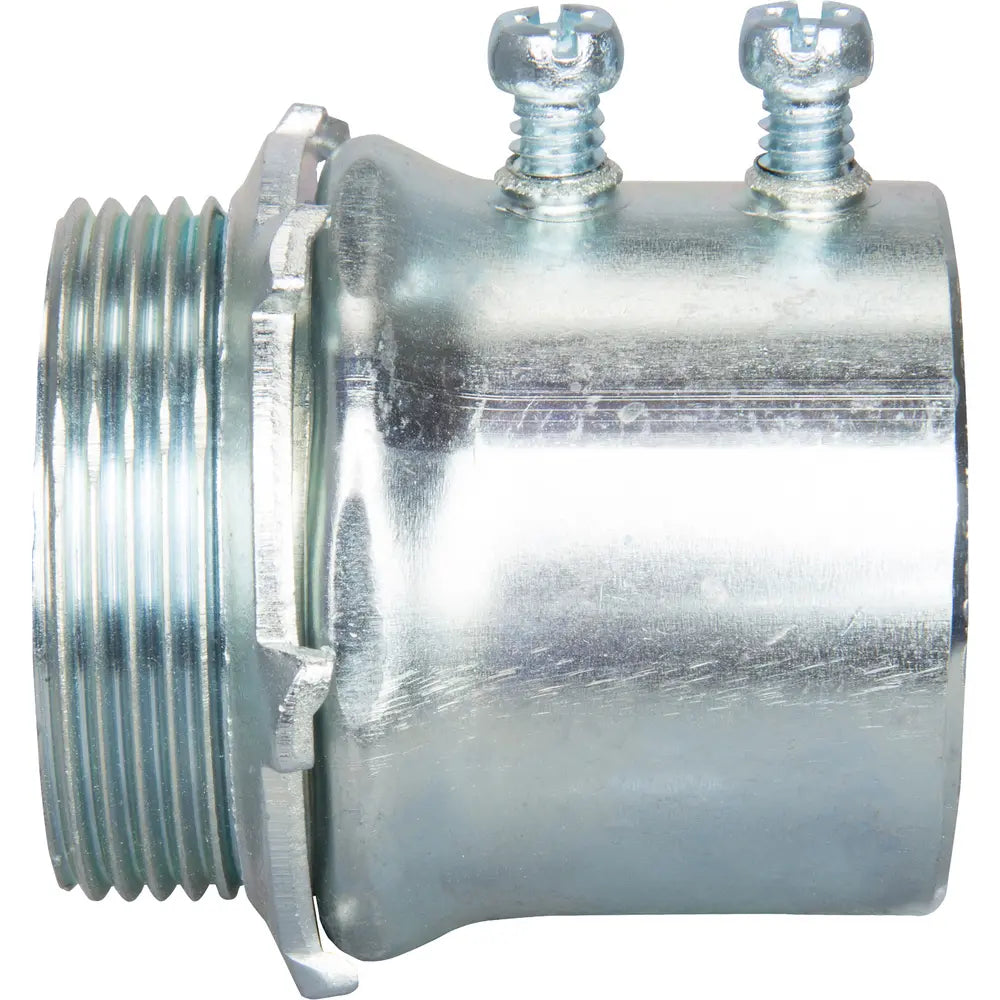

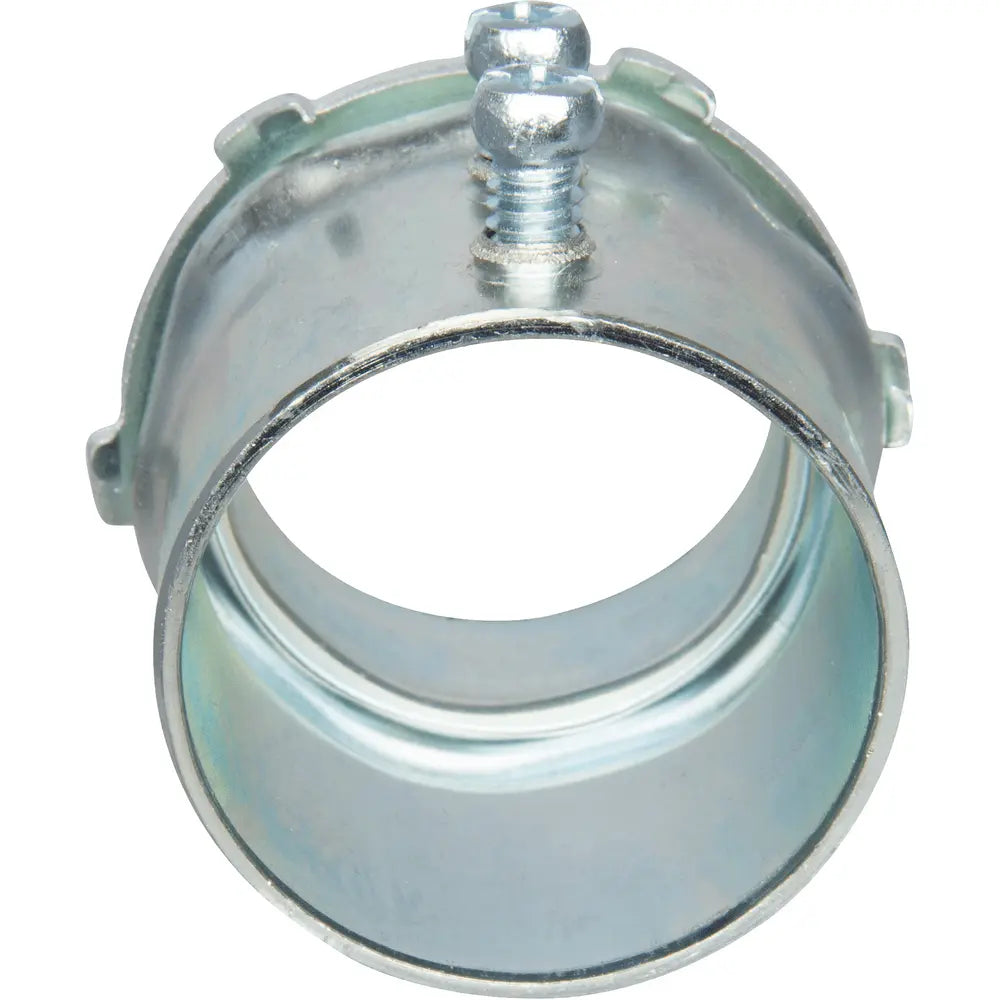

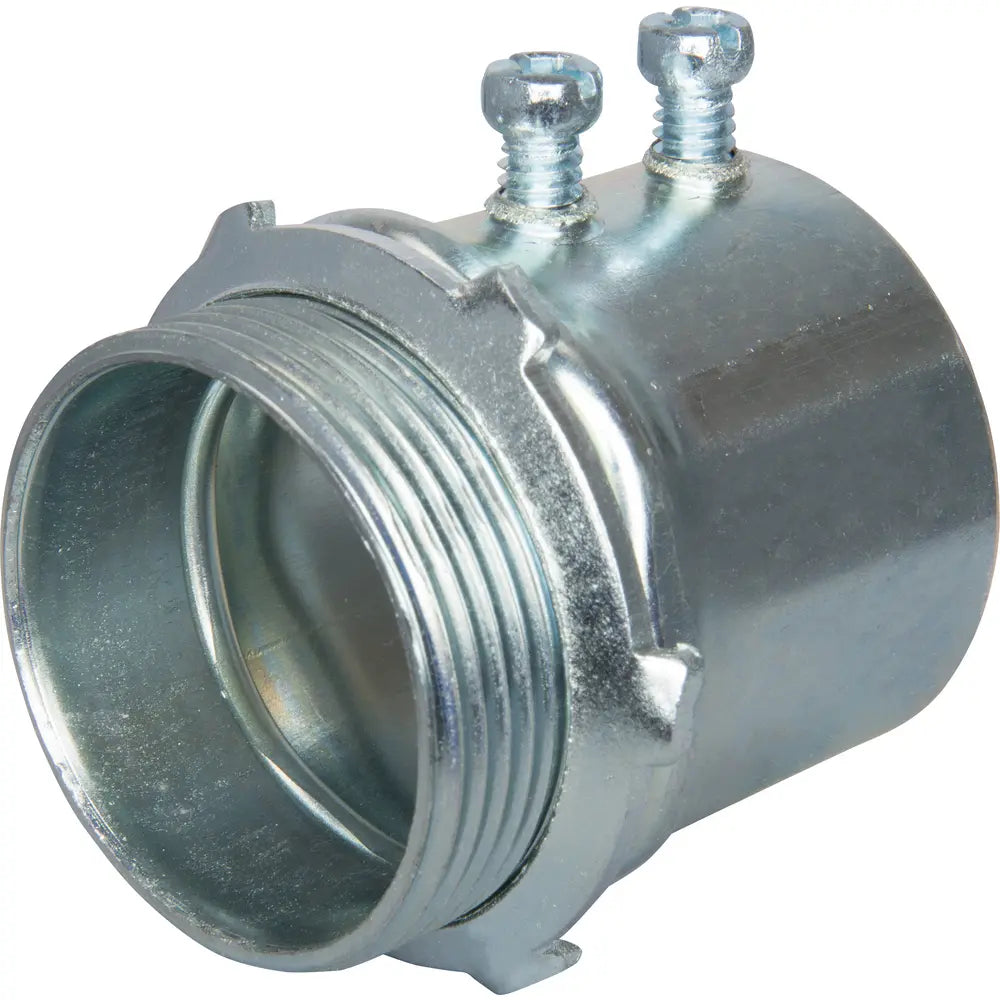

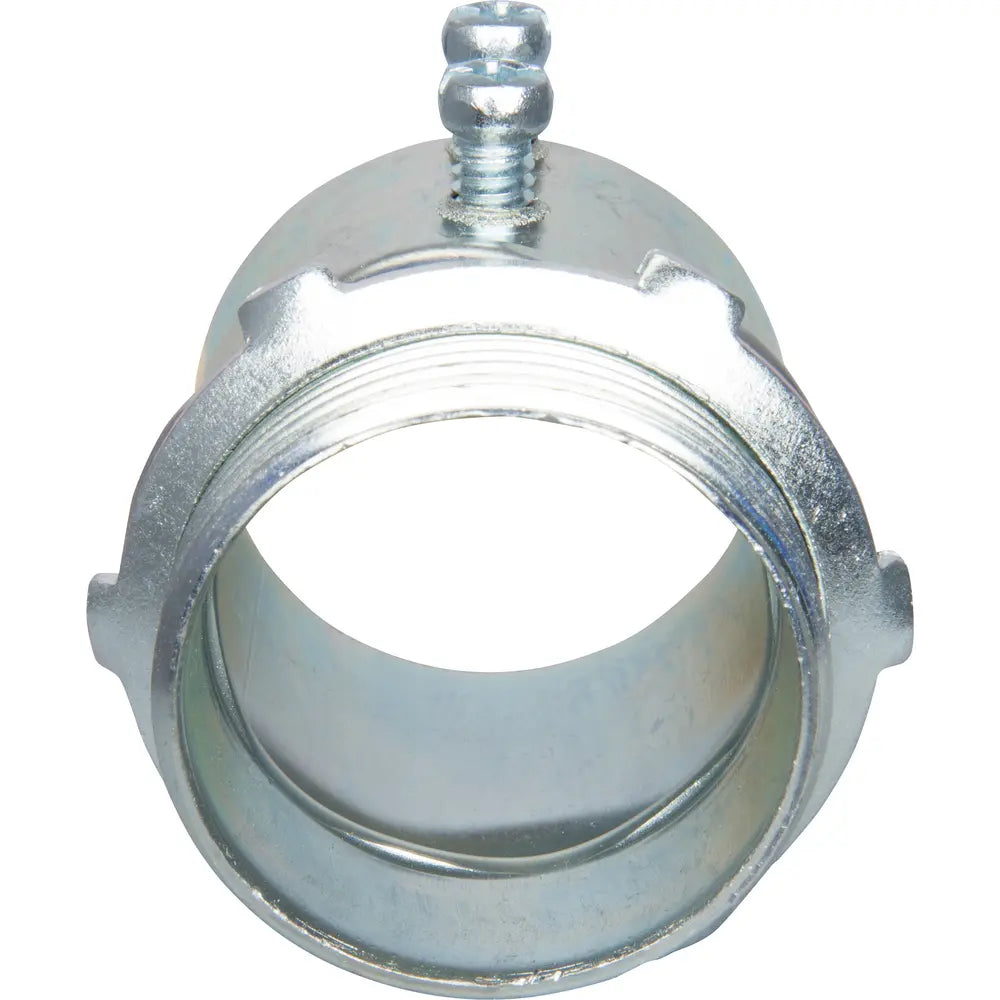

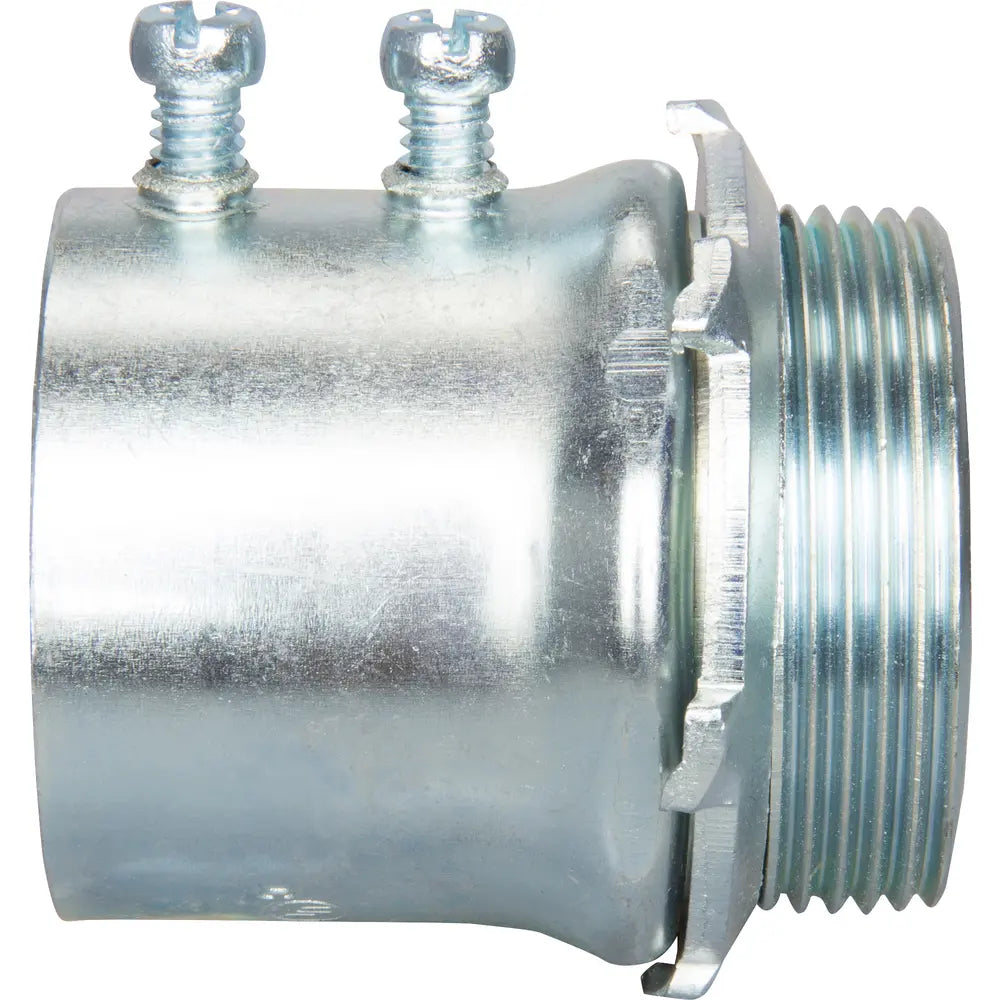

Topaz 634S 1-1/4 inches Steel Set Screw Connector

Product Description

The Topaz 634S 1-1/4" Steel Set Screw Connector joins EMT to a box or enclosure. This set screw type connector is concrete tight when taped and assembled with a steel locknut. It is constructed of steel with a zinc plated finish and is NEMA/ANSI FB-1 compliant.

• Pack of 1 connector
• Assembled with a steel locknut
• Suitable for both EMT and rigid conduit

Product Highlights

This Topaz EMT connector provides secure concrete tight protection when taped and is available in sizes from 1/2" to 4".

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 634S
• Country of Origin: UKN

Technical Specifications

• Type: Set-Screw - EMT Connectors
• Color: Silver
• Finish: Zinc Plated
• Length: 2.50 Inches
• Diameter: 2.25 Inches
• Material: Steel
• Standard: cULus
• Connection: Set Screw
• Insulation: Non-Insulated
• Trade Size: 1-1/4 in.
• For Use With: Join EMT To Box or Enclosure
• Brand Name: Topaz
• Brand Part Number: 634S
• Item UPC: 751338230309
• Manufacturer: Topaz
• Manufacturer Part Number: 634S
