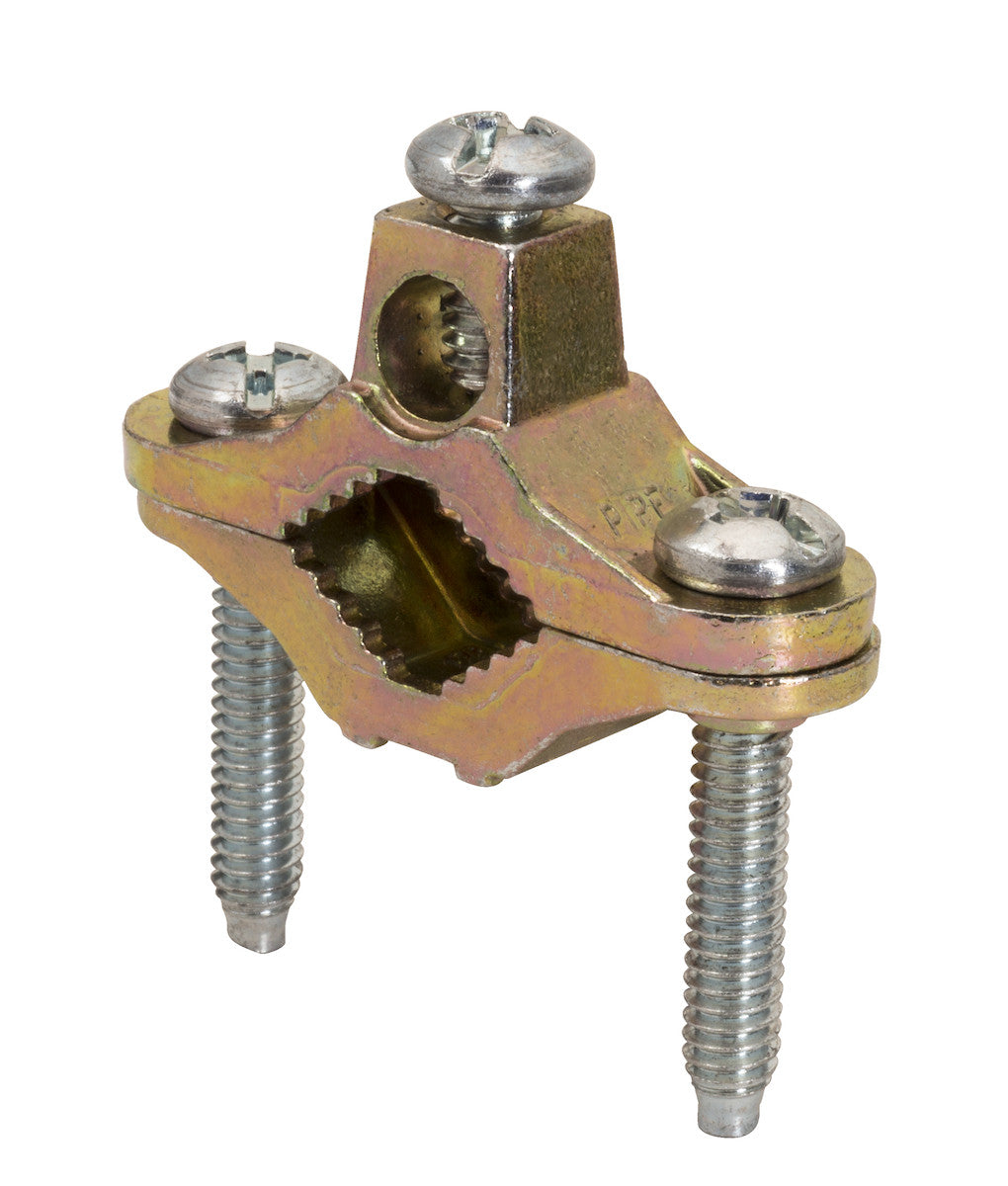

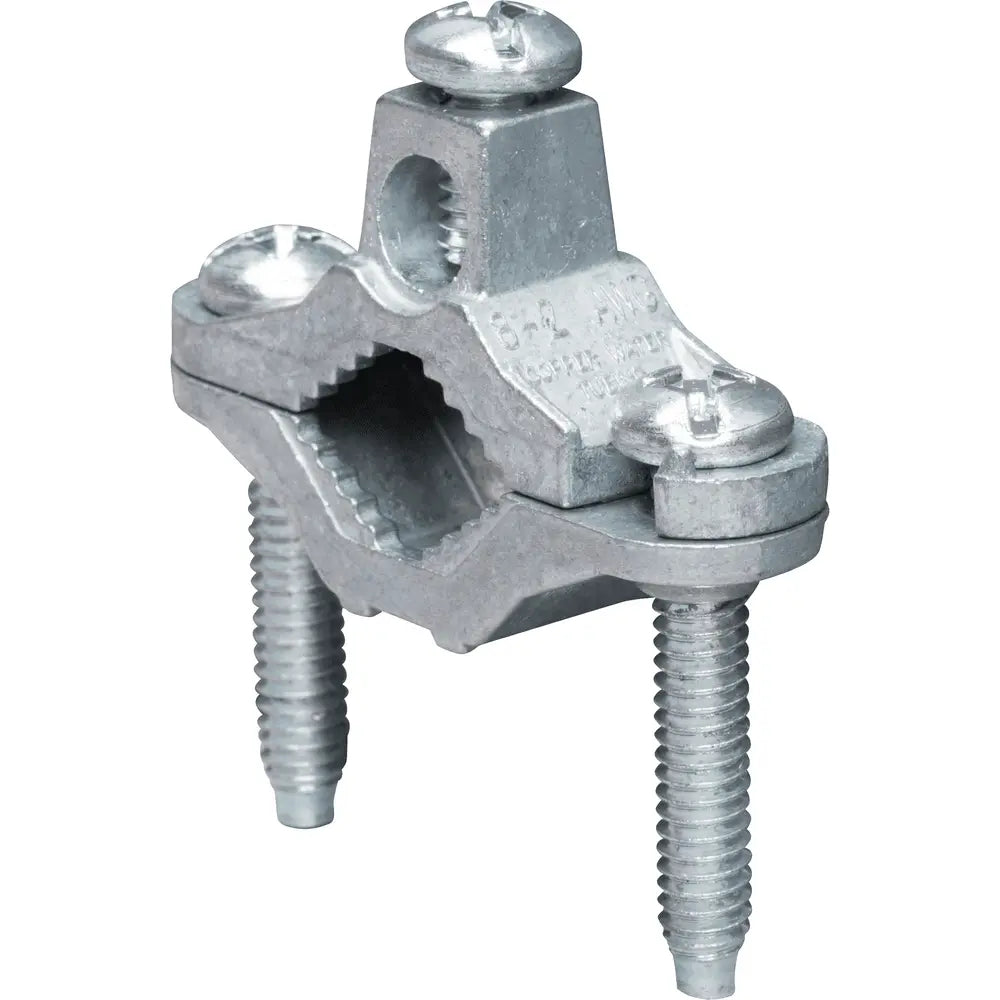

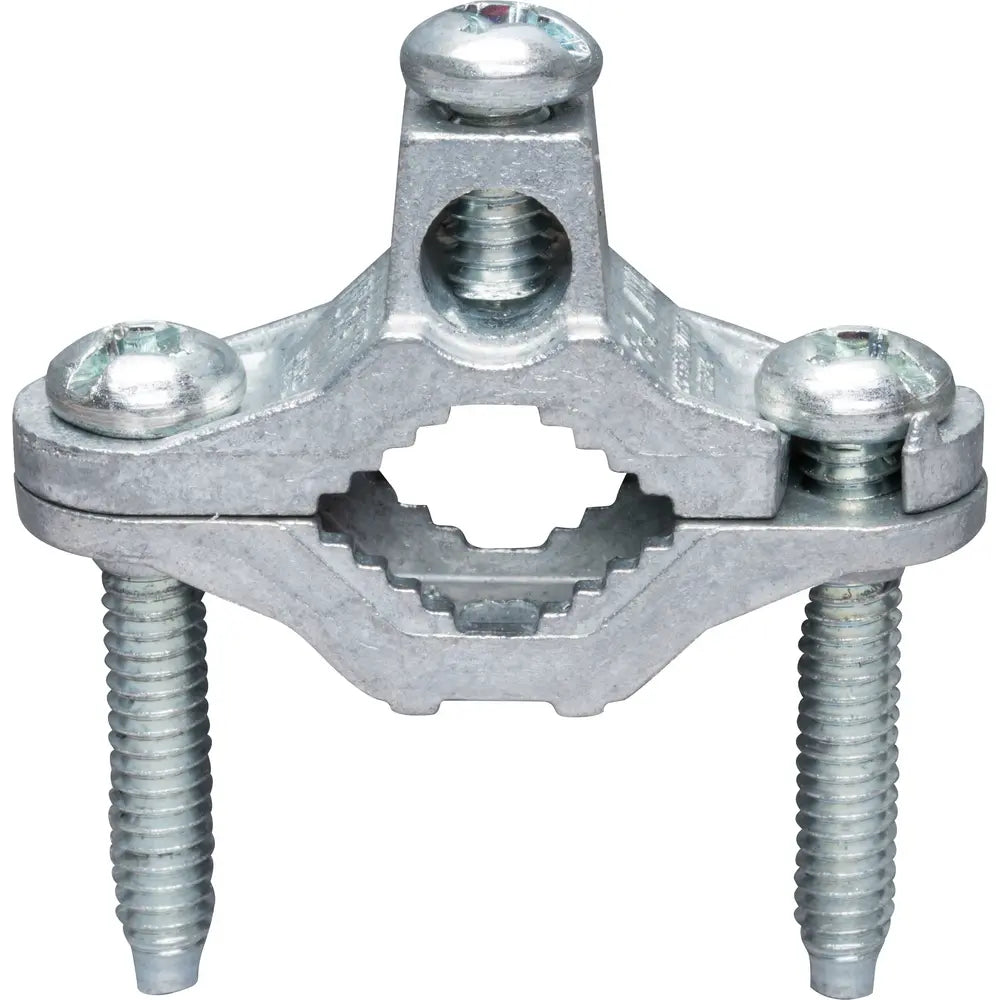

Topaz 620Z Ground Clamp for Bare Wire, Die-Cast Zinc, 1/2 inches - 1 inches

Product Description

The TOPAZ 620Z ground clamp is a zinc ground clamp for bare wire, designed for easy installation and secure grounding of bare wire to water pipes or other structural members. Its zinc construction is suitable for use with both copper and aluminum wire. Pack of 1 unit.

• Zinc construction
• Designed for use with copper and aluminum wire
• Secure grounding of bare wire

Product Highlights

Provides secure grounding for bare wire to water pipes or structural members. Compatible with copper and aluminum wire.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 620Z
• Country of Origin: US

Technical Specifications

• Size: 1/2 Inches to 1 Inches
• Type: Ground Fittings
• Width: 10.62 Inches
• Height: 6.50 Inches
• Length: 2.22 Inches
• Standard: UL 467, UL File Number E14871, US FED SPEC Number A-A-50552, CSA Certified, NEMA/ANSI FB-1, Military Specification Number:W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Connection: Clamp
• Insulation: Non-Insulated
• Conductor Size: 10 to 2 AWG
• Country of Origin: US
• Conductor Material: Aluminum Copper
• MPN: 620Z
• Brand: TOPAZ
• Material: Zinc
