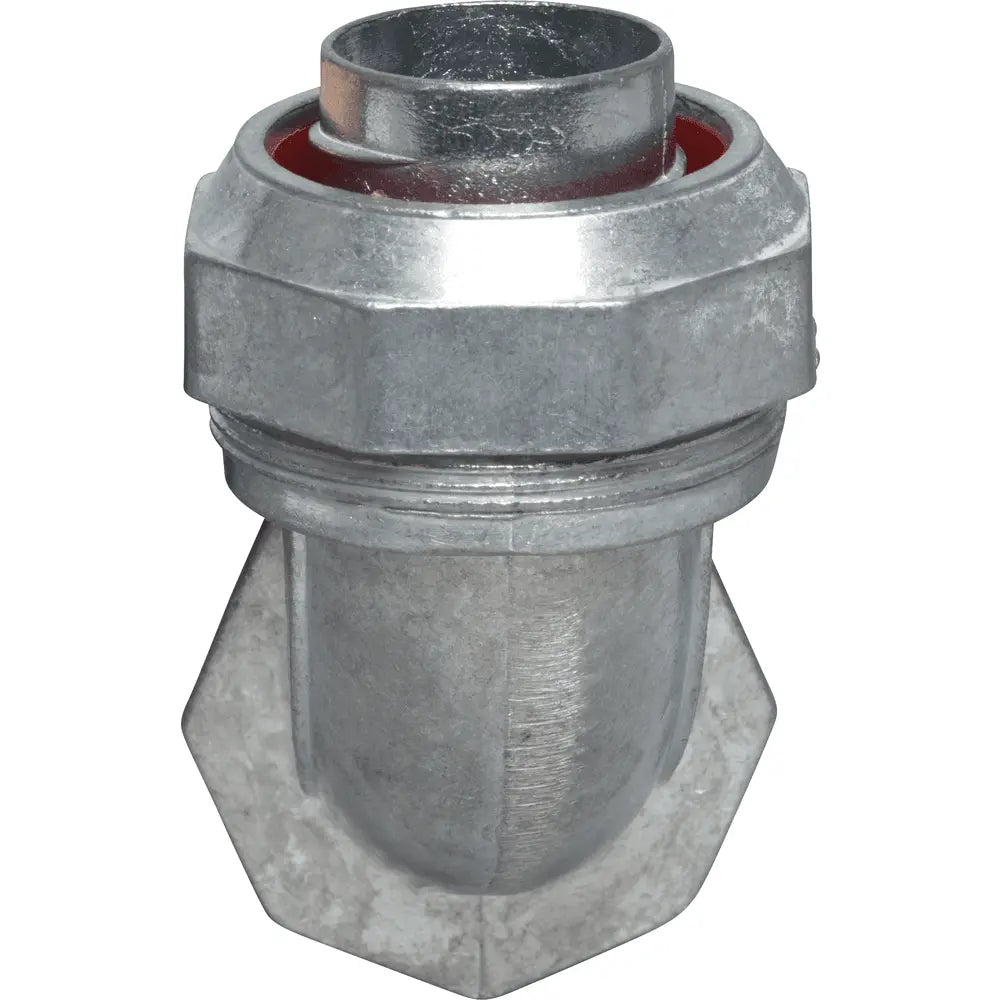

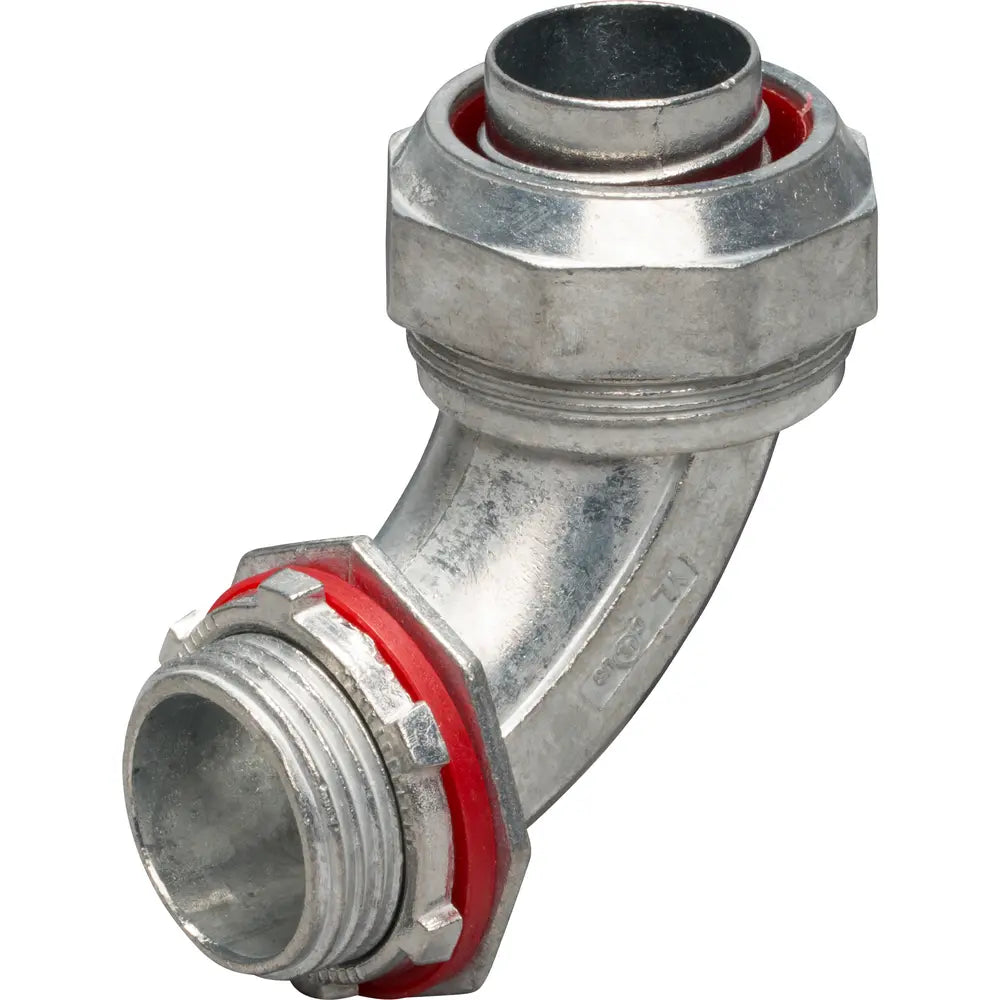

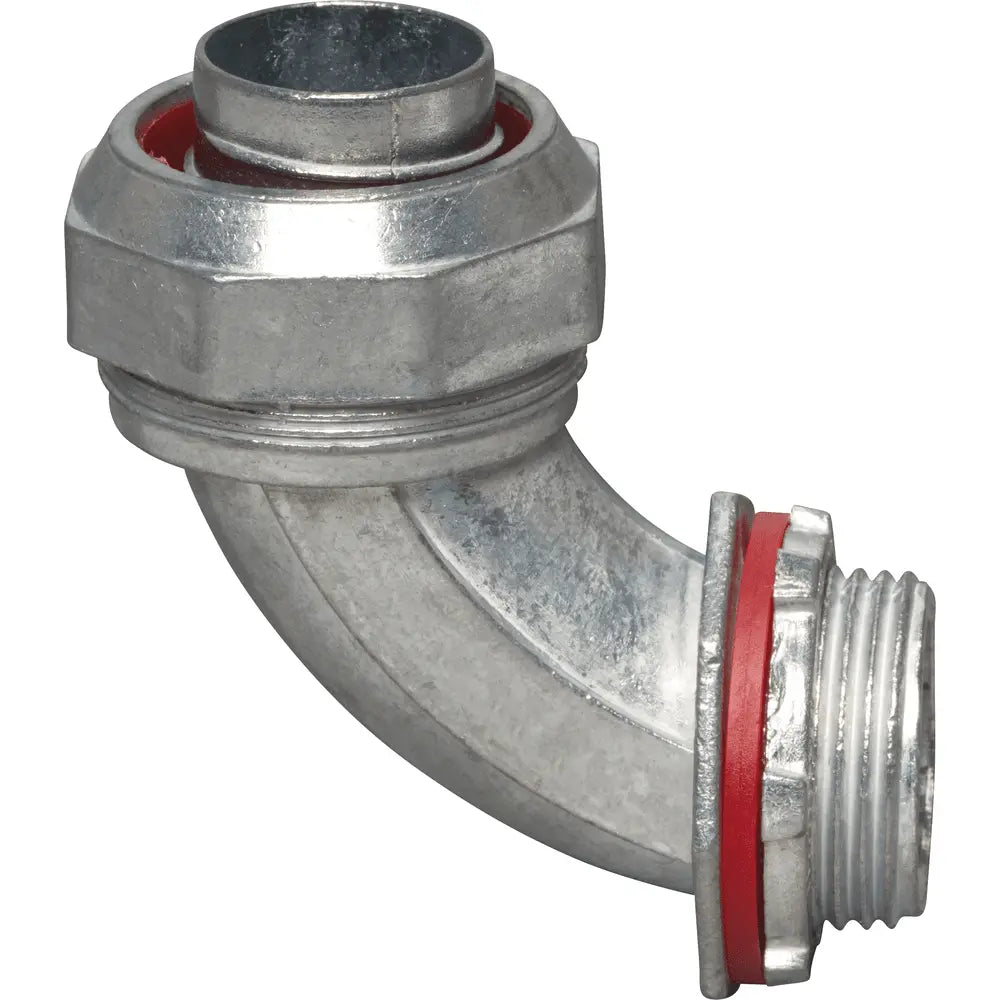

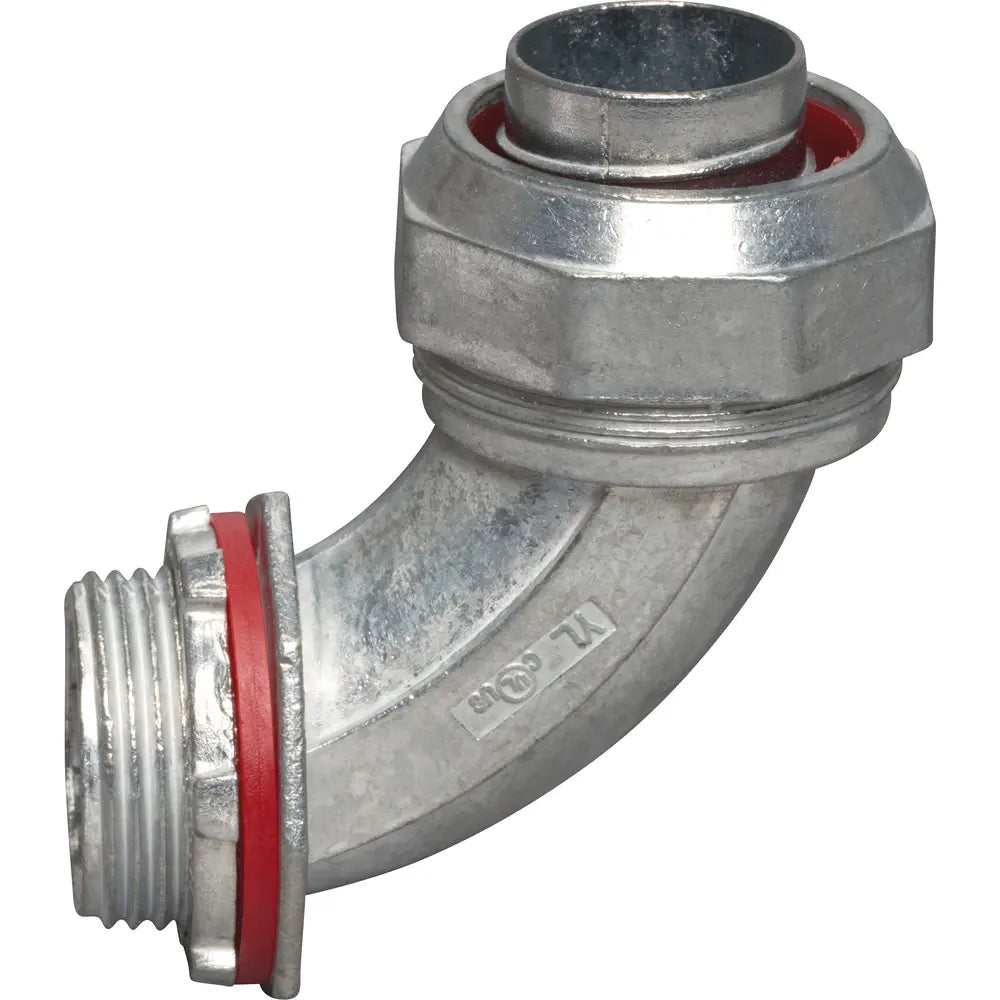

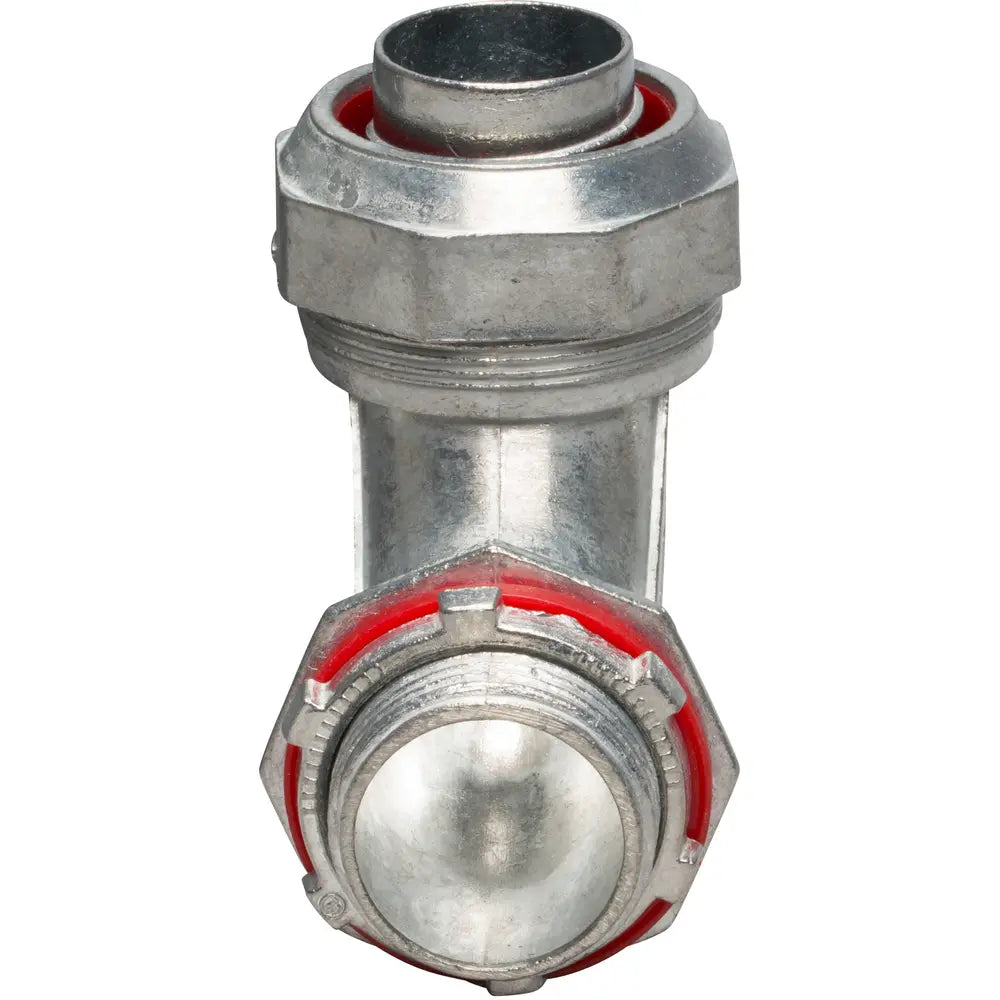

Topaz 496 2 inches 90° Liquidtight Connector

Product Description

The TOPAZ 496 is for use with metallic and non-metallic "Type B" liquidtight conduit. It is liquidtight, raintight, and oiltight. Assembled with a die cast locknut and also available with insulated throat.

• For use with metallic and non-metallic "Type B" liquidtight conduit
• Liquidtight, raintight, oiltight
• Assembled with a die cast locknut

Product Highlights

The TOPAZ 496 is a 2" 90° liquidtight connector for use with metallic and non-metallic conduits.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 496
• Country of Origin: UKN

Technical Specifications

• Type: Metallic Liquid-Tight Angled Connectors
• Color: Silver
• Width: 4.04 Inches
• Degree: 90 °
• Length: 4.70 Inches
• Weight: 0.13 Pounds
• Diameter: 0.57 Inches
• Material: Die-Cast Zinc
• Mounting: Threaded
• Standard: cULus
• Connection: Compression
• Insulation: Non-Insulated
• Stock Code: 0011-0797
• Trade Size: 2 in.
• Product Name: Southwire TOPAZ 2 Inch 90-Degree Liquidtight Connector (496)
• Brand: Southwire
• SKU: SOUTHWIRE-496
• Mfr. Part Number: 496
• UPC Code: #751338146709
