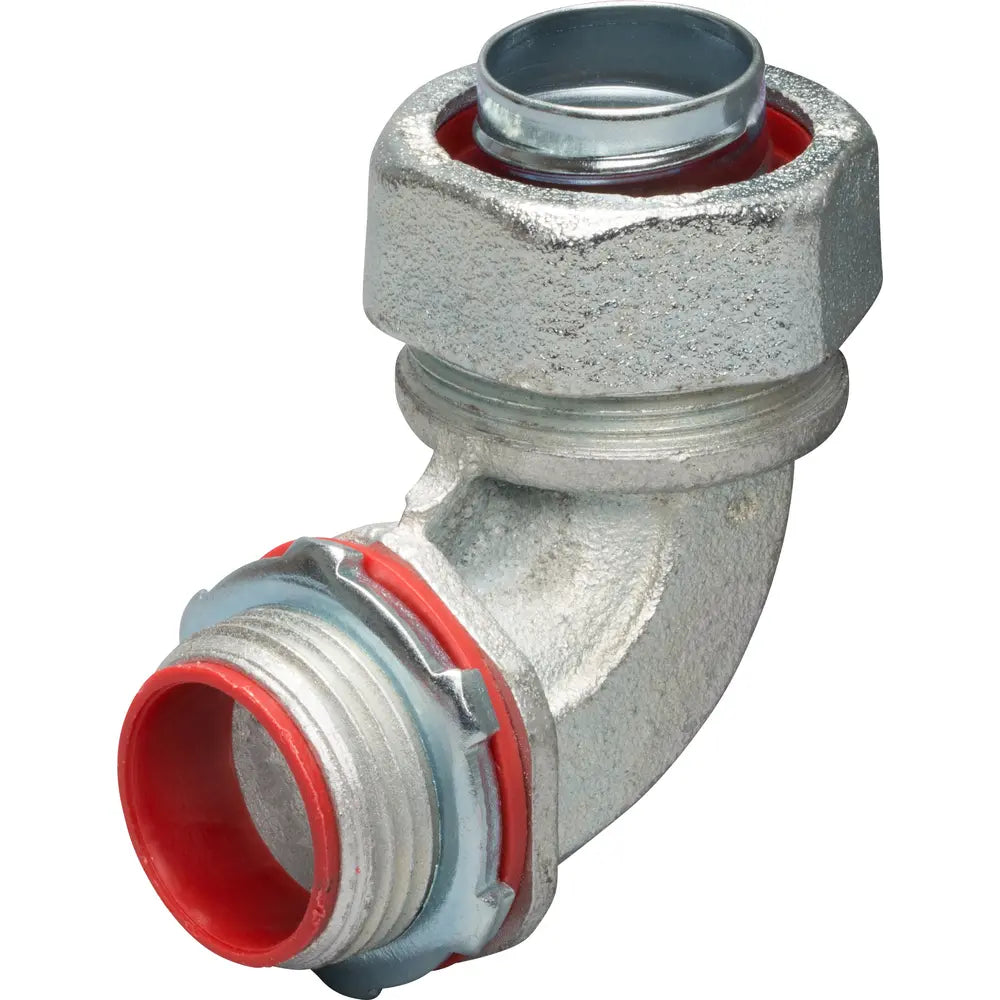

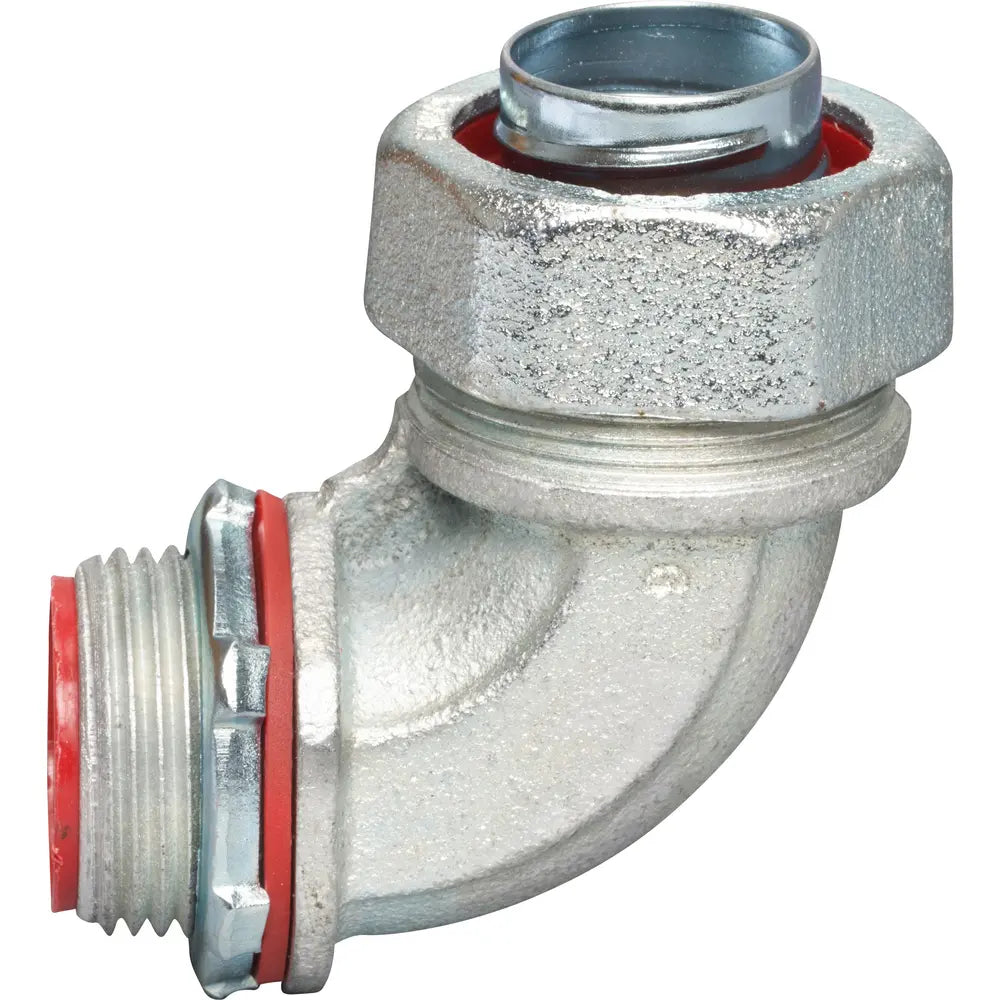

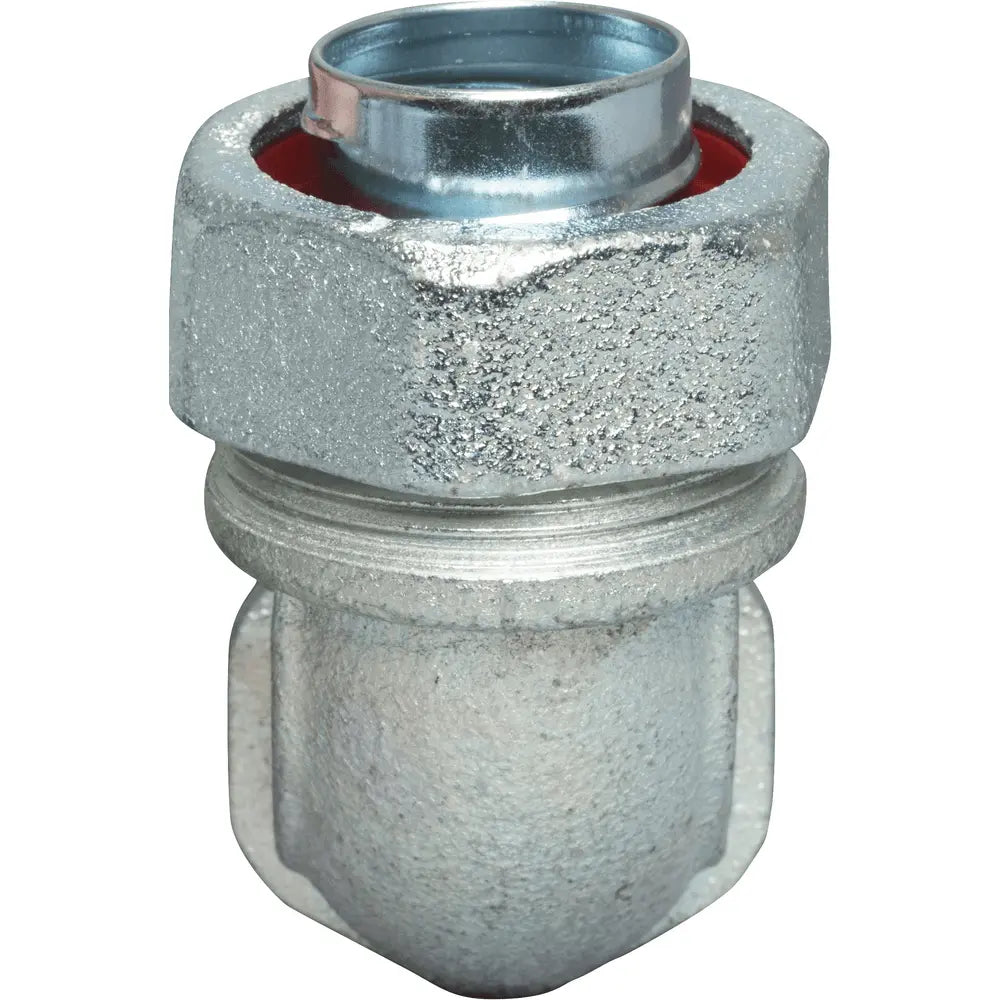

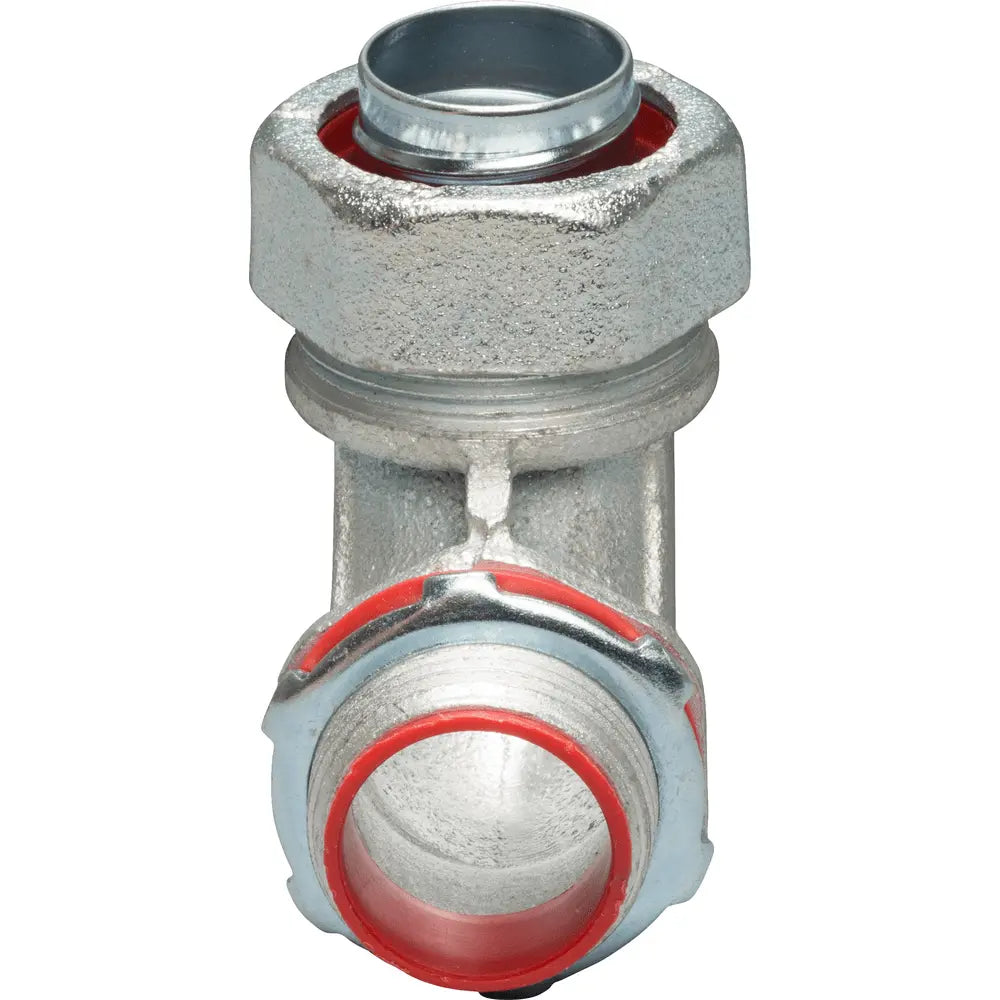

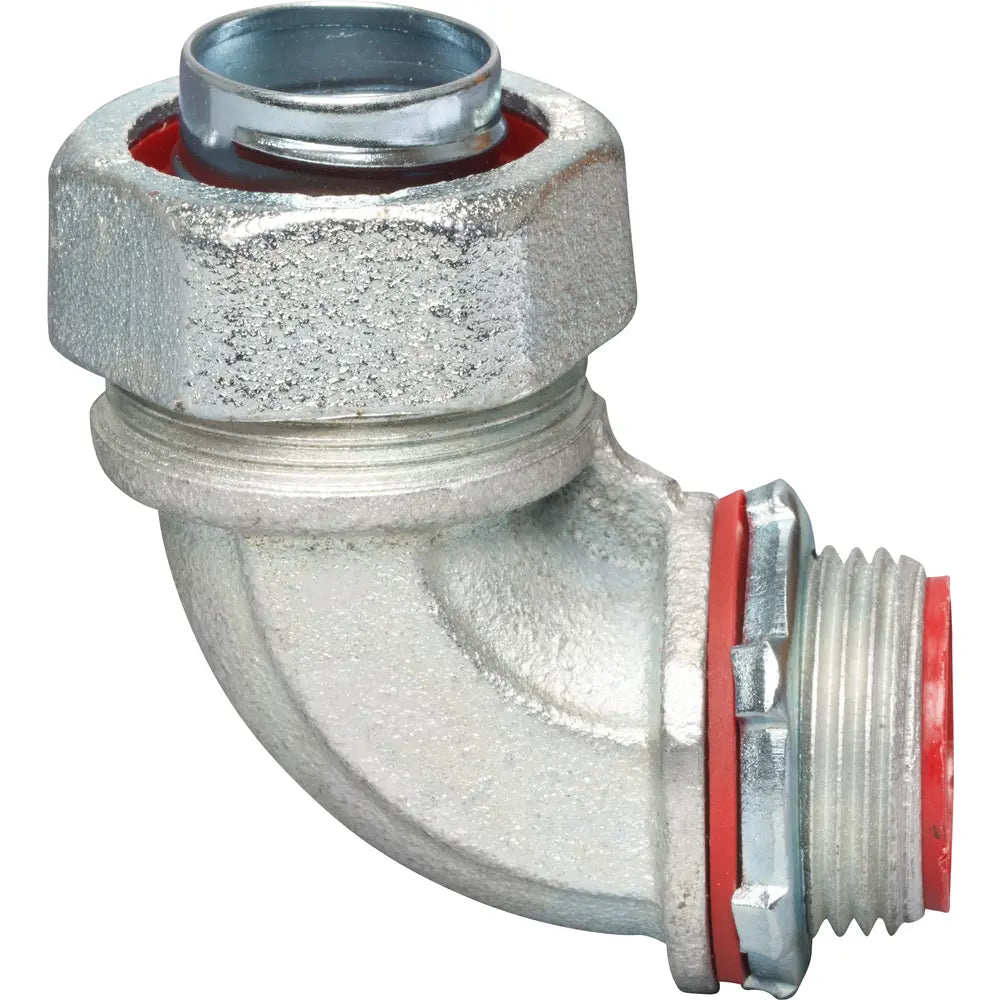

Topaz 495S 1-1/2 90 Degree Liquidtight Connector with Insulated Throat Malleable Iron

Product Description

The Topaz 495S is designed to secure, ground, and seal liquidtight conduit to a box or enclosure. This connector is crafted from durable malleable iron, making it suitable for wet locations. The insulated throat protects conductors from abrasion damage.

• For use with liquidtight conduit
• Features tapered threaded male hub NPT
• Compact design with small turning radius

Product Highlights

This connector is liquidtight, raintight, and oiltight, suitable for various environmental conditions, including hazardous locations.

Product Information

Standard Information

• Brand: Topaz
• Manufacturer: Topaz Electric Corp.

Technical Specifications

• MPN: 495S
• Type: Metallic Liquid-Tight Angled Connector
• Material: Malleable Iron
• Insulation: Insulated Throat
• Size: 1-1/2 inches
• Weight: 1.15 pounds
• Length: 4.17 inches
• Width: 2.62 inches
• Height: 3.13 inches
• Connection Type: NPT Male Threaded
• Standards: cULus
• Degree: 90 degrees
