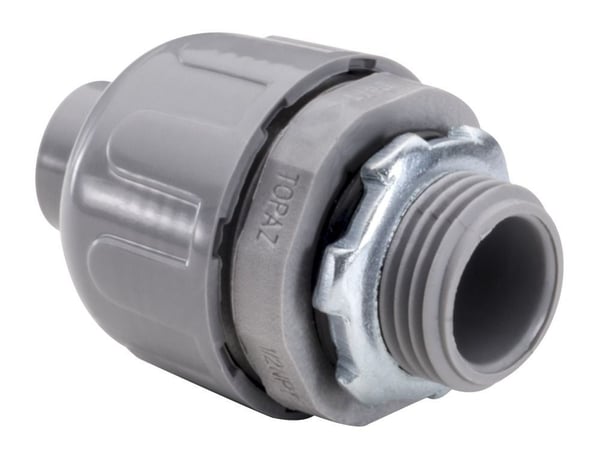

Topaz 476 2 inches Straight Component Liquidtight Connector

Product Description

The TOPAZ 476 is a 2" straight component liquidtight connector. These liquidtight connectors seal out water, oil, dust, and other damaging particles. Suitable for both wet and dry conditions. It is fabricated from rugged, corrosion proof 6/6 nylon and are built to withstand extreme temperature fluctuations and other harsh weather conditions.

• Assembled with Zinc Die Cast Locknut
• Easy assembly without having to remove the compression nut
• Suitable for both wet and dry conditions

Product Highlights

The TOPAZ 476 ensures a secure connection in diverse environments. Its nylon construction provides flexibility and resistance to corrosion and extreme temperatures.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 476
• Country of Origin: United States

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: 476
• Trade Size: 2 in
• Type: Straight
• Application: Wet and Dry Location Applications
• Standard & Approvals: UL 514B, UL File No. E148716, cULus File No. E148716, CSA Certified, Federal Specification No. A-A-50552, NEMA/ANSI FB-1, Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Material: Nylon 6/6
• Suitable For Use With: Flexible Non-metallic Liquid Tight Tubing
• Conduit Type: Liquid-Tight
• Accessory Type: Conduit Connectors
• Country of Origin: United States
• Product Name: Southwire TOPAZ 2 Inch Straight Liquidtight Connector (476)
