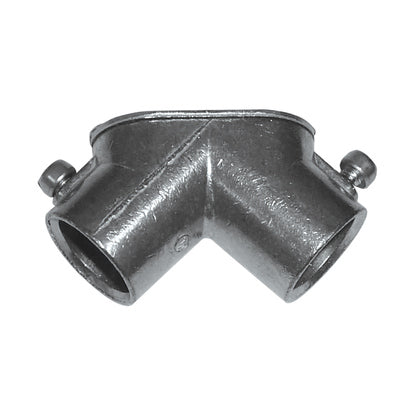

Topaz 383 1 inches EMT Pull Elbow 25-PK

Product Description

The Topaz 383 1" EMT Pull Elbow 25-PK is designed to securely connect EMT conduit together when specifications dictate a 90° bend. These set screw type 90° pull elbows offer easy installation and removable covers to facilitate easy wire pulling. Constructed of naturally corrosion resistant zinc die cast for use in dry locations.

• 90 DEG EMT Pull Elbow, Die Cast Zinc, 1"
• For Use With-EMT Conduit
• Applications-Dry Locations

Product Highlights

Facilitates easy wire pulling with a removable cover. Constructed from corrosion resistant die cast zinc.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 383
• Country of Origin: Switzerland

Technical Specifications

• Manufacturer: Buffalo Electric Supply
• Model / MPN: 383
• Number of Items: 1.0
• Brand Name: Topaz
• Brand Part Number: 383
• Item UPC: 751338136502
• Our Part#: 383-TZ
• Standards: California Proposition 65
• Product Code: 383
• Trade Size: 1 inch
• Outside Diameter: 1.61 IN
• Connection Type: Set Screw Female x Female
• Bend Angle: 90 DEG
• For Use With: EMT Conduit
• Commodity Code: Emt To Emt Pulling Elbows
• Size: 1
• RoHS Indicator: N
• Application: Dry Locations
• Type: 90 DEG EMT Pull Elbow
• UNSPSC: 39121464
• Sub Brand: Topaz
• Standard: UL 514B, UL File Number E148720, US Federal Specification Number A-A-50553, CSA Certified, NEMA/ANSI FB-1, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Material: Die Cast Zinc
