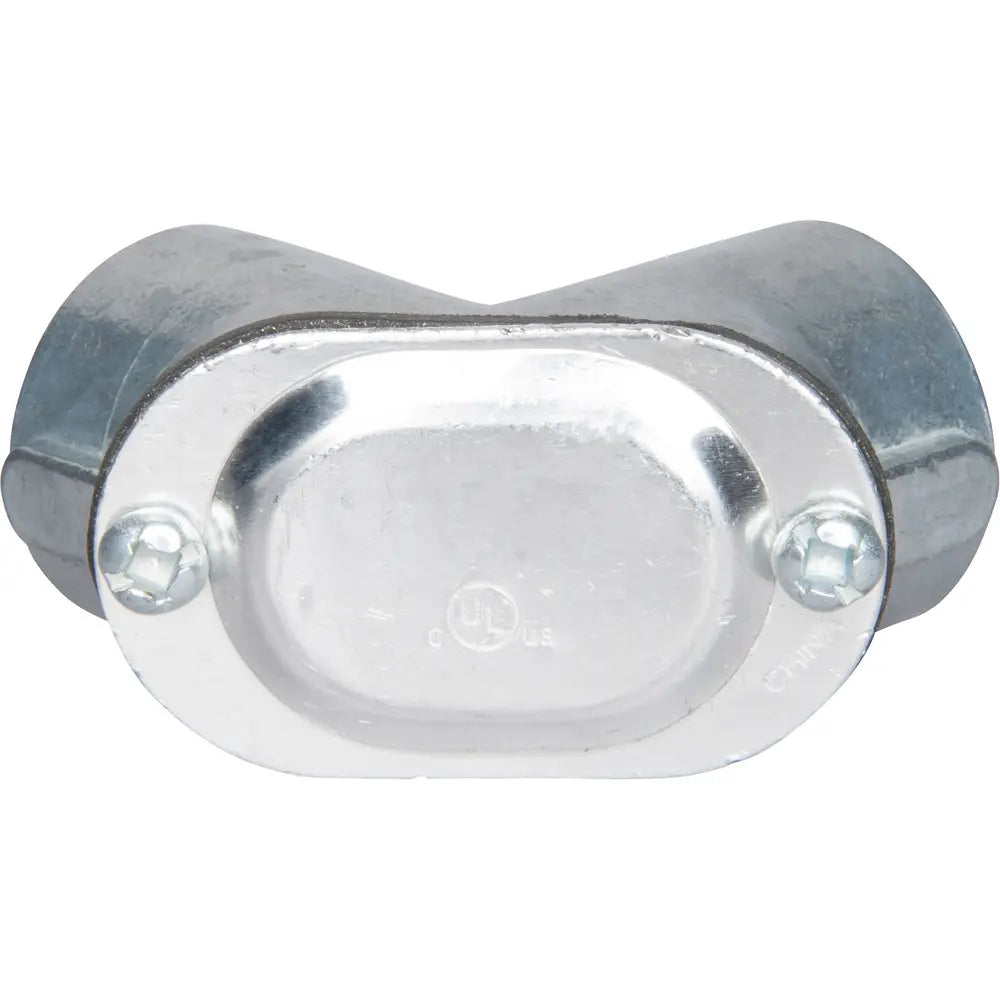

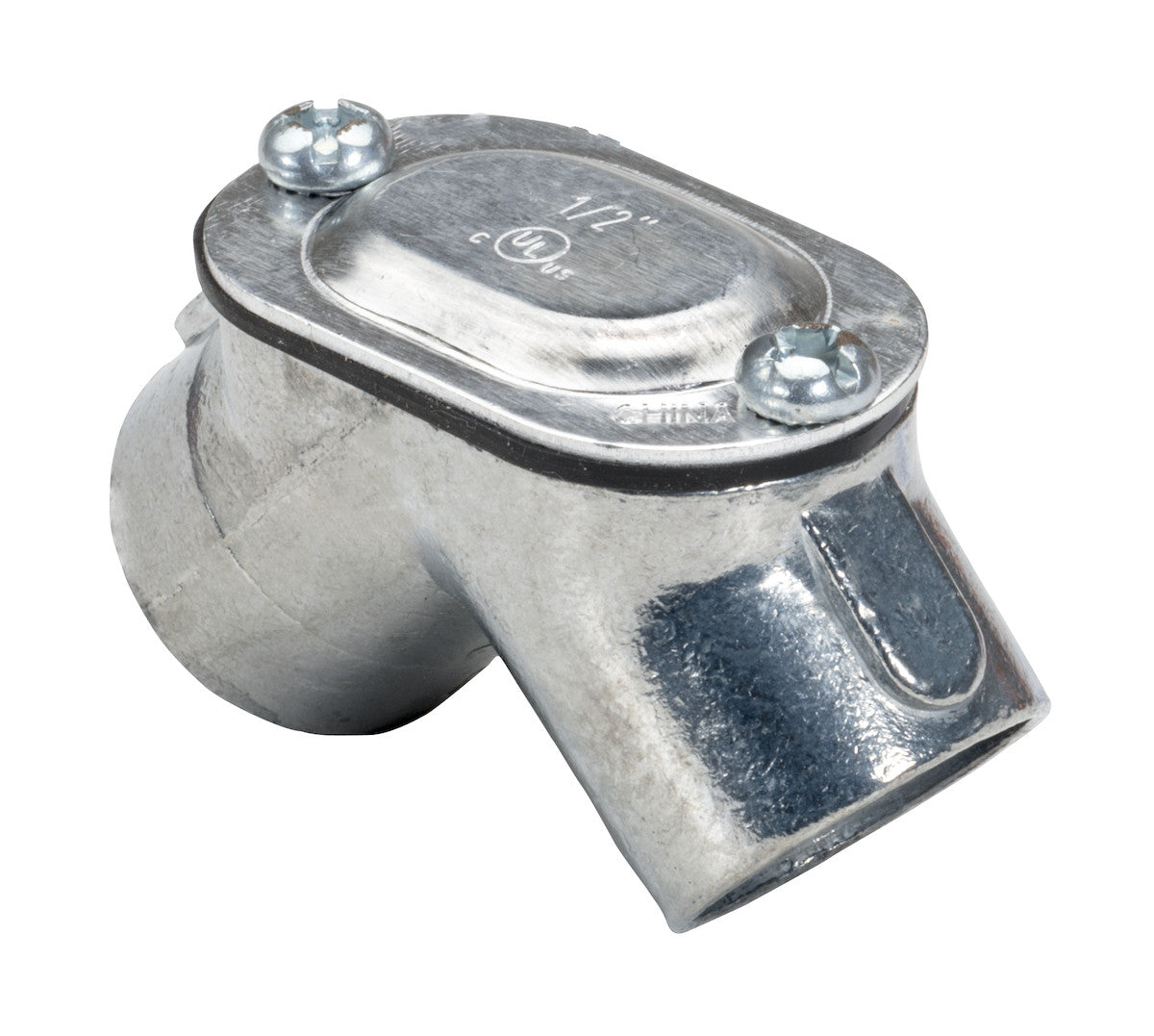

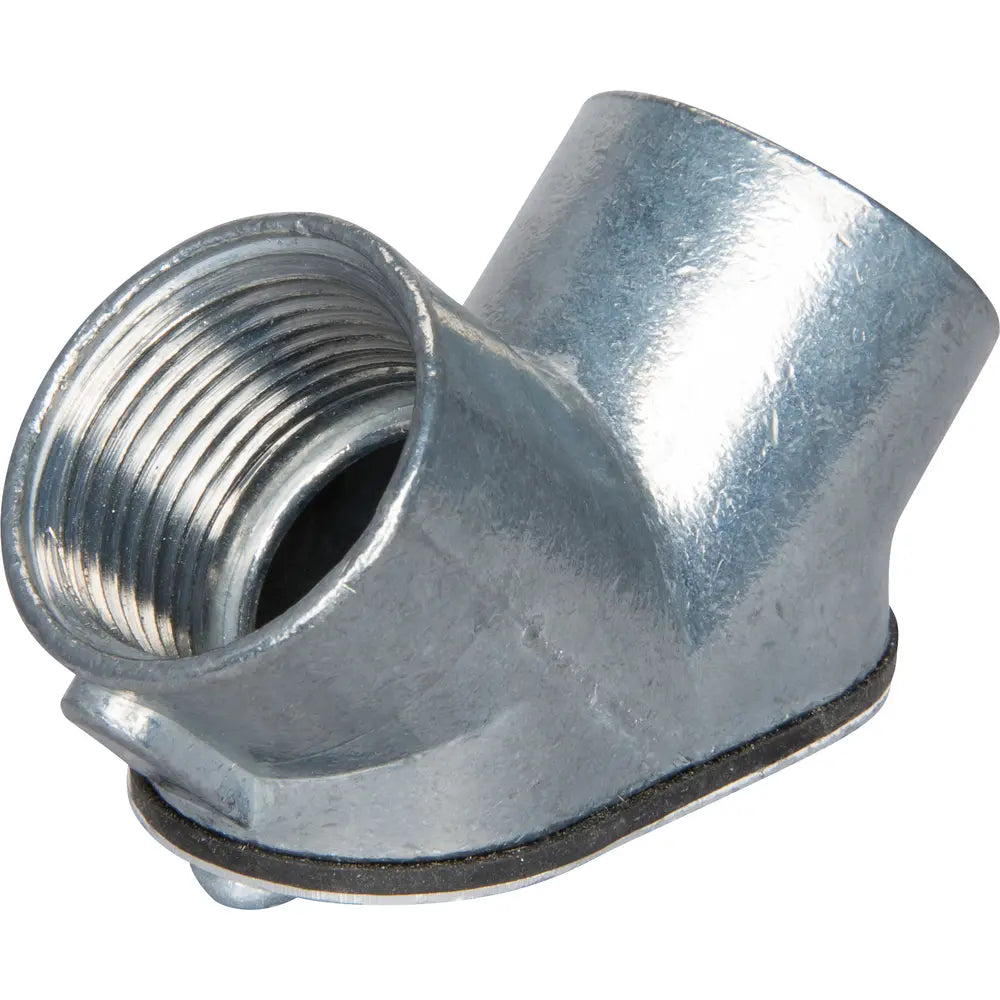

Topaz 352 3/4 inches Rigid to Rigid Pull Elbow, 90°

Product Description

The TOPAZ 352 3/4" Rigid to Rigid Pull Elbow facilitates wire pulling through sharp bends in threaded Rigid or IMC conduit and can be used with EMT indoors. It features a removable cover for easy wire pulling and a neoprene gasket. Suitable for indoor or outdoor use (Rigid only).

• Removable cover facilitates wire pulling
• Neoprene gasket
• For Rigid or IMC conduit

Product Highlights

Facilitates wire pulling through bends with a removable cover and neoprene gasket.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 352
• Country of Origin: Unknown

Technical Specifications

• Bend: 90 °
• Type: Rigid Pulling Elbows
• Color: Gray
• Degree: 90 °
• Finish: Die-Cast
• Length: 2.76 Inches
• Material: Die-Cast Zinc
• Mounting: Threaded
• Standard: cULus
• Connection: Threaded
• Insulation: Non-Insulated
• Trade Size: 3/4 in.
• Listing: UL/cULus listed and CSA certified
• MPN: 352
• Brand: TOPAZ
• Reference ID: TOPAZ352
• Diameter: 1.29 Inch
• Constructional Feature: Corrosion Resistant
