Topaz 338M 3 inches Malleable Insulated Grounding Rigid Bushing

Product Description

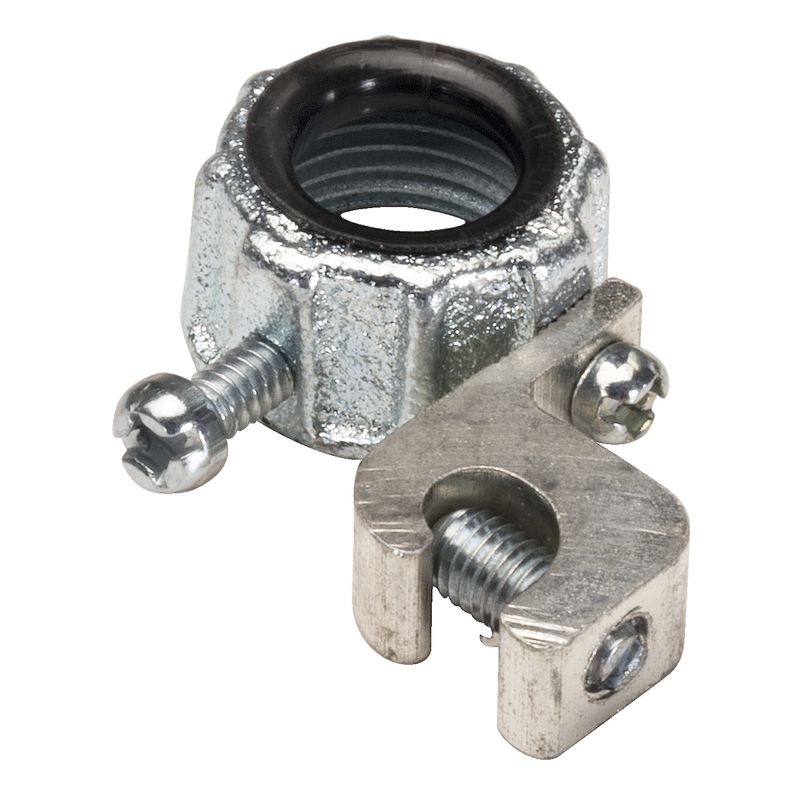

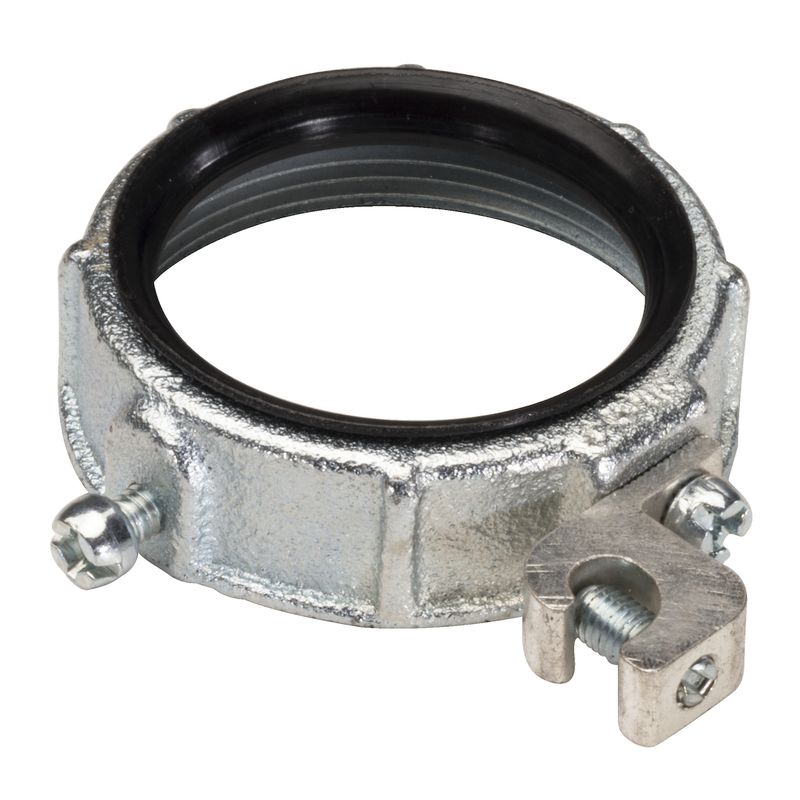

The Topaz 338M is a 3" Malleable Iron Metallic Grounding Bushing with female threading. These insulated metallic grounding bushings are for terminating conduit service with an accompanying aluminum lay-in grounding lug. The thermoplastic throat liners are rated to 105° C to help prevent wire insulation damage.

• Metallic Grounding Bushing, Malleable Iron, 3", Female Threaded
• Features: Insulated, Thermoplastic Liners, Aluminum Lay-In Lug
• Recommended for applications with copper or aluminum bare ground connectors

Product Highlights

The Topaz 338M grounding bushings are built with high-grade malleable iron construction. All models are UL listed.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 338M
• Country of Origin: Switzerland

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: 338M
• Trade Size: 3 inch
• Conductor Range: 14-1/0 AWG
• Outside Diameter: 4.16 inch
• Maximum Operating Temperature: 105C
• For Use With: Rigid/IMC Conduit
• Manufacturer Part Number: 338M
• Size: 3
• Temperature Rating: 105 DEG C
• RoHS Indicator: N
• Connection: Female Threaded
• Type: Metallic Grounding Bushing
• UNSPSC: 39121312
• Sub Brand: Topaz
• Standard: UL E170258, CSA Certified, UL 514B, US Federal Specification A-A-50552, NEMA/ANSI FB-1, Military Specification W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Material: Malleable Iron
• Height: 1.03 inch
• Width: 1.03 inch
• Length: 4.16 inch
