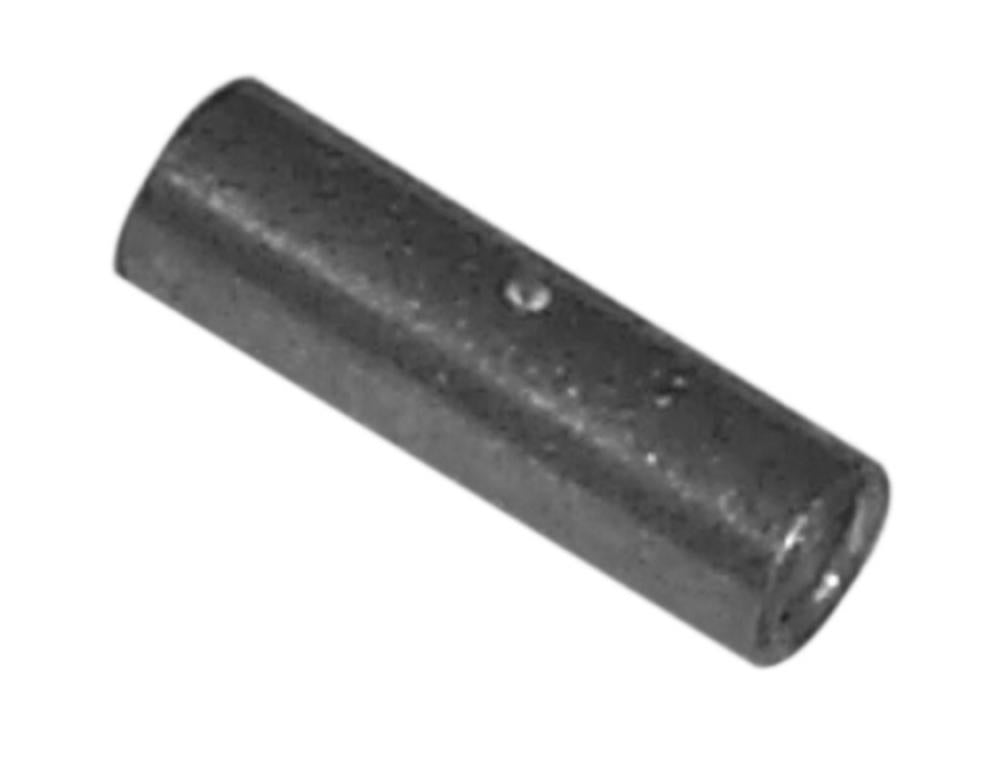

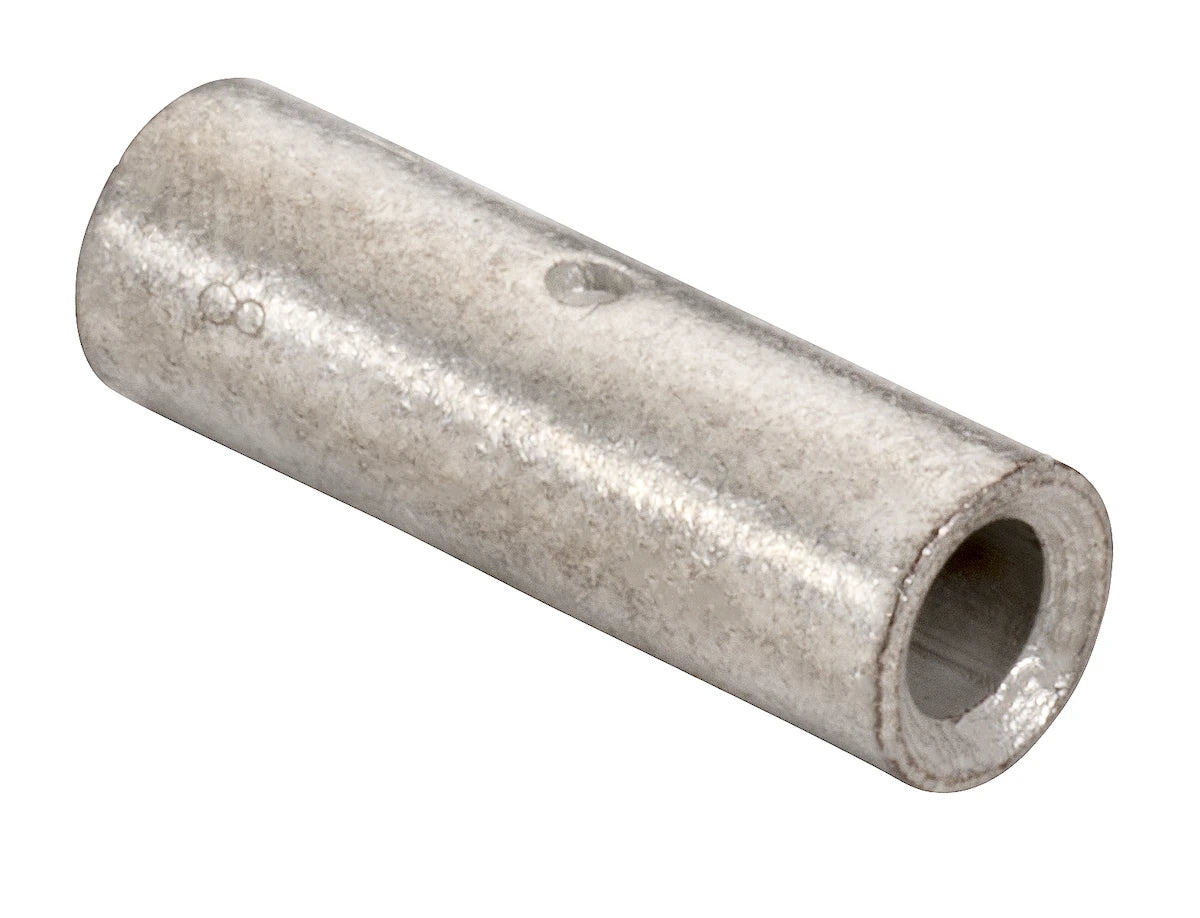

Topaz 3309 Short Barrel Compression Splice 486AMP 35KV

Product Description

The Topaz 3309 Short Barrel Compression Splice is fabricated from high conductivity copper tubing and can withstand use in heavy-duty applications. It is tin plated for optimal corrosion resistance and color-coded for easy identification. This splice is UL listed and suitable for wire sizes from 8 to 750 MCM.

• Fabricated from seamless, high conductivity copper tubing
• Tin plated for optimal corrosion resistance
• Color coded for easy identification

Product Highlights

The Topaz 3309 is a short barrel compression splice made from copper, designed for heavy-duty applications with optimal corrosion resistance.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 3309
• Country of Origin: USA

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: 3309
• Manufacturer: Topaz
• Manufacturer Part Number: 3309
• Product Code: 3309
• Barrel Size: 0.59 in
• Barrel Type: Short
• Conductor Size: 4/0 AWG
• Conductor Type: Copper
• Material: Copper
• Overall Length: 2 in
• Specifications: 486 A
• Voltage Rating: 35 kV
