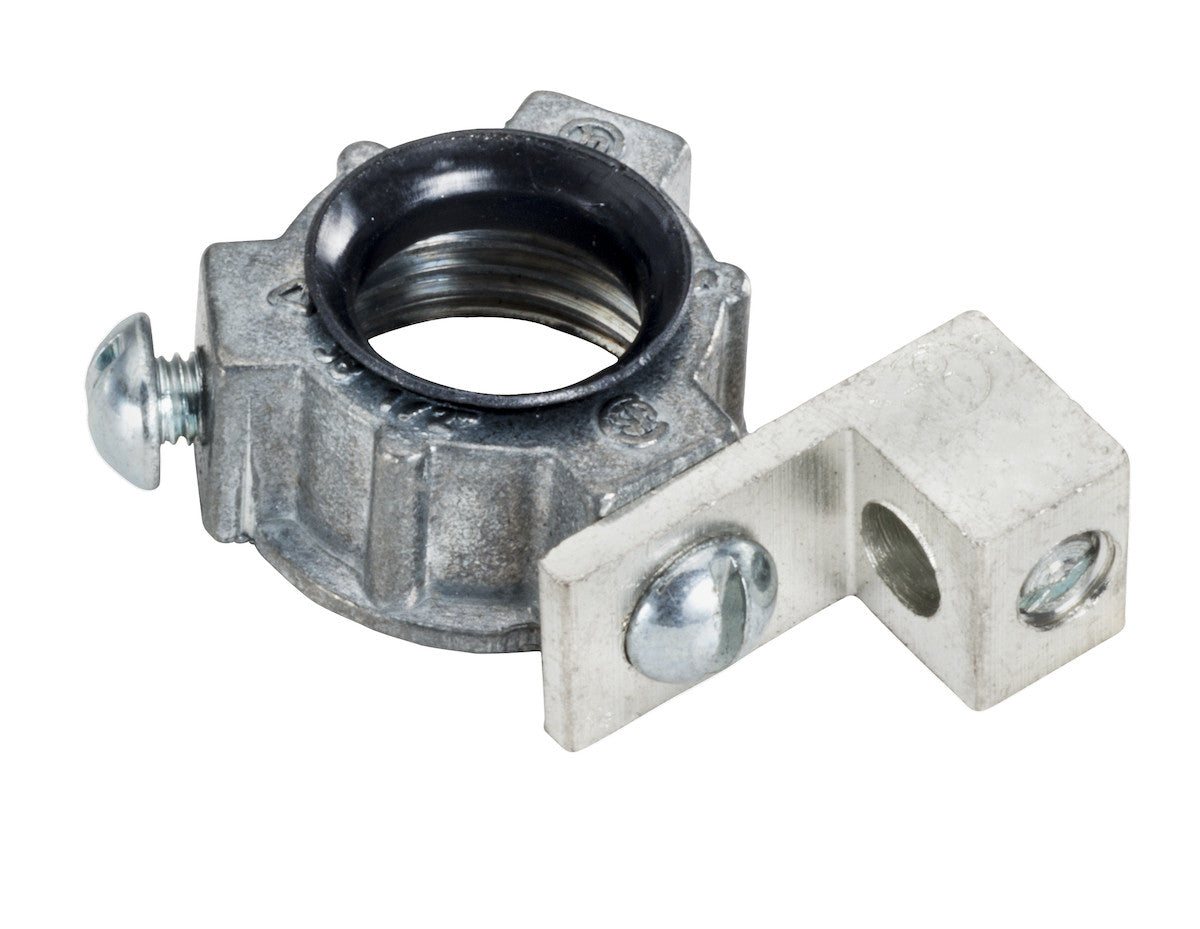

Topaz 328TZ Metallic Grounding Bushing, Die Cast Zinc, 3 inches, Female Threaded

Product Description

The Topaz 328TZ metallic grounding bushing is constructed from die cast zinc with a 3" female threaded connection. These insulated metallic grounding bushings are for use with an accompanying aluminum lug to terminate conduit service. Recommended for applications with copper or aluminum bare ground connectors.

• Protective thermoplastic throat liners are rated to 105° C and help prevent wire insulation damage.
• Built to last corrosion resistant zinc die cast construction
• For use with accompanying aluminum lug to terminate conduit service

Product Highlights

The Topaz metallic grounding bushings are UL listed. They are suitable for terminating conduit service with copper or aluminum bare ground connectors.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 328TZ
• Country of Origin: China

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: 328TZ
• Product Code: 328TZ
• Manufacturer Part Number: 328TZ
• Item UPC: 751338130005
• Manufacturer: Topaz
• Our Part#: 328TZ-TZ
• Product Name: Southwire TOPAZ 3 Inch Insulated grounding Bushing Aluminum Lug (328TZ)
• Brand: Southwire
• SKU: SOUTHWIRE-328TZ
• Mfr. Part Number: 328TZ
• UPC Code: #751338130005
• Conductor Size: 14-1/0 AWG
• Material: Zinc Die Cast
• Size: 3 in
• TC Connection: Female Threaded
• Temperature Rating: 105 C
• Type: Metallic Grounding Bushing
• Wire Size: 14-0 AWG
• 12-Digit UPC: 751338130005
• GTiN: 00751338130005
• Product UPC: 75133813000
• Used With: Copper/Aluminum Bare Ground Connector, Rigid & IMC Conduit
• Diameter: 4.18 Inch
• Height: 0.93 Inch
• Electrical Category: Electrical Boxes And Enclosures
• Electrical Subcategory: Fittings and Bushings
• Connection: Female Threaded
• Country Of Origin: USA
• RoHS Compliance: No
• Standard: UL E148716, CSA Certified, UL 514B, US Federal Specification A-A-50552, NEMA/ANSI FB-1, Military Specification W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Stock Type: Shelf Stock
• UNSPSC: 39121312
