Topaz 3206 Compression Long Barrel Lug, Copper, 1/0, 486AMP, 35KV

Product Description

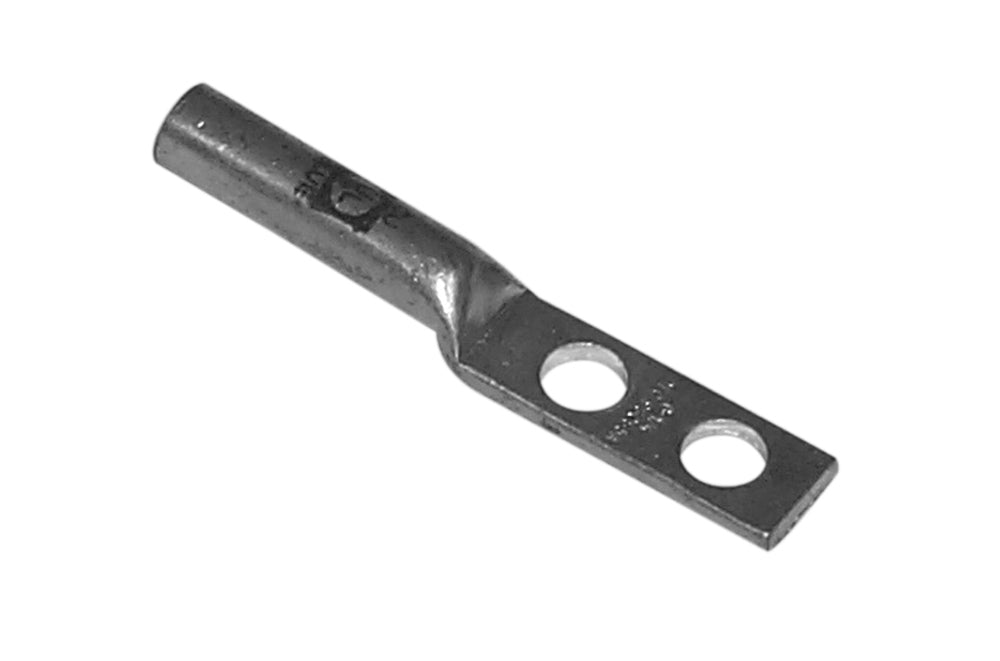

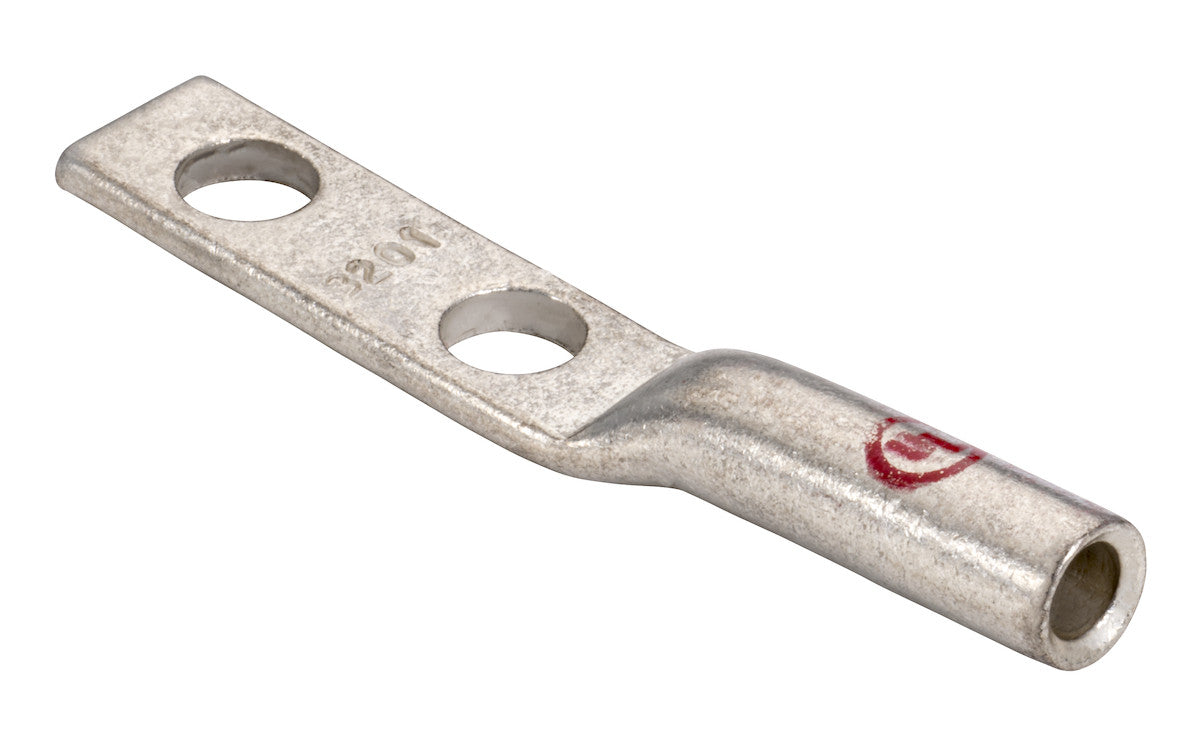

The Topaz 3206 is a compression long barrel lug made from high conductivity copper tubing and tin plated for optimal corrosion resistance. This terminal lug withstands high mechanical stress, making it ideal for direct burial and grounding applications. It is color coded for easy identification and UL listed.

• Fabricated from high conductivity copper tubing
• Tin-plated to provide corrosion resistance
• Color coded for easy identification

Product Highlights

The Topaz compression lug is suitable for heavy-duty applications and is ideal for electrical wiring and cable solutions.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 3206
• Country of Origin: China

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: 3206
• Item UPC: 751338816381
• Manufacturer: Topaz
• Manufacturer Part Number: 3206
• Our Part#: 3206-TZ
• MFR #: 3206
• Conductor: Copper
• Conductor Size: 1/0 AWG
• Stud Size: 1/2 in
• Number of Holes: 2
• Amperage Rating: 486 A
• Cable Range: 1/0
• Cable Size: 1/0 AWG
• Cable Type: 1/0 AWG
• Color: Pink
• Hole Spacing: 0.875 IN
• Label Description: COMPRESSION LUGS
• Material: Copper
• Standard: UL 467, UL File Number E155861, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Type: Compression Long Barrel Lug
• Voltage Rating: 35,000 V
• Product Code: 3206
