Topaz 3202tz Two Hole - Long Barrel Compression Lug, 6, 1/4 inches Bolt Size

Product Description

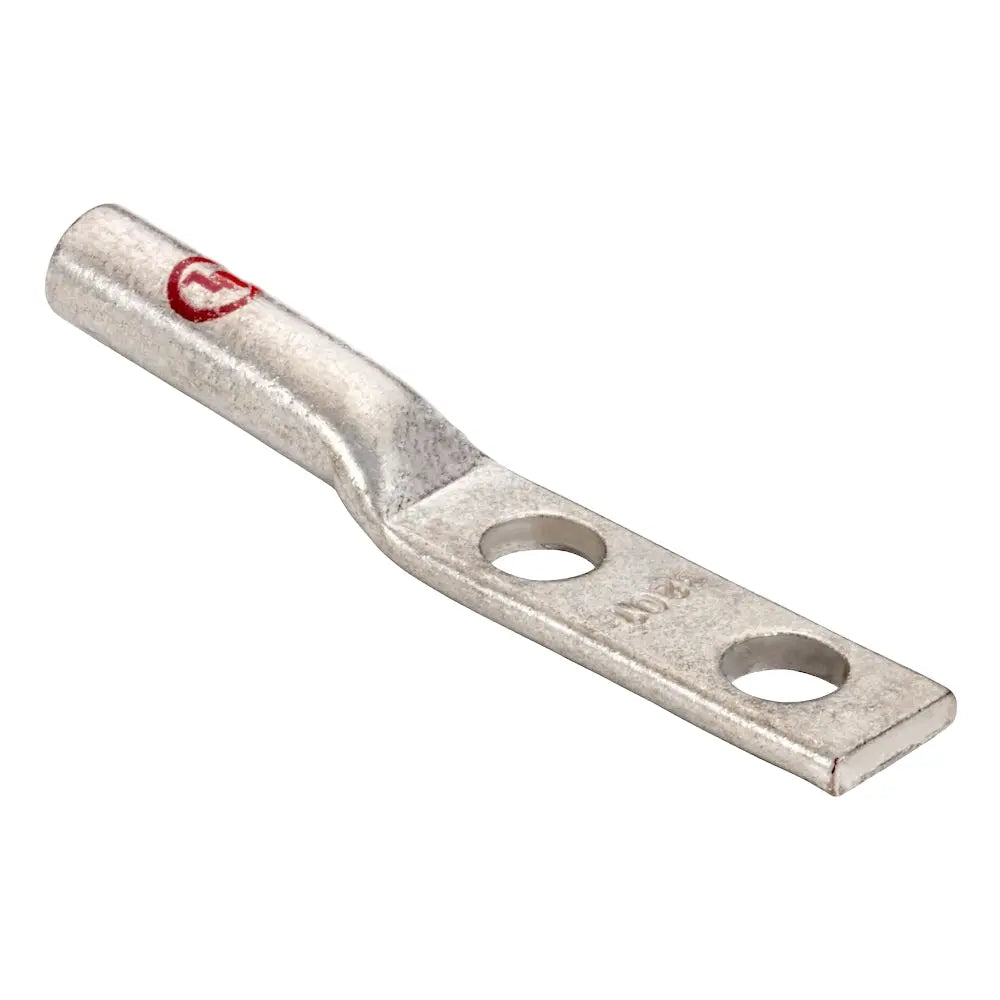

The TOPAZ 3202TZ two-hole, long barrel compression lug is made from high conductivity copper tubing and tin plated for corrosion resistance. This terminal lug withstands high mechanical stress, making it ideal for direct burial and grounding applications. It is available for wire size 6 AWG and is UL listed. Pack of 1 Unit.

• Fabricated from high conductivity copper tubing
• Tin plated for optimal corrosion resistance
• Color coded for easy identification

Product Highlights

The TOPAZ Two Hole Compression Lug is ideal for direct burial and grounding applications.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 3202TZ
• Country of Origin: IN

Technical Specifications

• UPC: 751338816336
• Type: Compression Lugs
• Width: 0.42 Inches
• Length: 2.24 Inches
• Material: Copper
• Standard: UL 467, UL File Number E155861, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Insulated: No
• Cable Size: 6 AWG
• Color Code: Blue
• Connection: Crimp
• Number Of Holes: 2
• Country of Origin: IN
• Bolt Size: 1/4 inches
