Topaz 3201TZ Two Hole - Long Barrel Compression Lug, 8, 1/4 inches Bolt Size replacement mpn

Product Description

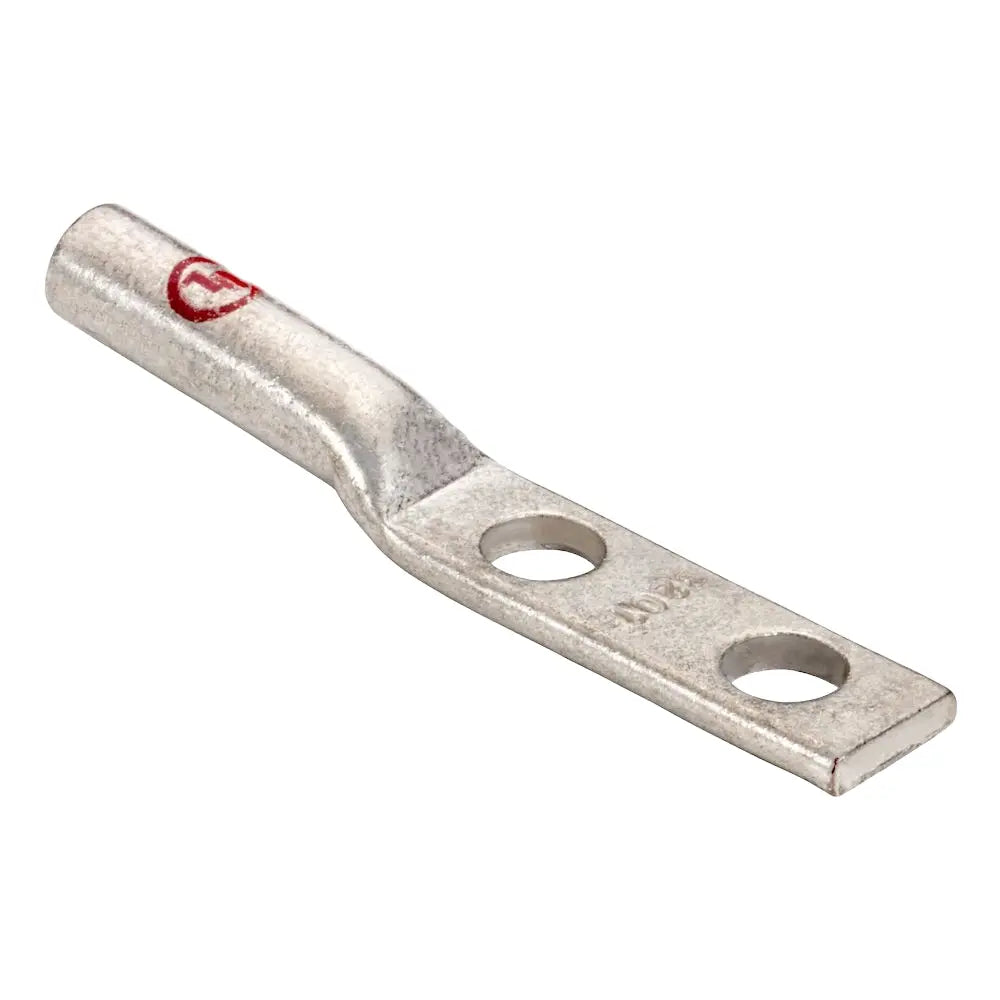

The Topaz 3201TZ Two Hole, Long Barrel Compression Lugs are fabricated from high conductivity copper tubing and tin plated for optimal corrosion resistance. The terminal lug withstands high mechanical stress, making it ideal for direct burial and grounding applications. Available for wire size 8 AWG and is UL listed.

• Fabricated from high conductivity copper tubing
• Tin plated for optimal corrosion resistance
• Ideal for direct burial and grounding applications

Product Highlights

Topaz's Two Hole Long Barrel Compression Lugs are color coded for easy identification and withstand high mechanical stress.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 3201TZ
• Country of Origin: IN

Technical Specifications

• UPC: 751338818125
• Type: Compression Lugs
• Width: 0.42 Inches
• Length: 2.24 Inches
• Material: Copper
• Standard: UL 467, UL File Number E155861, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Cable Size: 8 AWG
• Color Code: Red
• Connection: Crimp
• Voltage Rating: 35,000 VAC
• Number Of Holes: 2
• Country of Origin: IN
• Manufacturer: Topaz
• Manufacturer Part Number: 3201TZ
