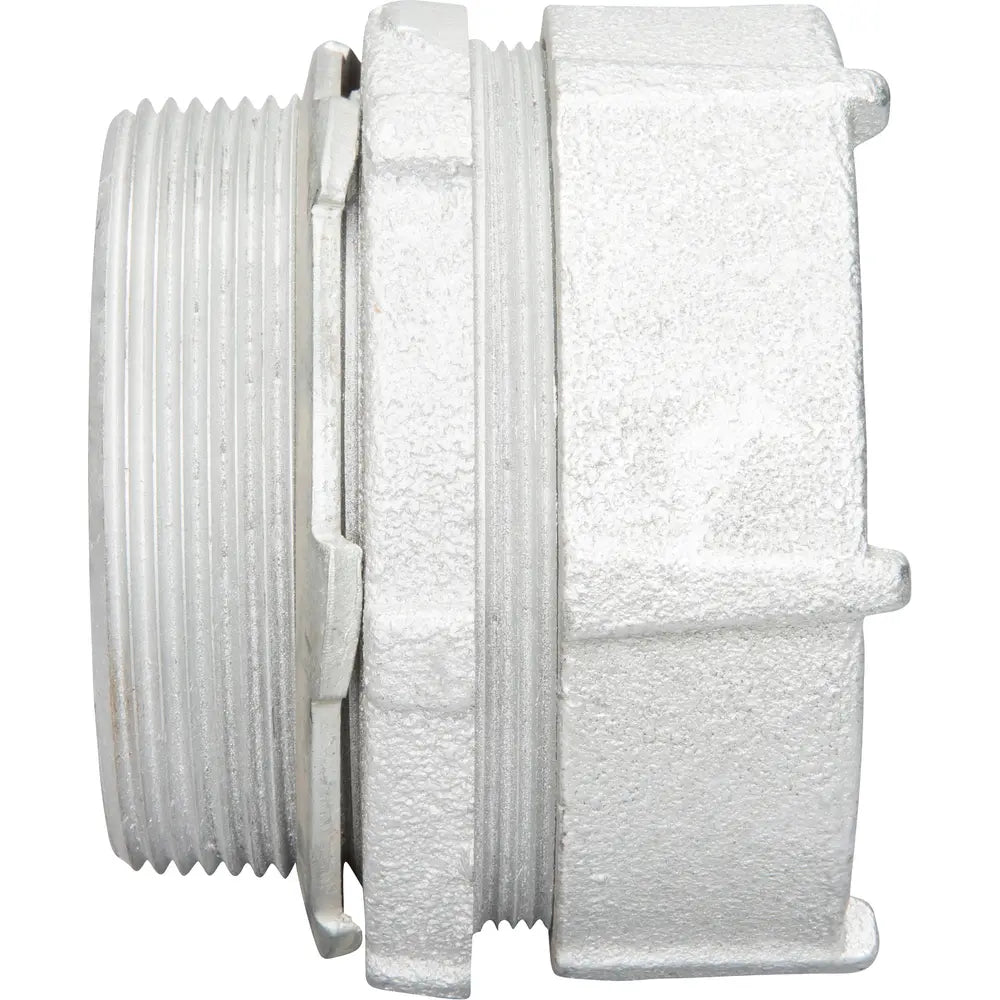

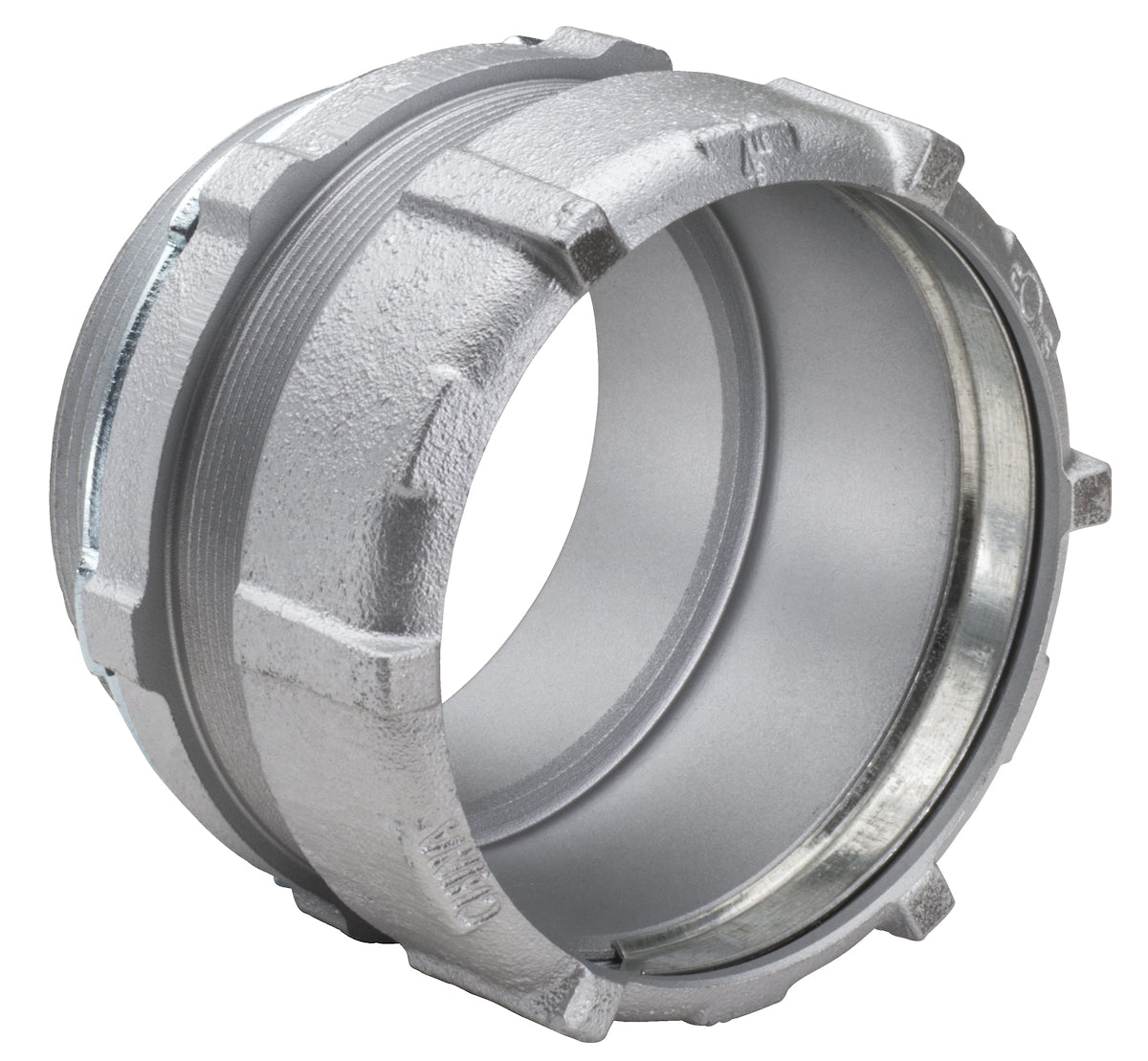

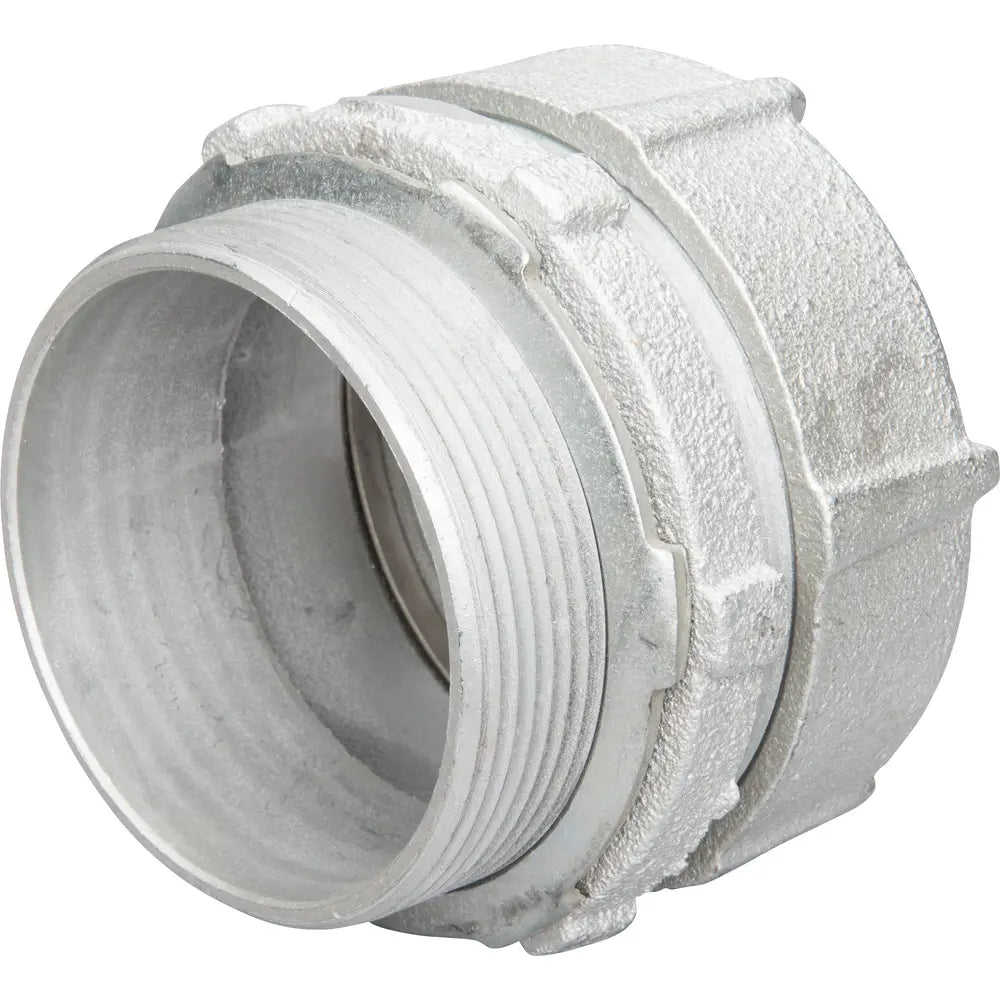

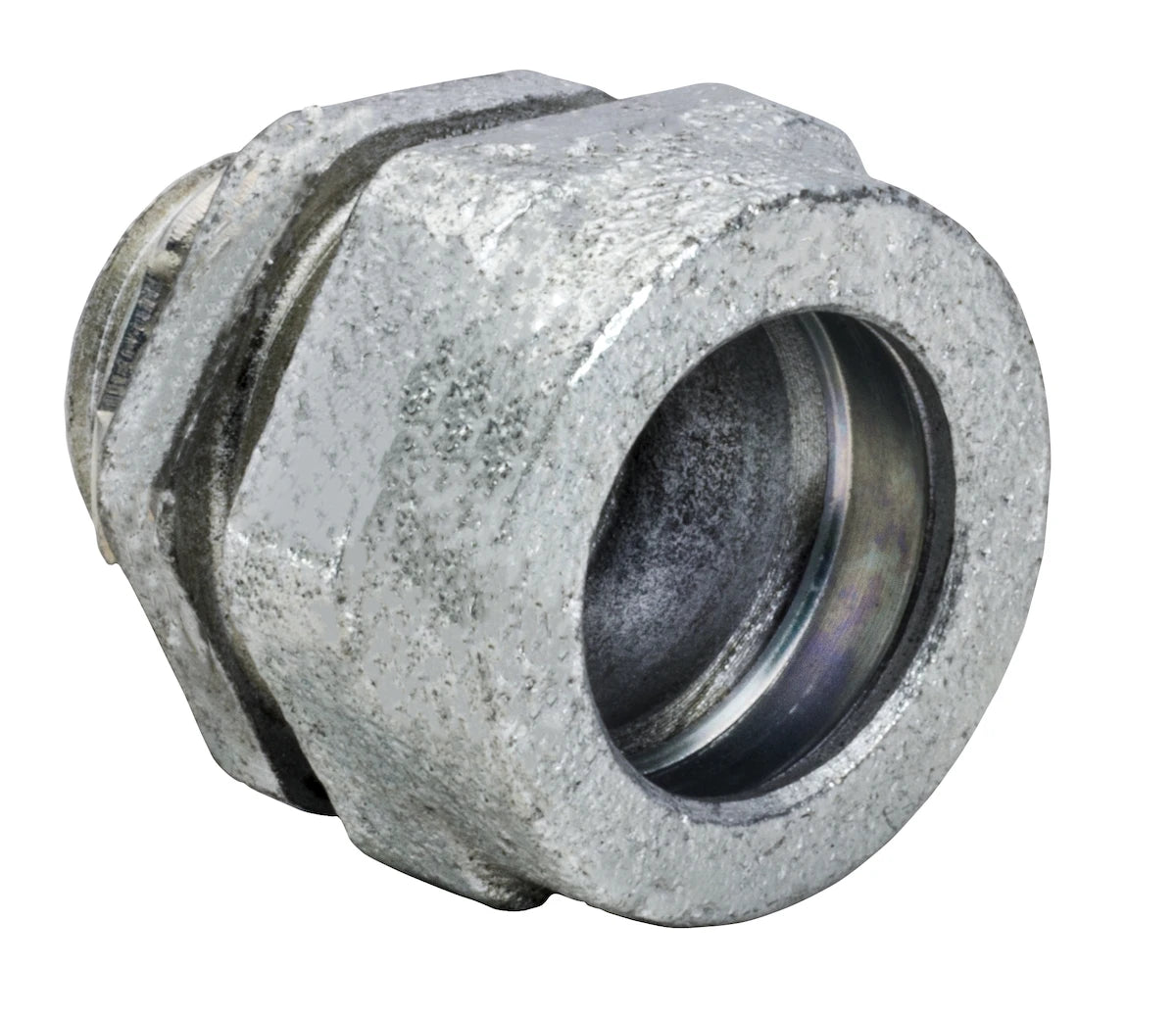

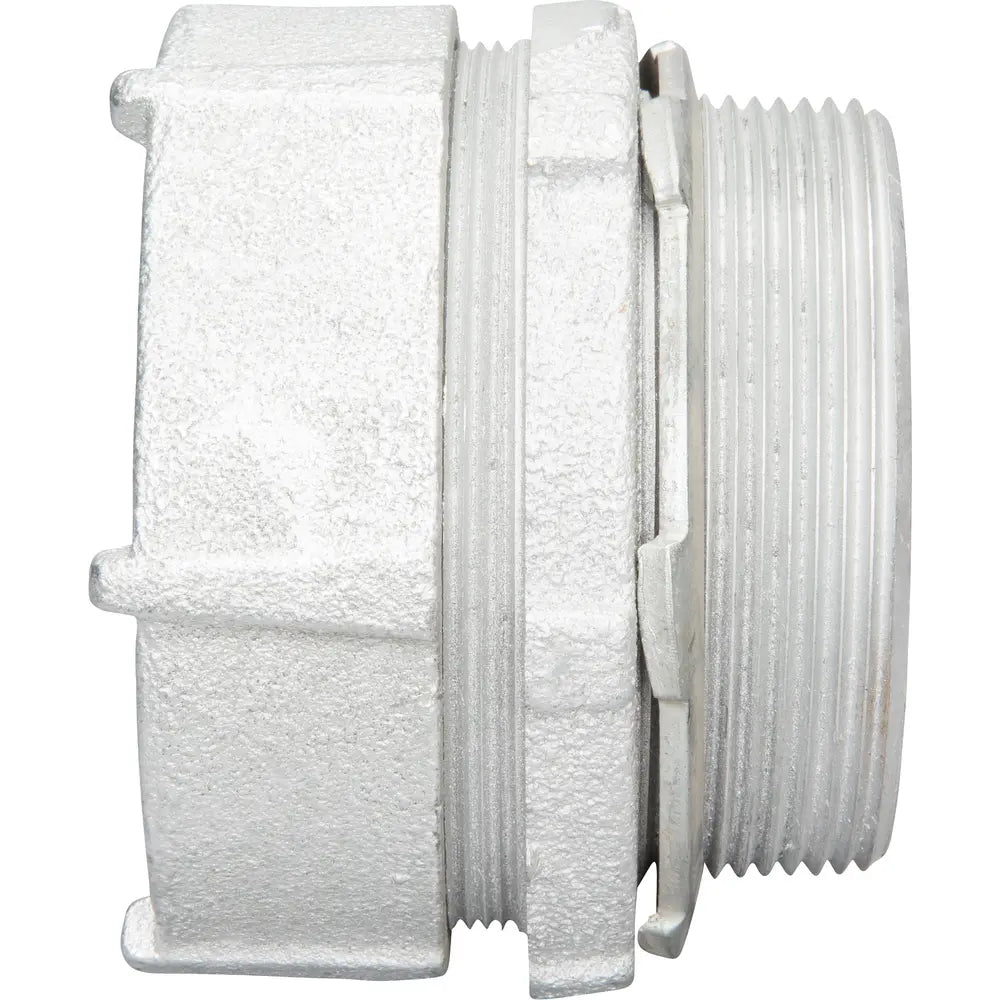

Topaz 268TZ Rigid Connector, 3 inches, Compression Type, Malleable Iron

Product Description

The Topaz 268TZ rigid connector joins unthreaded Rigid or IMC conduit to a steel outlet box or metal enclosure. Constructed from malleable iron for lasting mechanical protection, these connectors bond rigid or IMC conduit to electrical junction boxes or enclosures. Pack of 1 unit.

• Compression type
• Threadless and concrete tight
• UL listed

Product Highlights

The Topaz 268TZ rigid connector provides a secure and durable connection for rigid or IMC conduit.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 268TZ
• Country of Origin: CN

Technical Specifications

• Type: Compression - Rigid Connectors
• Color: Gray
• Length: 3.13 Inches
• Material: Malleable Iron
• Standard: UL 514B, UL E170258, US Federal Specification A-A-50553, NEMA/ANSI FB-1, Military Specifications Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Connection: Threaded
• Trade Size: 3 in.
• Size: 3 In.
• Manufacturer: Topaz
• Insulation: Non-Insulated
• Brand: Topaz Lighting and Electric
• Height: 3-1/8 Inch
• Product Code: 268TZ
• Manufacturer Part Number: 268TZ
• Brand Name: Topaz
• Brand Part Number: 268TZ
