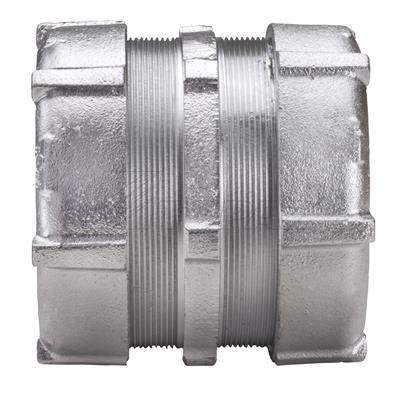

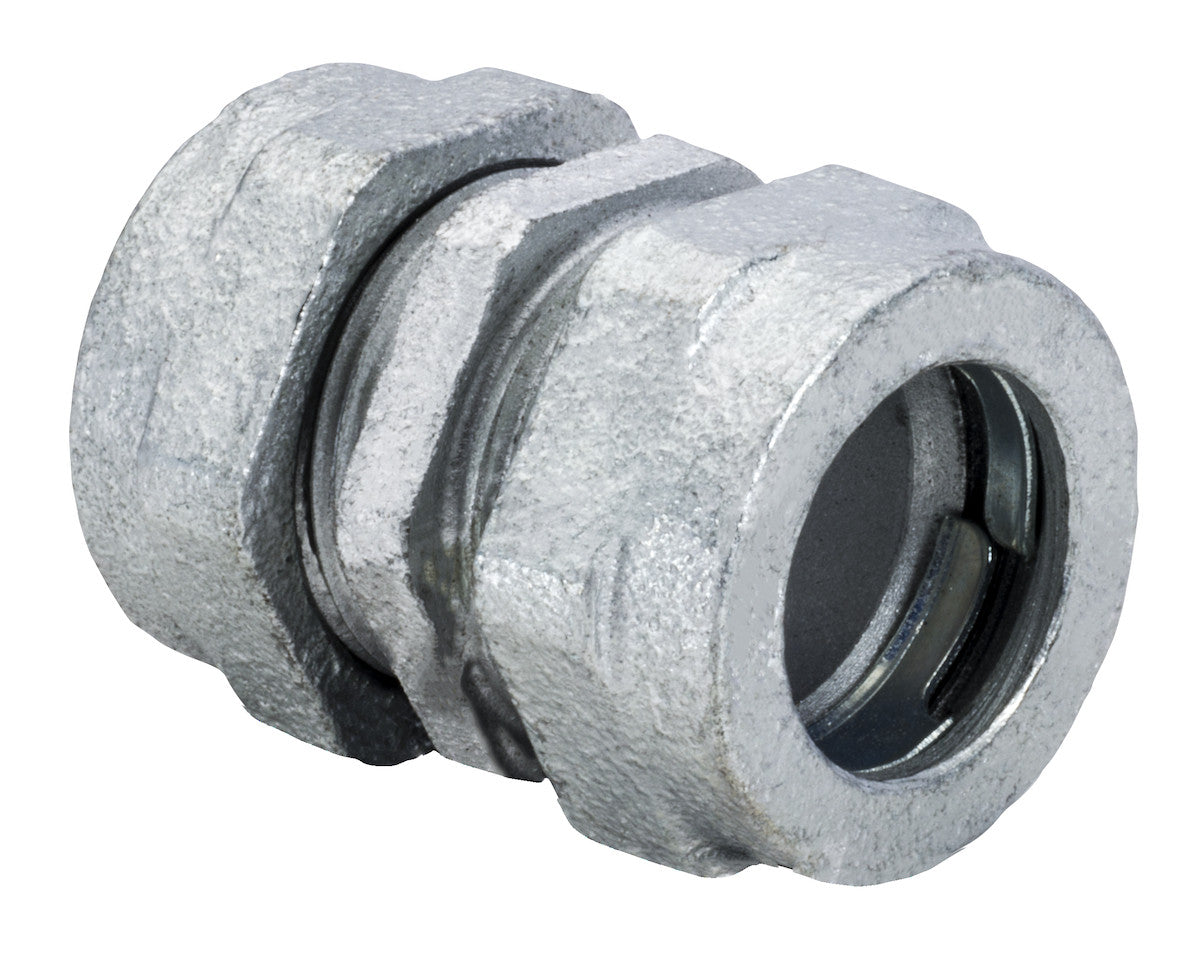

Topaz 260TZ 4 inches Steel Compression Rigid Coupling

TOPAZ
Brand: TOPAZ
SKU: 260TZ
Availability: Out Of Stock
$34.49
$34.49
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Topaz 260TZ 4" Steel Compression Rigid Coupling is designed for rigid and IMC conduit. Features include support for service entrance cables, types SE & SEU, to mounting surfaces. It is constructed from malleable iron with a zinc plated finish for durability and corrosion resistance. This coupling is UL Listed for use in Canada and the US.

  • Supports service entrance cable,types SE & SEU, to mounting surface
  • For use with SE and SEU cable
  • COMPRESSION, THREADLESS TYPE

Product Highlights

The Topaz 260TZ rigid coupling ensures secure connections for electrical conduits in various applications.

Product Information

Standard Information

  • Brand: TOPAZ
  • Manufacturer Part Number: 260TZ
Technical Specifications
Installation
Compression
Material
Zinc Plated Malleable Iron
Number of Holes
1 Hole
Size
4 in
TC Connection
Female Threaded
Trade Size
4 Inch
Type
Rigid Coupling
Brand
Topaz
Product UPC
75133812161
Used With
Rigid & IMC Conduit
Length
6.81 Inch
Outside Diameter
5.75 in
Item UPC
751338121614
Manufacturer Part Number
260TZ
Flexibility
Rigid
Diameter
5.75 inch
Approval
UL (CANADA AND US)
Used On
IMC/RIGID Conduit
Concrete Tight
Yes
Applicable Standard
FEDERAL SPECIFICATION W-F-406E, W-F-406D
Connection Type
Compression
Conduit Type
Rigid Metal (RMC)
Thread Size
4 in
Accessory Type
Conduit Couplings
Insulation
Non-Insulated
