Topaz 238S TOP 238S 3 In 45Deg Liquid Tight

Product Description

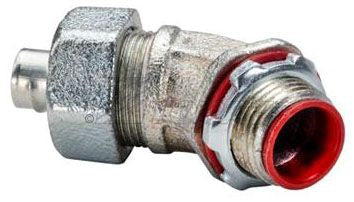

The Topaz 238S is a three-inch liquidtight connector designed for a 45-degree angle. This connector is made of malleable iron and is zinc plated for durability. It is suitable for use in hazardous locations and is approved for the Canadian and US markets.

• UL Listed for safety in hazardous environments.
• Constructed from zinc plated malleable iron.
• Designed for use with liquid tight flexible metal conduit.

Product Highlights

This liquidtight connector is ideal for electrical installations in wet and hazardous locations.

Product Information

Standard Information

• Manufacturer: Topaz
• UPC: 75133833590

Technical Specifications

• Type: Liquidtight connector
• Angle: 45 degrees
• Trade Size: 3 inches
• Material: Zinc plated malleable iron
• Overall Dimensions: 4.74 inches x 5.33 inches x 7.01 inches
• Application: Hazardous location
• Applicable Standards: Class I Division 2, Class II Division 1 and 2, Class III Division 1 and 2, NEC 351-1
• Approval: UL (Canada and US)
