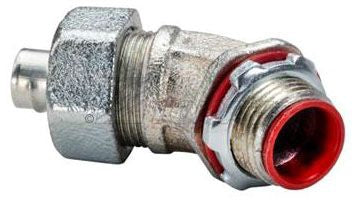

Topaz 236S TOP 236S 2IN 45DEG LT CONNECTOR

Product Description

The Topaz 236S is a liquidtight connector designed for flexible metal conduit. It has a 45-degree angle and is ideal for applications that require secure connections in hazardous locations. The body is made from zinc-plated malleable iron and includes an insulated throat for added protection.

• Type: 45-degree angle connector
• Size: 2 inches
• Material: Zinc plated malleable iron and steel locknut

Product Highlights

This connector is suitable for use in hazardous environments and complies with UL standards. It can be used in Class 1 Division 2, Class II Divisions 1 and 2, and Class III Divisions 1 and 2 applications.

Product Information

Standard Information

• Manufacturer: Topaz
• UPC: 75133833570
• Approval: UL (Canada and US)

Technical Specifications

• Overall Dimension: 3.24 inches x 3.38 inches x 4.64 inches
• Weight: 2.95 lb
• Connection Type: Threaded
• Insulation: Insulated throat
• Application: Used on liquid tight flexible metal conduit
• Environmental Conditions: Hazardous and wet locations
• Country of Origin: China
• Package Quantity: 20
