Topaz 235S TOP 1-1/2IN 45DEG LT CONN

Product Description

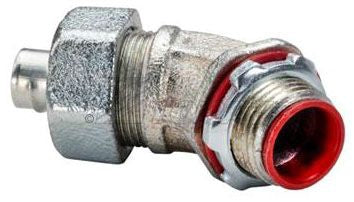

The Topaz 235S is a liquidtight connector designed for flexible metal conduit. It features a 45-degree insulated throat with a trade size of one and a half inches. The body is made of zinc plated malleable iron, while the locknut is steel.

• Type: Insulated Liquidtight Connector
• Trade Size: 1-1/2 Inches
• Approval: UL (Canada and US)

Product Highlights

This connector is suitable for applications in hazardous locations, making it ideal for electrical installations where moisture and dust are concerns.

Product Information

Standard Information

• Manufacturer: Topaz
• UPC: 75133833560

Technical Specifications

• Material: Zinc Plated Malleable Iron (Body), Steel (Locknut)
• Overall Dimensions: 2.62 inches x 2.77 inches x 4.01 inches
• Application: Class 1 Div 2, Class II Div 1 and 2, Class III Div 1 and 2
• Environmental Conditions: Hazardous and Wet Locations
• Connection Type: Threaded
• Package Quantity: 20 per case
• Weight: 2.2000 lbs
