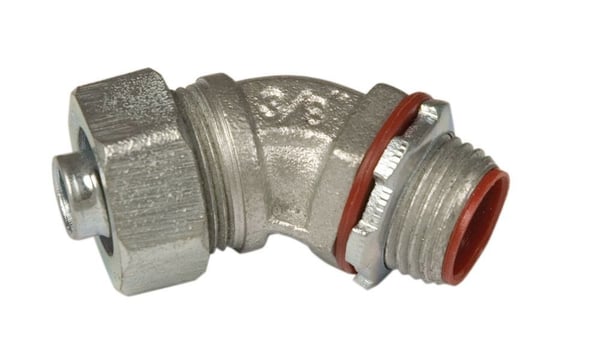

Topaz 232S 45 deg Angle Liquidtight Connector, Malleable Iron, 3/4 inches

Product Description

The Topaz 232S 45 DEG Angle Liquidtight Connector ensures a liquidtight connection for liquidtight conduit. Fabricated from strong malleable iron and assembled with a steel locknut, the connector features an insulated throat to protect against conductor abrasion. It is zinc plated for resilience and integrity.

• Liquid Tight
• Rain Tight
• Oil Tight

Product Highlights

This 45 degree liquidtight connector with insulated throat ensures an enduring connection for liquidtight conduit and can serve to terminate an external bonding conductor.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 232S

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: 232S
• Suitable For Use With: Ground and Seal Liquid Tight Conduit to Box/Enclosure
• Trade Size: 3/4 in
• Type: Liquidtight Connector
• Application: Hazardous and Wet Locations
• Standard & Approvals: UL 514B, UL/cULus File No. E148716, CSA Certified, Federal Specification No. A-A-50552, NEMA/ANSI FB-1, Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D, NEC 501-4(b), 502-4(a) (2) Class I Div 2, Class II Div 1 2, Class III Div 1 2
• Angle: 45 Degree
• Finish: Zinc Plated
• Material: Malleable Iron
• Includes: Steel Ferrule and Locknut
• Throat: Insulated
