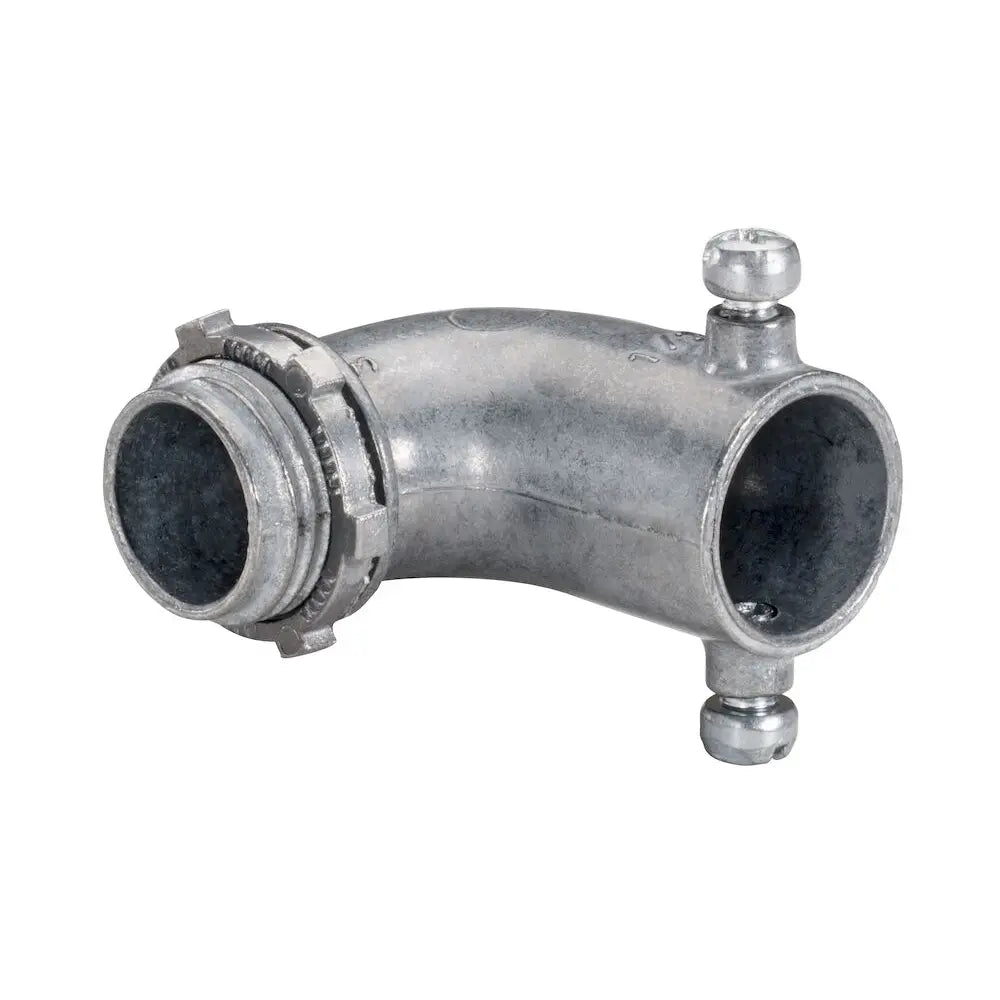

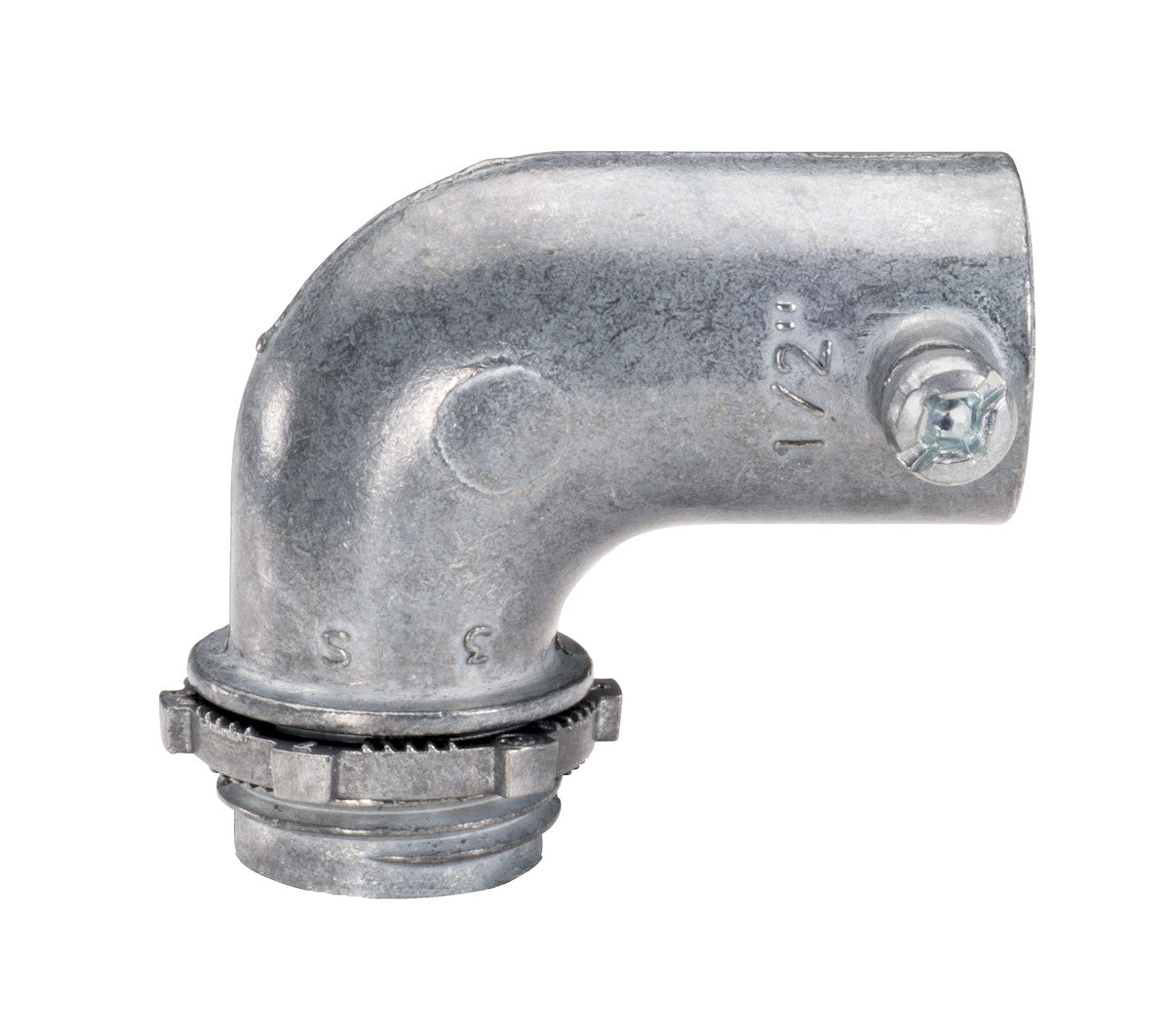

Topaz 162TZ 3/4 inches Set Screw Type Connector

Product Description

The Topaz 162TZ 90° EMT pull elbows join EMT conduit to a steel outlet box or enclosure when specifications require a close radius. The set-screw assembly provides concrete tight connections when taped and is suitable for use with 1/2" to 3/4" EMT. Crafted from corrosion resistant zinc die cast for indoor and outdoor use.

• 90° EMT pull elbows
• Joins EMT conduit to a steel outlet box or enclosure
• Set-screw assembly provides concrete tight connections when taped

Product Highlights

This 3/4" set screw type connector is crafted from corrosion resistant zinc die cast and UL listed for connecting EMT conduit.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 162TZ
• Country of Origin: US

Technical Specifications

• Size: 3/4 Inches
• Type: 90 DEG Angle EMT Connector
• Finish: Zinc Die Cast
• Length: 1.98 Inches
• Material: Die Cast Zinc
• Mounting: Threaded
• Standard: UL 514B, UL File Number E148720, US Federal Specification Number A-A-50553, CSA Certified, NEMA/ANSI FB-1, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Insulated: No
• Connection: Threaded x Set Screw
• Trade Size: 3/4 in.
• Country of Origin: US
• Environmental Conditions: Dry Location
• Brand Name: Topaz
• Brand Part Number: 162TZ
• Manufacturer Part Number: 162TZ
