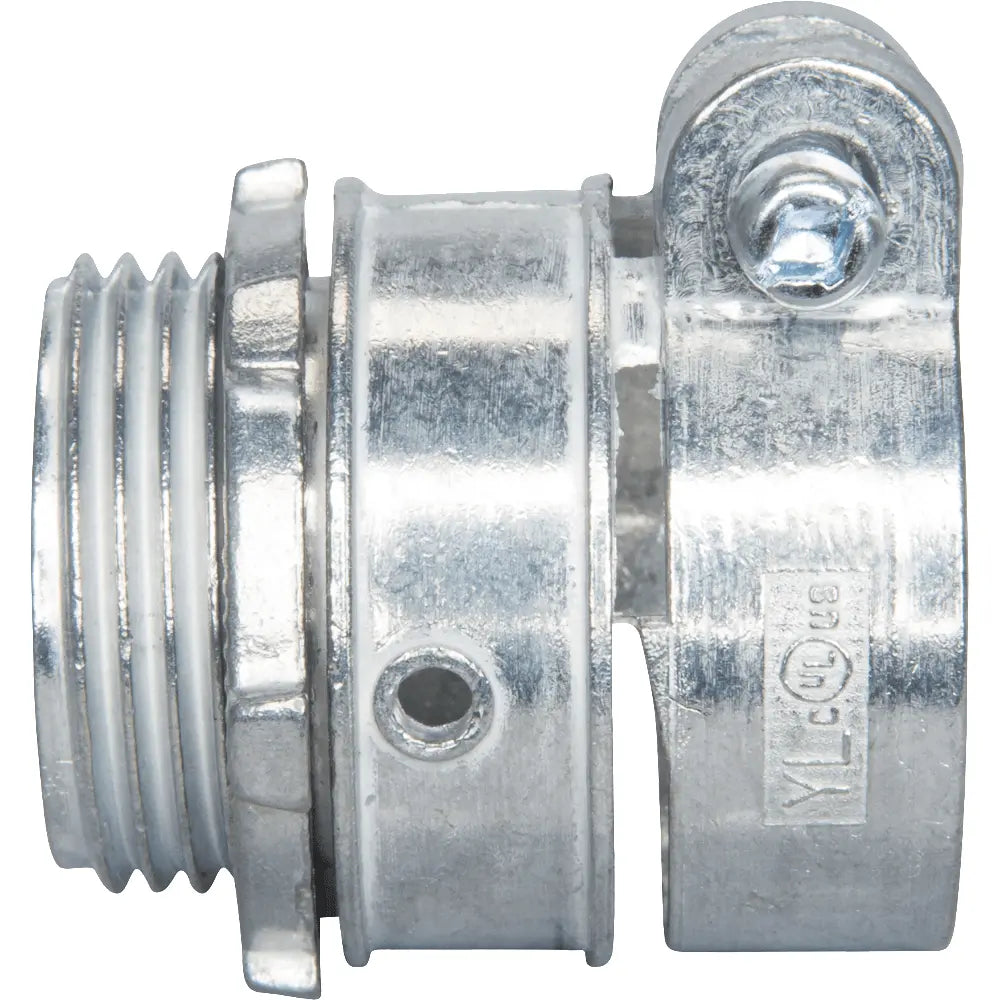

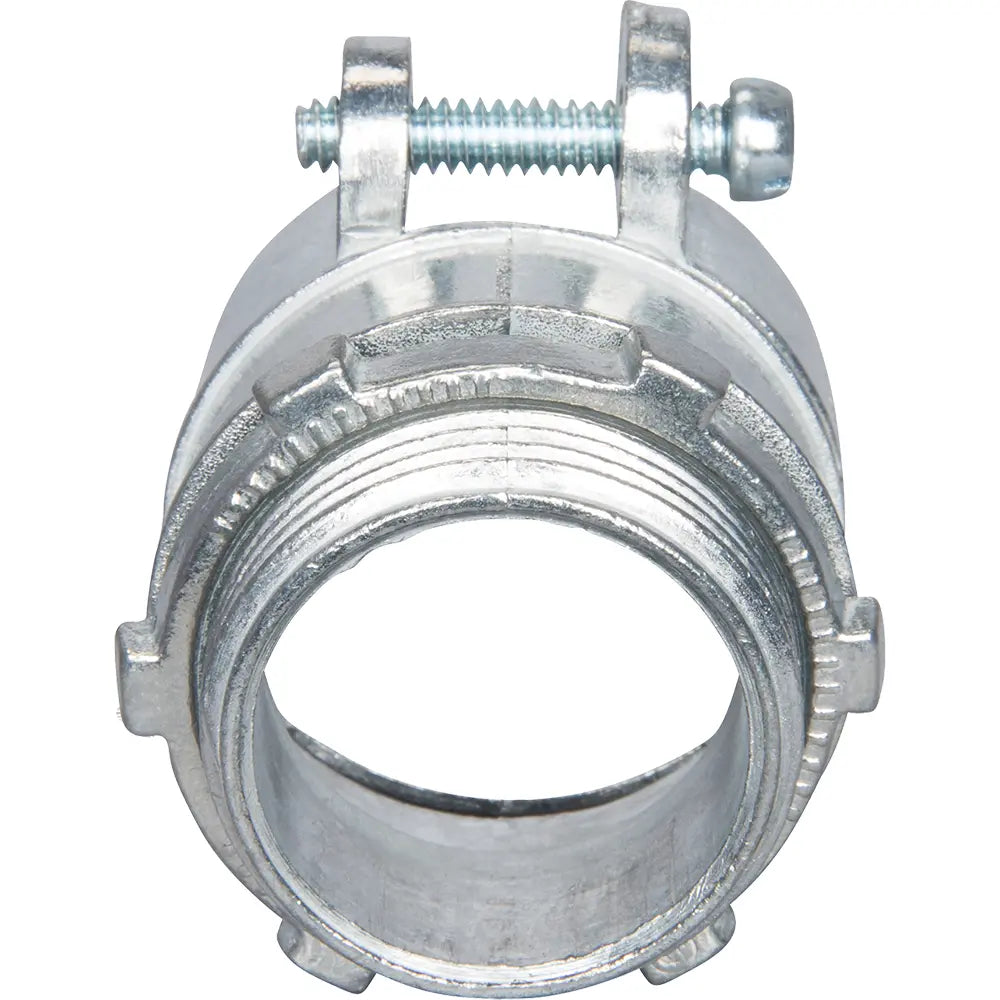

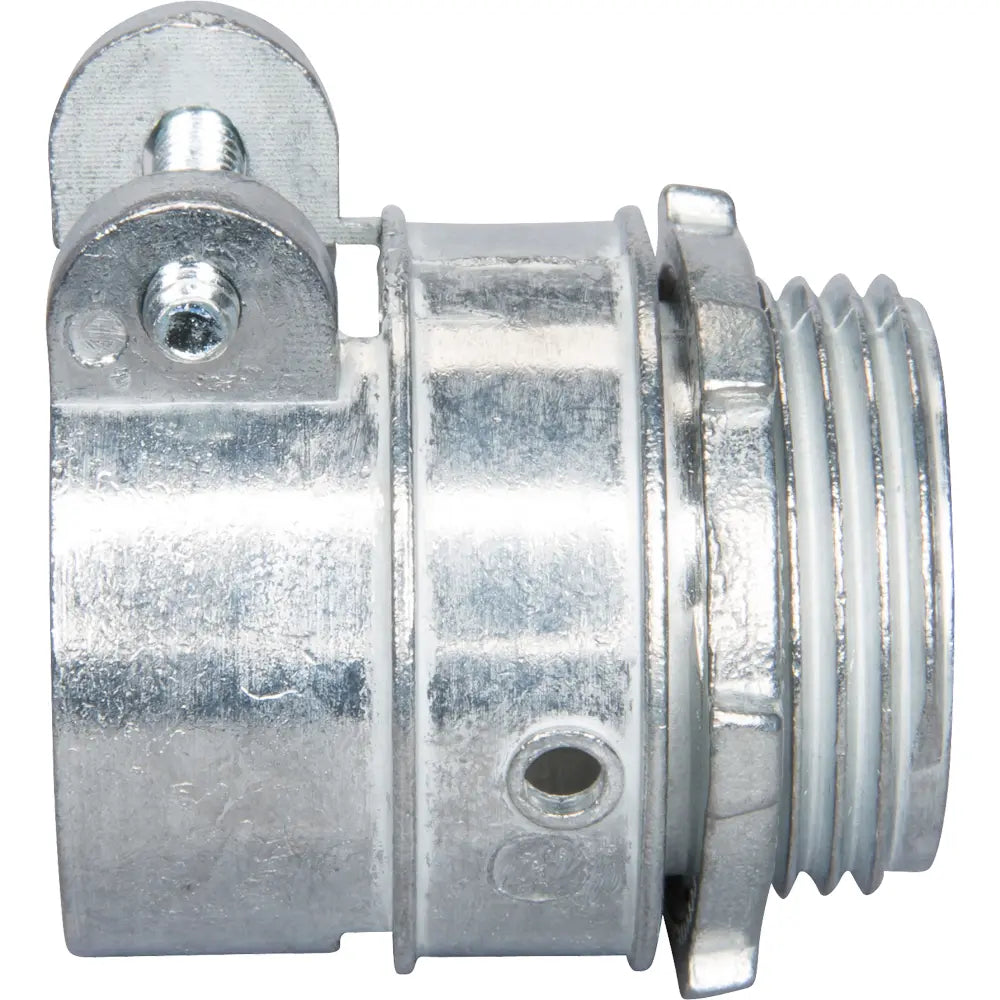

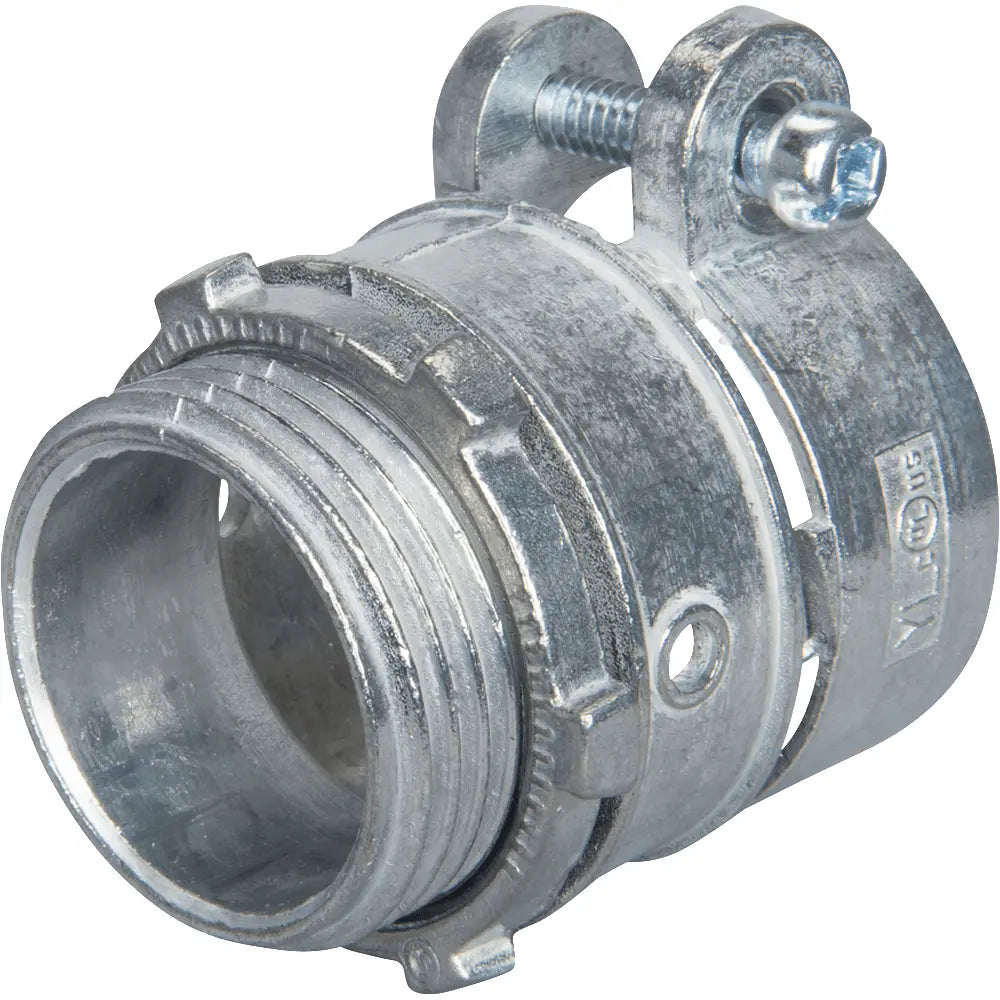

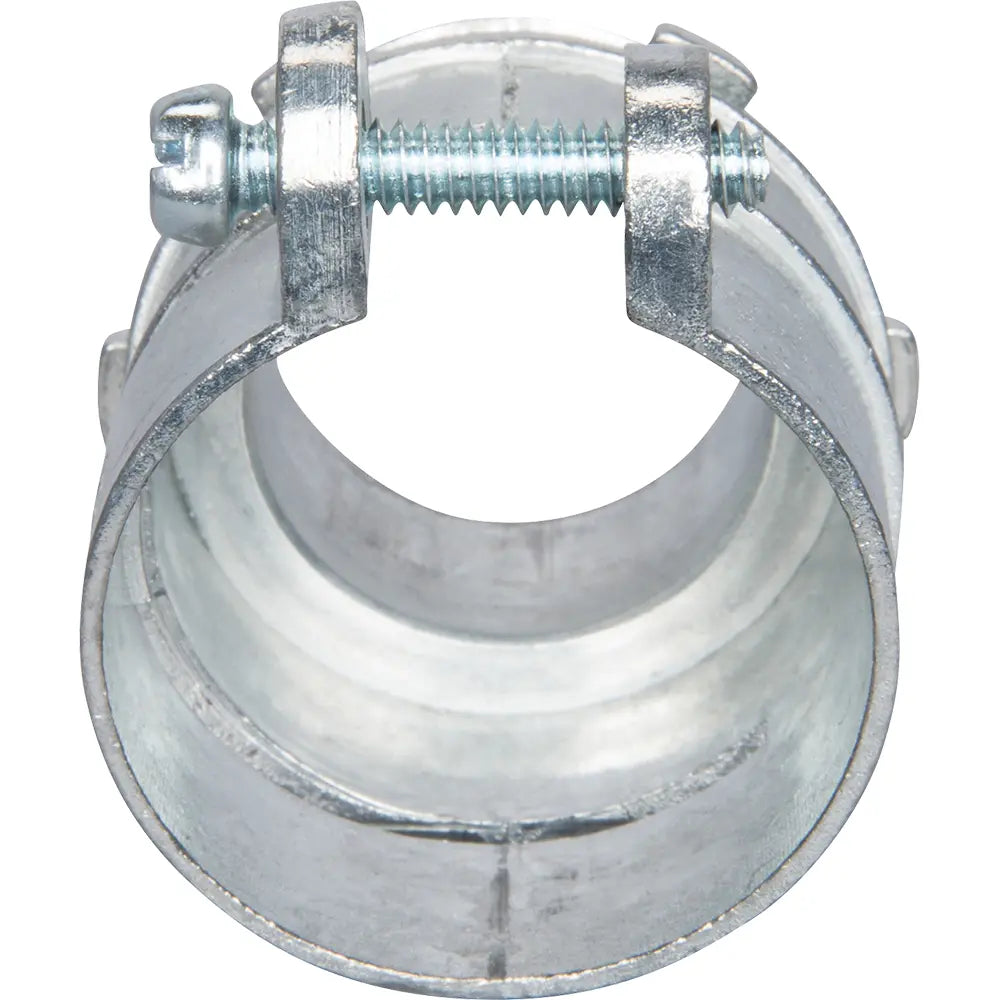

Topaz 153 1 inches Bx, Flex Connector, Straight, Squeeze Type, Zinc Die Cast

Product Description

The TOPAZ 153 is a 1" BX-Flex straight squeeze connector made from die-cast zinc. It is designed for connecting flexible metallic conduit and steel AC cable to a steel outlet box, load center, or other metal enclosure in dry locations. The connector securely joins flexible metal conduit to EMT.

• Squeeze type straight construction.
• Made from corrosion-resistant and durable zinc die cast.
• Connects flexible metal conduit or armored cable to electrical boxes or enclosures in dry locations.

Product Highlights

This Topaz BX-Flex connector features a squeeze type straight construction and is UL listed for use in dry locations.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 153
• Country of Origin: UKN

Technical Specifications

• Type: Straight
• Color: Gray
• Length: 1.75 Inches
• Material: Die-Cast Zinc
• Mounting: Threaded
• Standard: cULus
• Connection: Screw Clamp
• Insulation: Non-Insulated
• Trade Size: 1 in.
• Application: For connecting flexible metallic conduit and steel AC cable to a steel outlet box, load center or other metal enclosure
• Standard & Approvals: CSA Certified, UL Listed, UL 514B, UL File No. E148716, US Federal Specification A-A-50552, NEMA/ANSI FB-1, Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D
• Cable Openings: 1.14 to 1.38 in
• Cable Type: BX-Flex
• Catalog ID: SWI153
• Connection Type: Threaded x Squeeze
• Diameter: 1.38 inches
