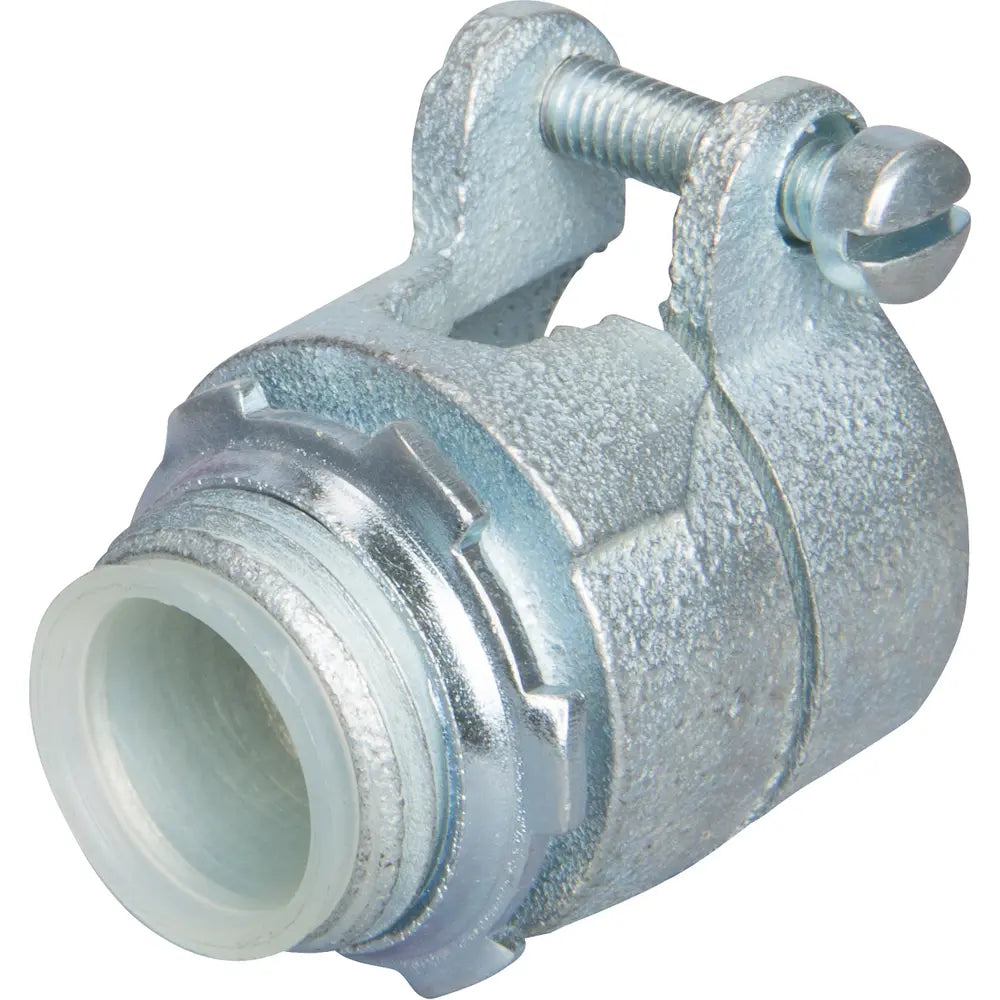

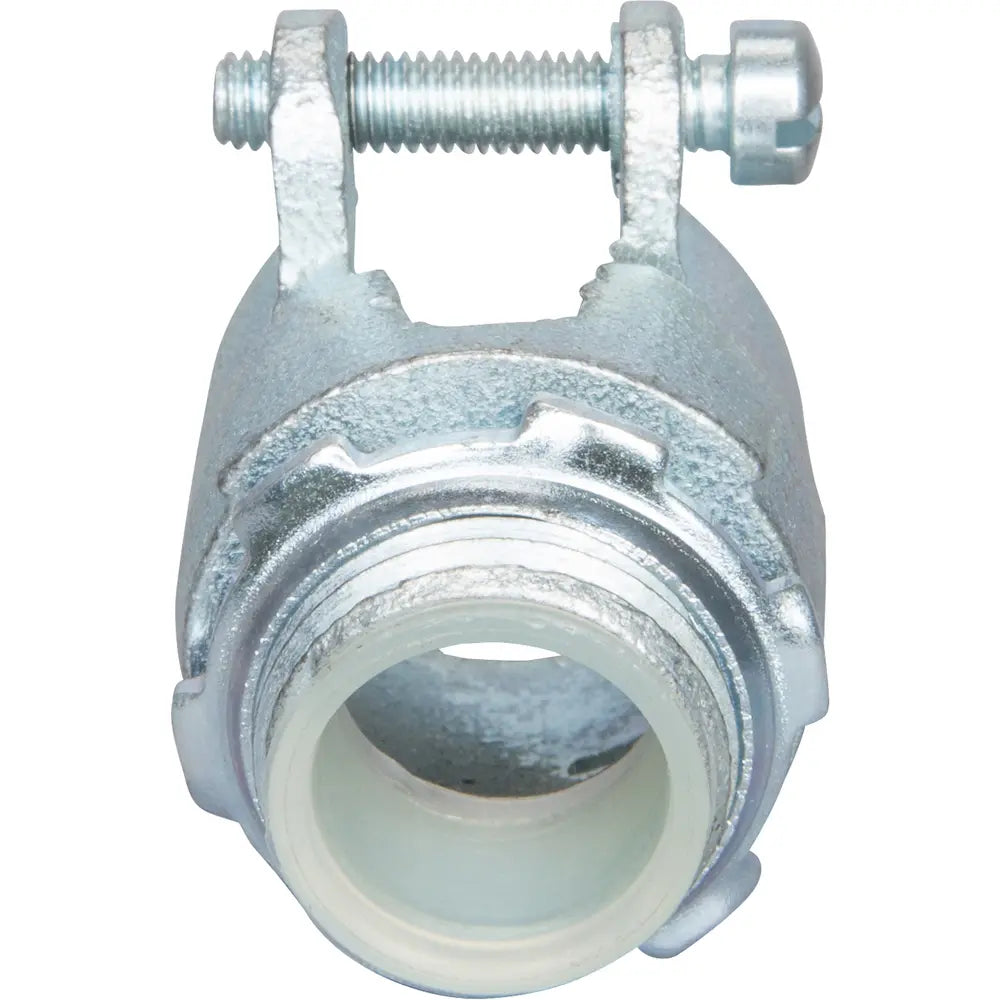

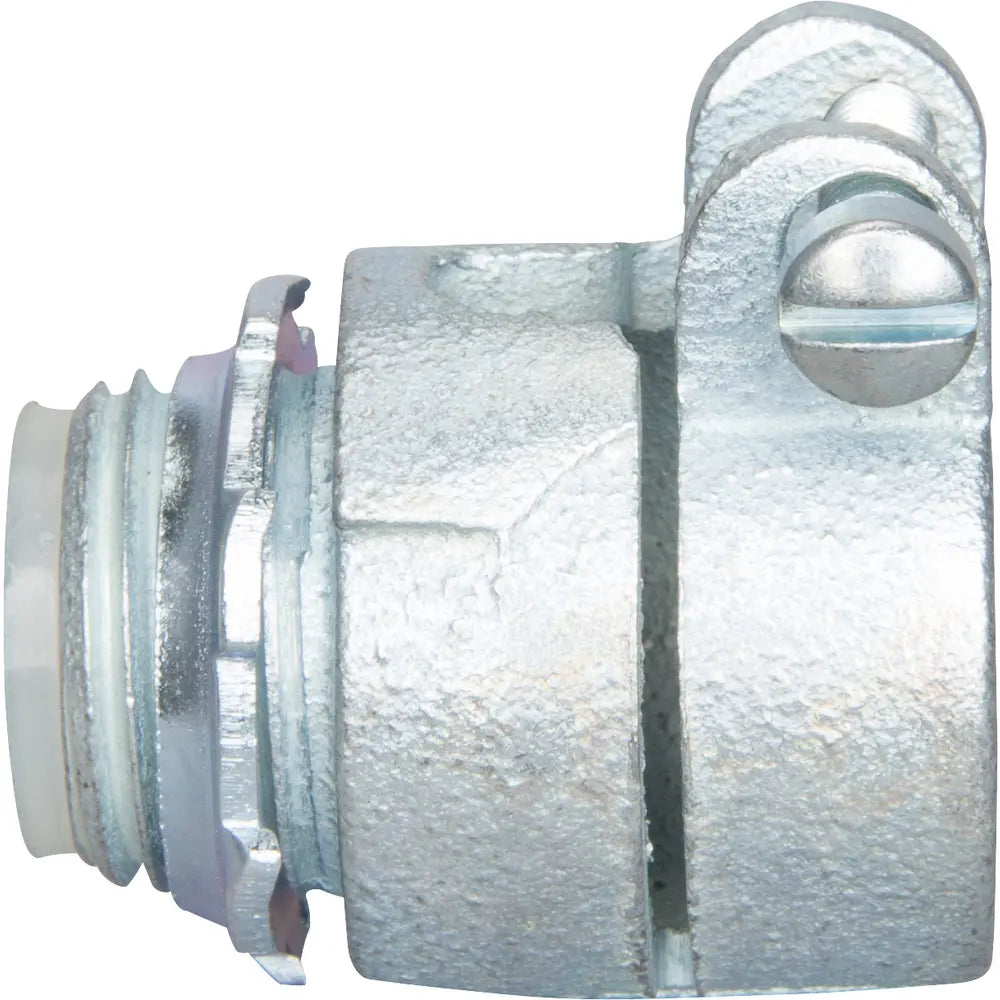

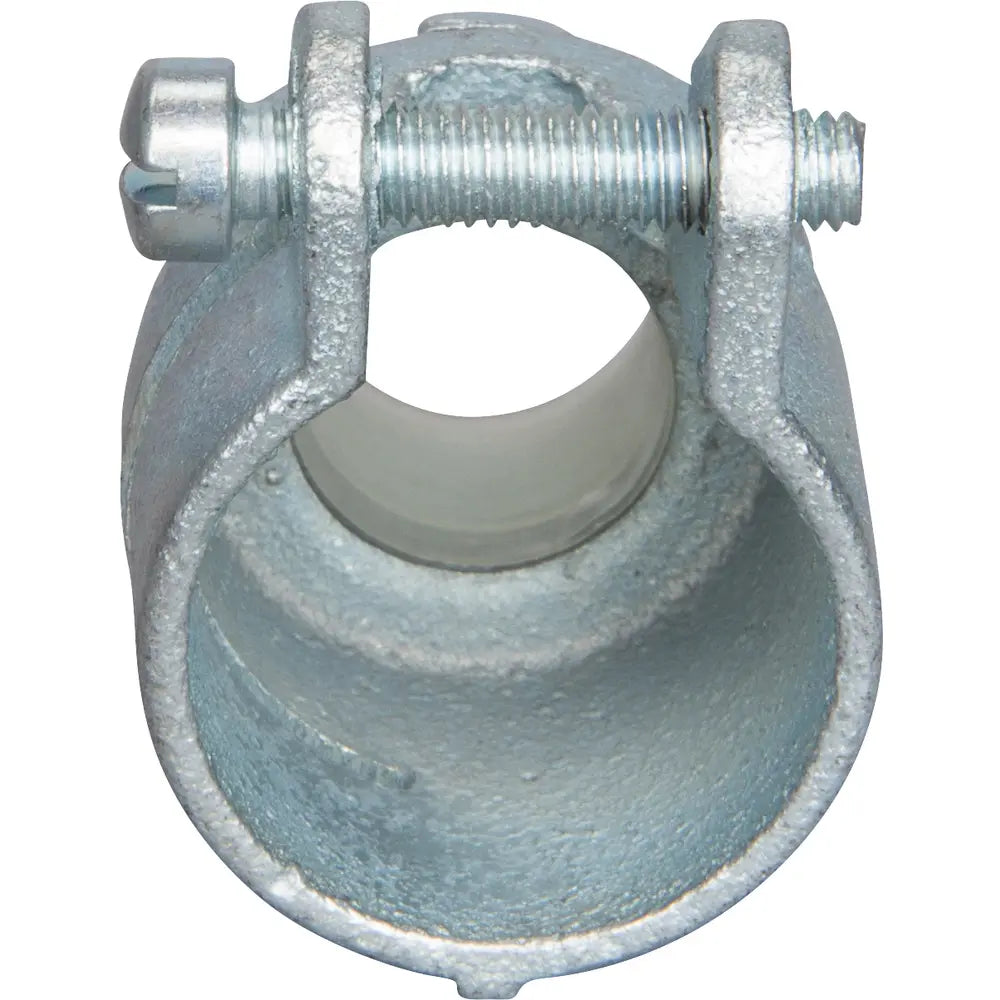

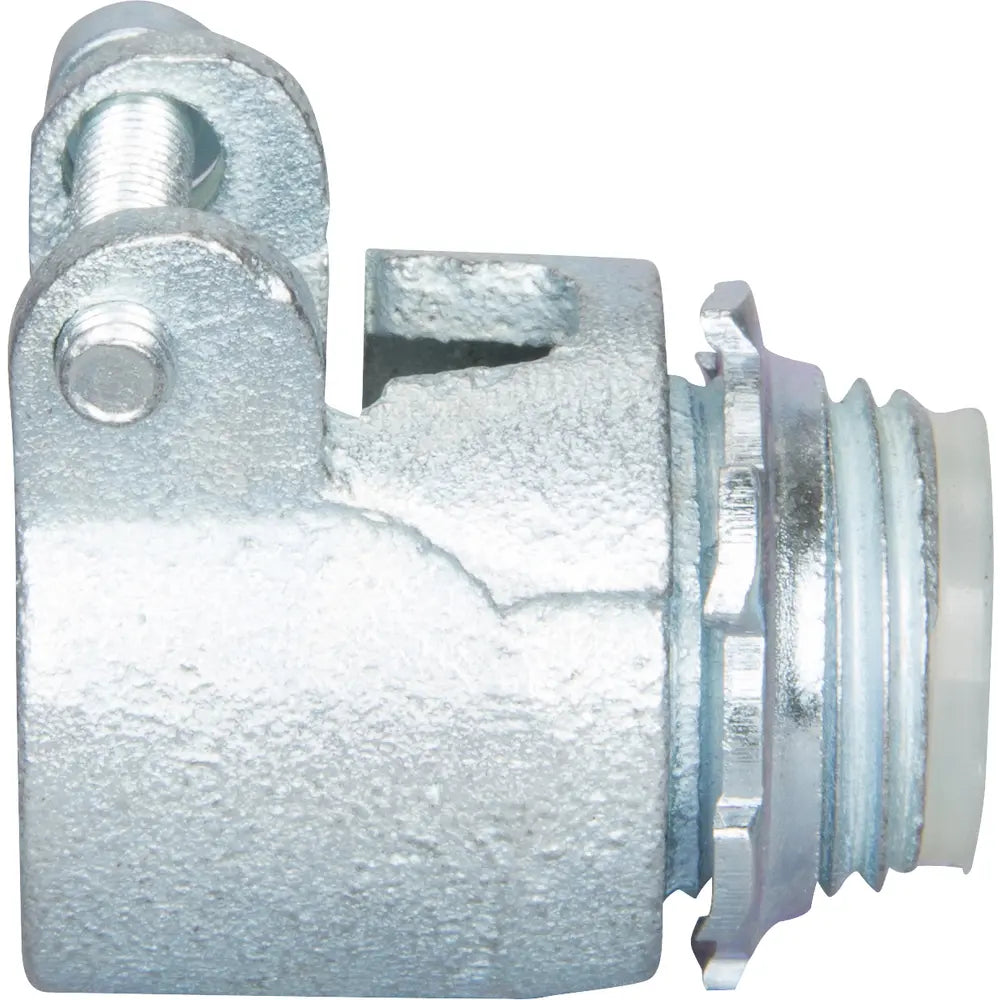

Topaz 152MI 3/4 inches Bx Flex Connector, Straight, Squeeze Type with Insulated Throat, Malleable Iron

Product Description

The Topaz 152MI is a 3/4" BX flex connector. Designed for indoor use in dry locations, it connects flexible metallic conduit and steel AC cable to steel outlet boxes, load centers, or other metal enclosures. It is made from high-grade malleable iron with a zinc finish.

• Connects flexible metallic conduit and steel AC cable
• Suitable for indoor use in dry locations
• Constructed from malleable iron with a zinc finish

Product Highlights

This Topaz 152MI connector ensures secure connections of flexible metal conduit or armored cable to various metal enclosures. It features an insulated throat for added protection against abrasion.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 152MI
• Country of Origin: UKN

Technical Specifications

• Type: Flex Connectors
• Length: 1.13 Inches
• Diameter: 1.08 Inches
• Material: Malleable Iron
• Standard: UL, CSA
• Connection: Screw Clamp
• Insulation: Insulated
• Trade Size: 3/4 in.
• Model / MPN: 152MI
• Cable/Conduit Type: Steel AC Cable, Flexible Metallic Conduit
• Cord Size: 0.91 to 1.08 Inch
• Installation: (1) Screw, Squeeze
• Throat Type: Insulated
• Finish: Zinc Plated
• Thread Size: 0.5 Inch
• Application: Indoor, Dry Location
• Manufacturer Part Number: 152MI
