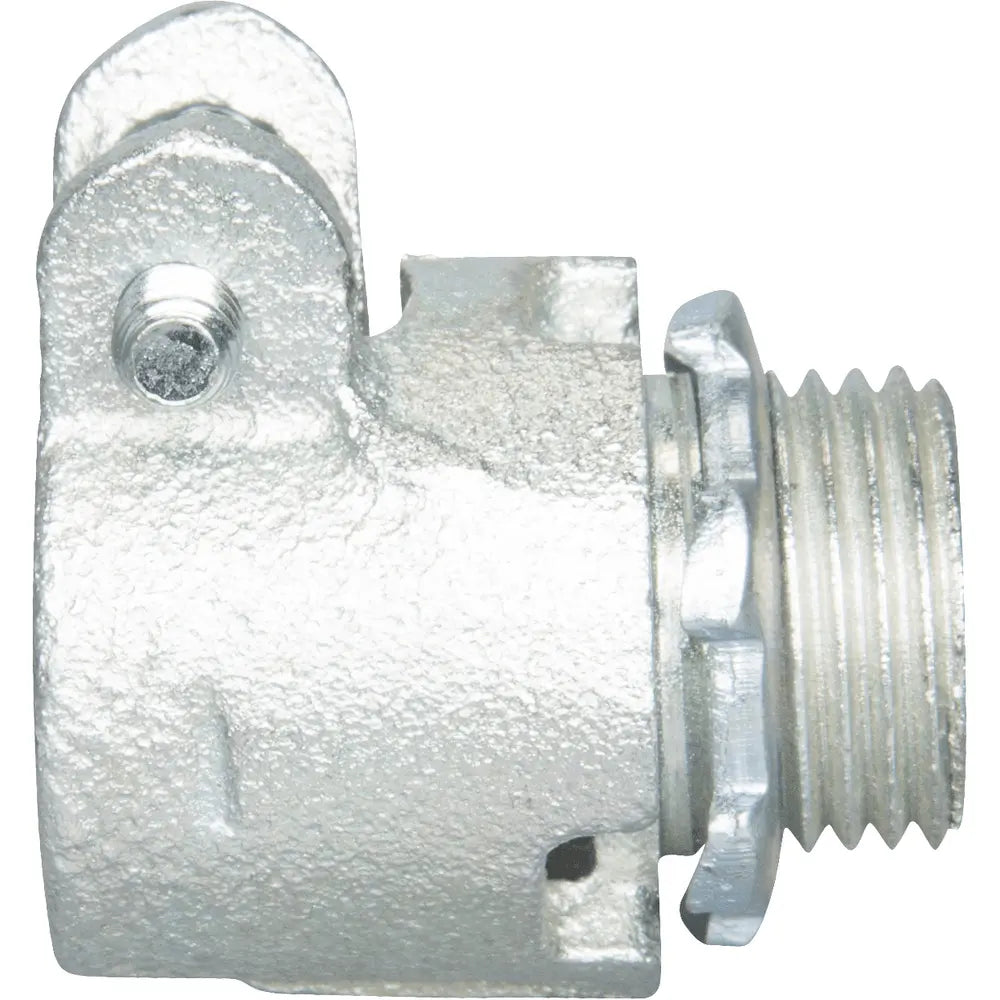

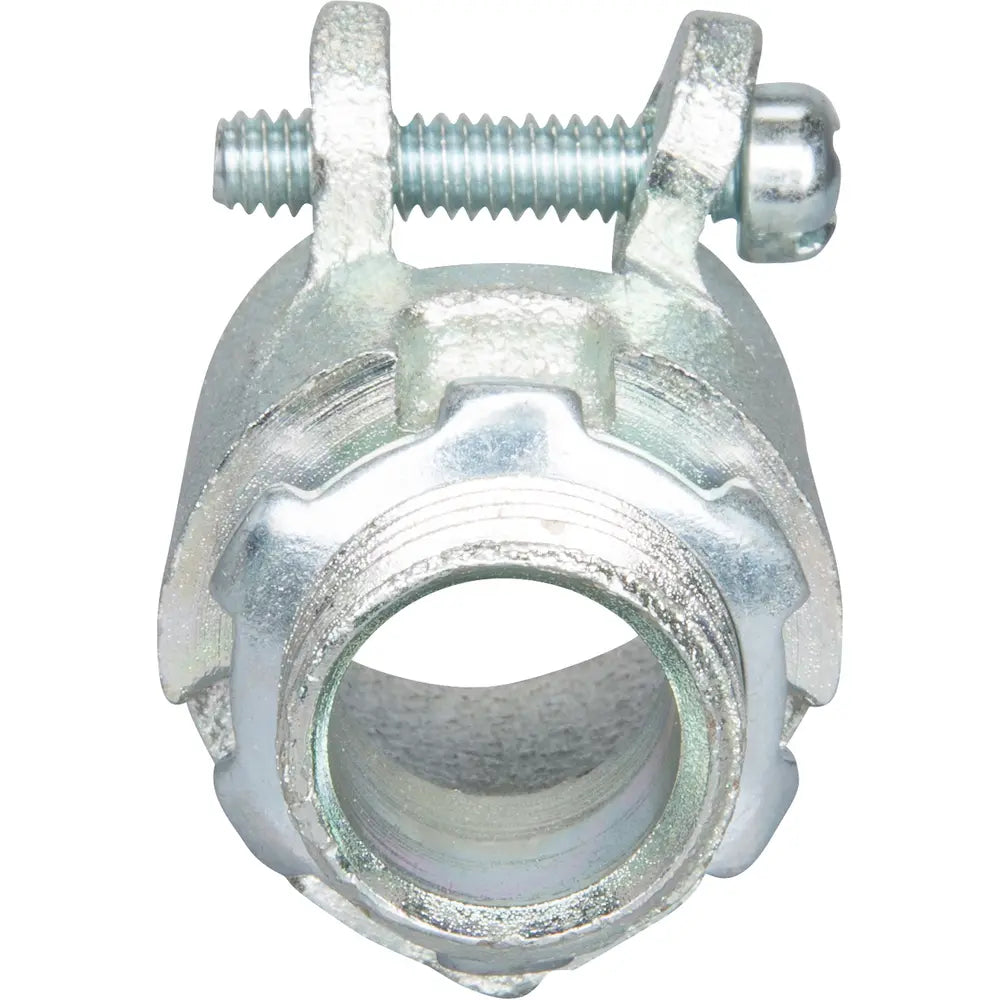

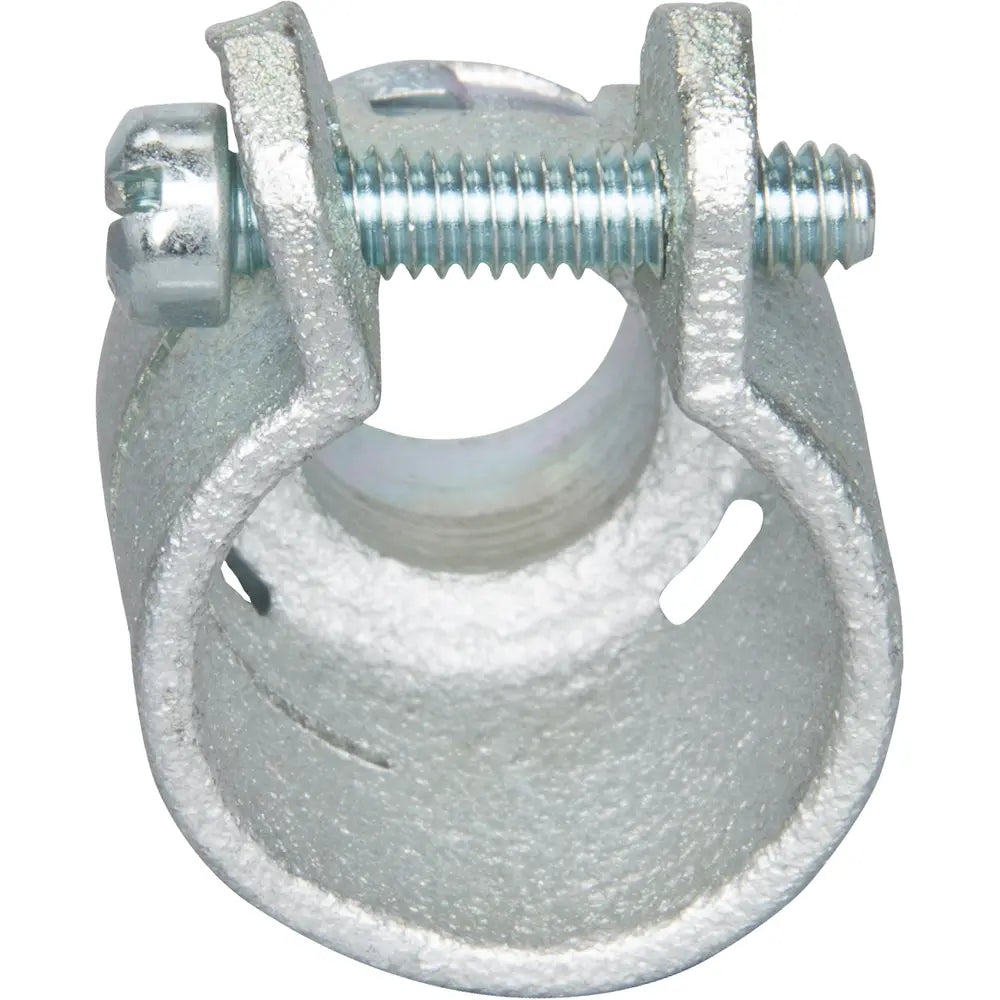

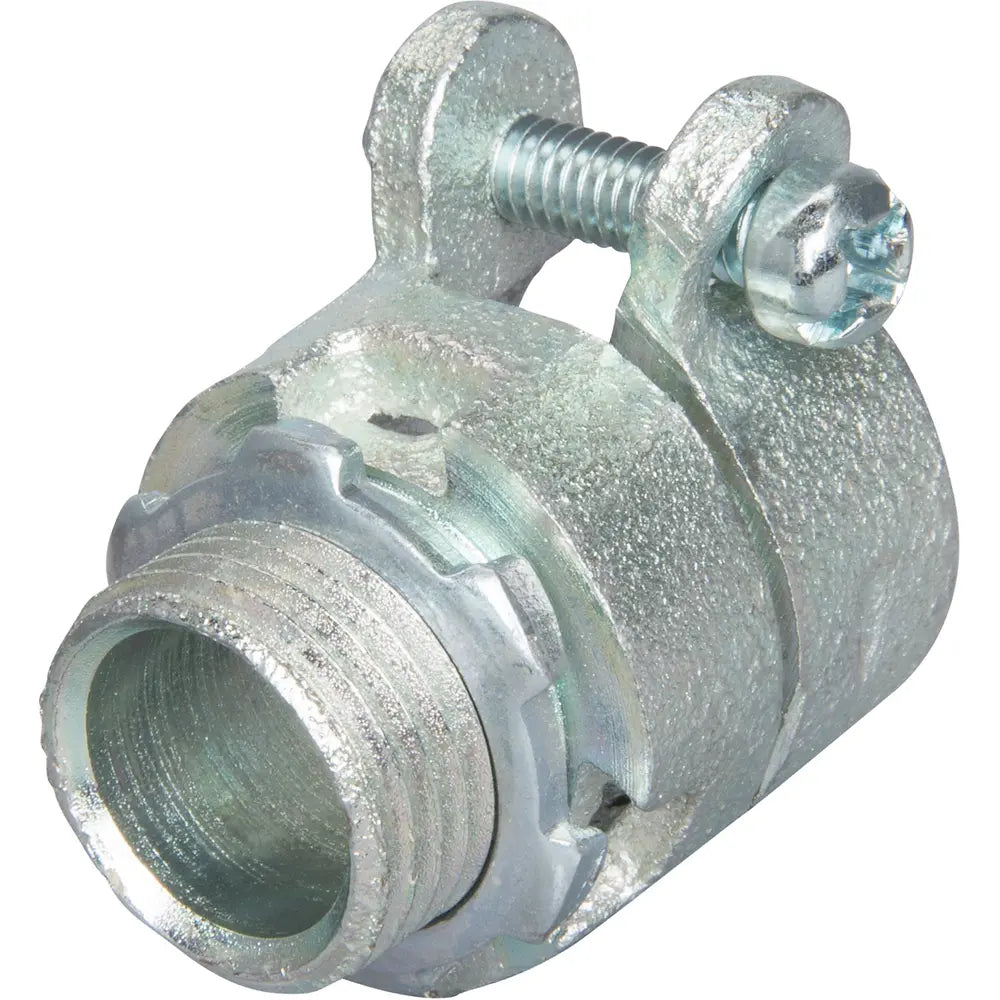

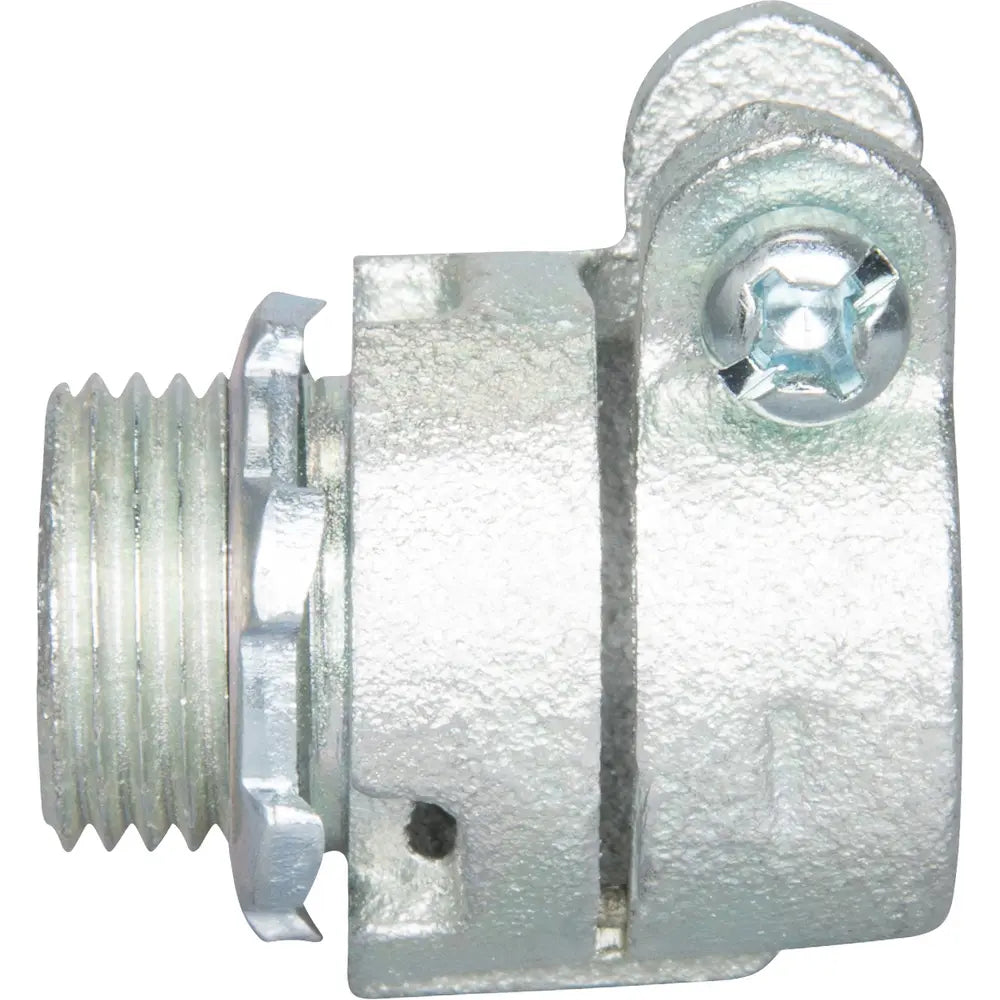

Topaz 151M bx-flex connector, straight, squeeze type, malleable iron 1/2 inches

Product Description

The Topaz 151M BX-Flex Connector is for indoor use in dry locations to connect flexible metallic conduit and steel AC cable to a steel outlet box, load center, or other metal enclosure. Fabricated from high-grade malleable iron with a zinc finish. Squeeze-type assembly available for conduit sizes between 3/8" to 4".

• Connects flexible metal conduit or armored cable to outlet box, load center, or other metal enclosures
• Made from high-grade malleable iron with a zinc finish
• For indoor use in dry locations

Product Highlights

The Topaz 151M BX-Flex Connector securely connects flexible metal conduit or armored cable to metal enclosures. It is made from malleable iron with a zinc finish for longevity and safety.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 151M
• Country of Origin: US

Technical Specifications

• Type: Flex Connectors
• Color: Gray
• Width: 0.94 Inches
• Finish: Zinc Plated
• Length: 0.94 Inches
• Material: Malleable Iron
• Standard: UL 514B, UL File Number 0258, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, CSA Certified, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Connection: Screw Clamp
• Insulation: Non-Insulated
• Trade Size: 1/2 in.
• Country of Origin: US
• Brand Name: Topaz
• Brand Part Number: 151M
• Item UPC: 751338111004
• Manufacturer: Topaz
• Manufacturer Part Number: 151M
• Cable Openings: Single
• Installation: Clamp
• Throat: Non-Insulated
• Angle: Straight
• OD Min: 0.78 in.
• OD Max: 0.94 in.
