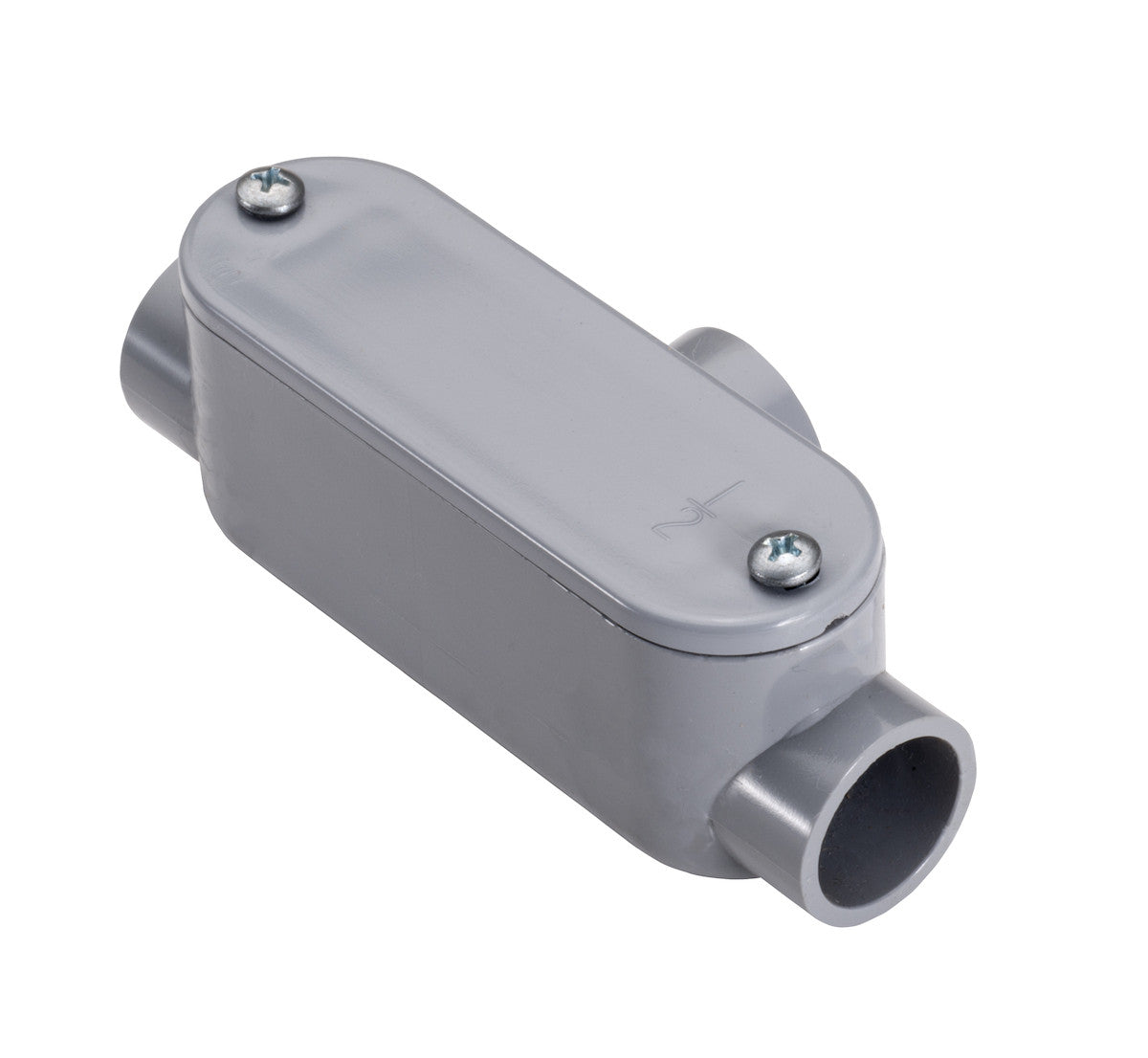

Topaz 1172tz Conduit Body, Type T, PVC, 3/4 inches

Product Description

Topaz 1172TZ Schedule 40 PVC T Type Conduit Bodies, available in 3/4" size, allow 3-way inline access in conduit systems. They enable easy splicing and can correct and change the direction of conduit runs. Lightweight, noncorrosive, and nonconductive PVC construction enables easy installation in small areas.

• Conduit Body, Type T, PVC, 3/4"
• Rectangular shaped conduit body with a removable cover

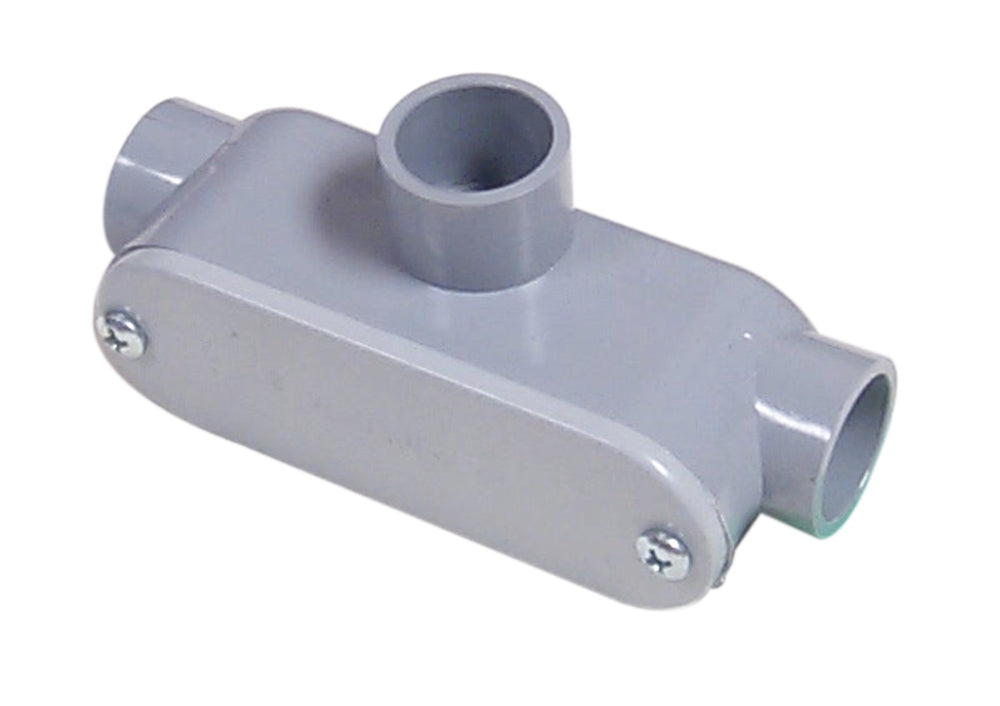

• Conduit body contains three conduit hubs, one in each end wall and one at 90 in the middle of the side wall

Product Highlights

Schedule 40 PVC T Type Conduit Bodies allow 3-way inline access in conduit systems and enable easy splicing.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 1172TZ
• Country of Origin: China

Technical Specifications

• Brand Name: Topaz
• Brand Part Number: 1172TZ
• Item UPC: 751338232310
• Manufacturer: Topaz
• Manufacturer Part Number: 1172TZ
• Our Part#: 1172TZ-TZ
• MFR #: 1172TZ
• Material: PVC
• Size: 3/4 IN
• Type: Type T
• Height: 1.6875 IN
• Label Description: CONDUIT BODIES- T TYPE
• Length: 5.375 IN
• Schedule: 40 PVC
• Size (IN): 3/4" IN
• Standard: UL 514B, UL E170258, US Federal Specification Number A-A-50563, NEMA/ANSI FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D, CSA Certified
• Width: 1.50 IN
• Zoro #: G322816997
